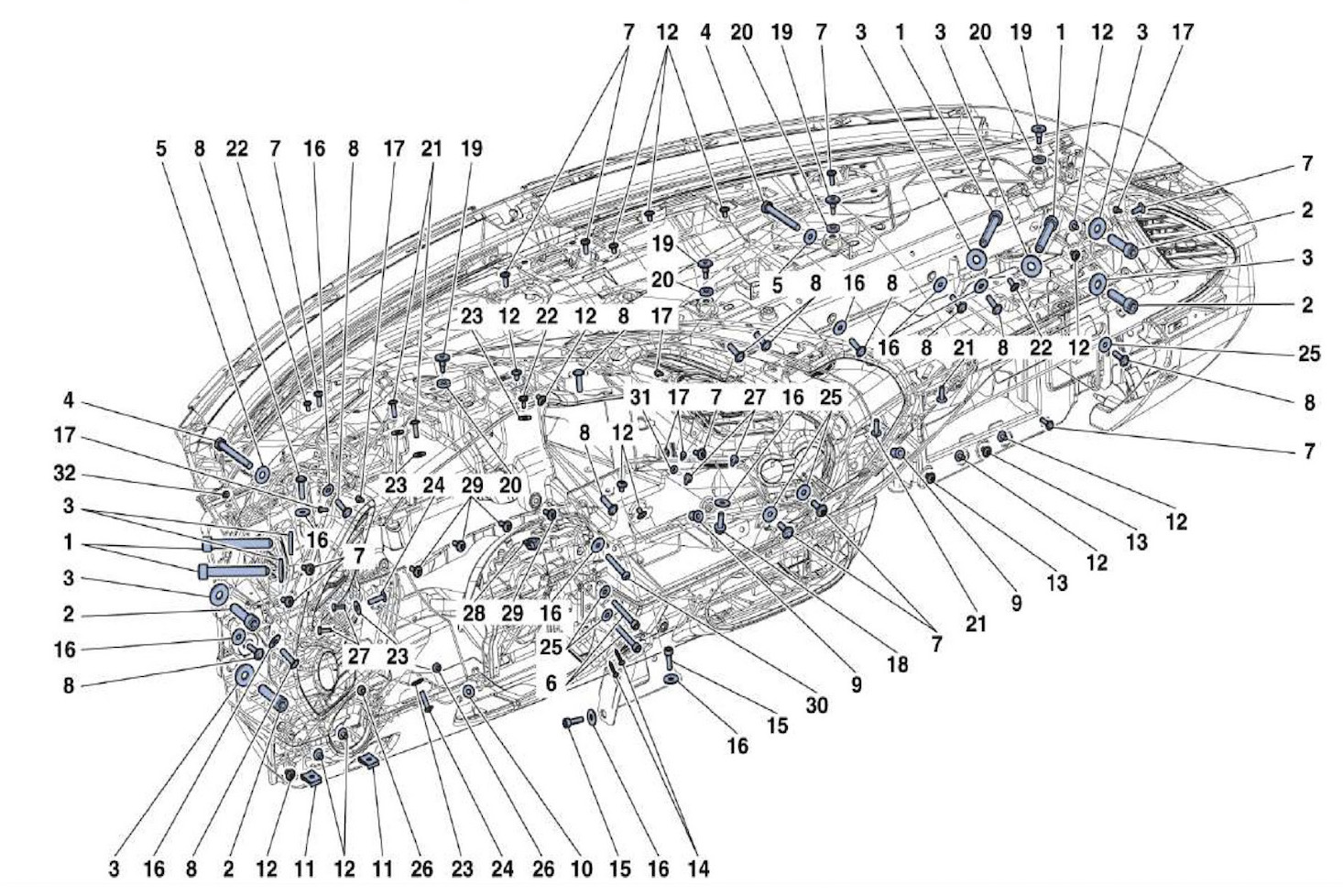

DASHBOARD HARDWARE AND MOUNTING

Location Part # Quantity* Description Price Add To Cart
1 84018500 4 SCREW $5.87
2 84030800 4 SCREW $2.29
3 12626221 8 WASHER Superseded
4 15213834 2 SCREW-M8 X 65- $1.60
5 12625221 2 WASHER Superseded
6 14305924 2 ALLEN SCREW 6X45 Superseded
7 85833700 12 SCREW 5X14-M5 X 14- Unavailable
8 64830600 19 SCREW 6X22-M6 X 22- - WASHER USE 12605374 Unavailable
9 248146 3 RIVET 6X16MM $1.26
10 12646624 5 WASHER 6.15-15X1.5 Unavailable
11 66927700 2 BRACKET WITH COLLAR Unavailable
12 85691900 20 SCREW 5X8-M5 X 8- Unavailable
13 85692000 4 SCREW 5X10-M5 X 10- Unavailable
14 15687375 2 SELF TAPPING SCREW 3.5X16 Unavailable
15 14305324 2 SCREW 6X20MM-M6 X 20- Unavailable
16 12643701 12 FLAT WASHER Superseded
17 81912400 0 SCREW 3.5X10-NOT FOR CARBON SATELLITE PODS- Unavailable
17 14418074 0 SCREW 3X8-APPLICABLE FOR CARBON SATELLITE PODS- Unavailable
17 82464100 0 SCREW 3X12-APPLICABLE FOR CARBON SATELLITE PODS- Unavailable
17 14418131 0 SCREW 3X10-APPLICABLE FOR CARBON SATELLITE PODS- Unavailable
18 16286124 1 SCREW 6X20-M6 X 20- Unavailable
19 267559 7 SCREW-M5 X 19- $7.59
20 86839000 7 RUBBER WASHER $1.30
21 85833900 5 SCREW-M5 X 16- Unavailable
22 85692200 3 SCREW 5X12-M5 X 12- Unavailable
23 13577701 7 WASHER Unavailable
24 85692300 2 SCREW 5X20-M5 X 20- Unavailable
25 12644401 5 WASHER Superseded
26 86912700 2 SCREW-M4 X 6- Unavailable
27 13272011 4 SCREW-M4 X 12- $0.90
28 68002000 1 RUBBER PAD $4.30
29 81917100 4 SCREW-M5 X 14- Unavailable
30 65071900 1 SCREW-M6 X 40- -NO LONGER SUPPLIED- -REPLACED BY 87627200- - 6 X 40MM Superseded
30 87627200 1 SCREW-M6 X 40- Unavailable
31 12639901 0 WASHER-APPLICABLE FOR CARBON SATELLITE PODS- $0.90
32 15958077 1 SCREW $4.00

* Quantity shown indicates the number of pieces used in the diagram.
