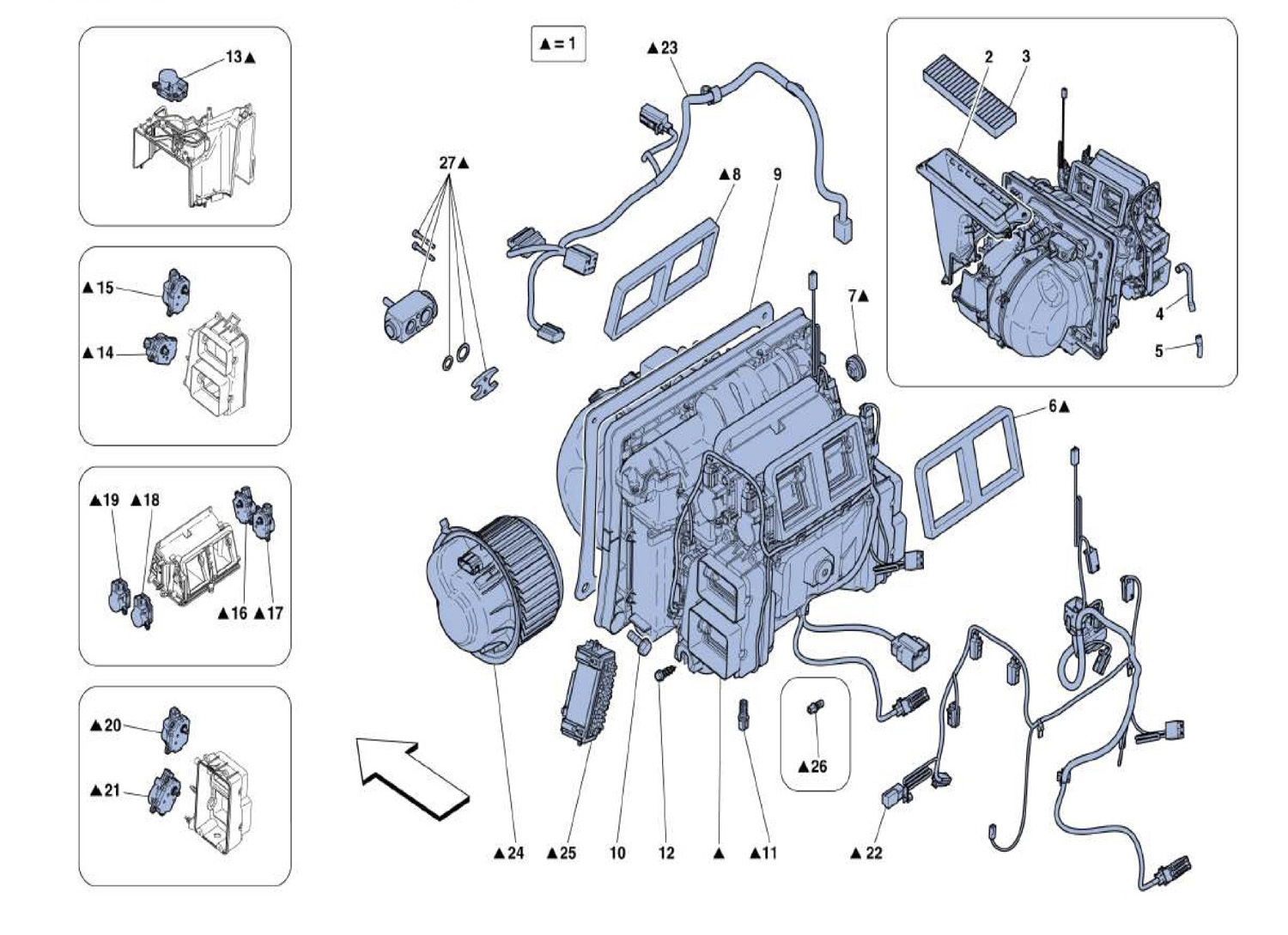

EVAPORATOR SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 87294600 1 COMPLETE EVAPORATOR $4,891.77
2 83594700 1 MOBILE DUCT -Not for GD- $122.49
2 84085600 1 MOBILE DUCT -Applicable for GD- $171.78
3 82295100 1 ANTI-POLLEN FILTER $66.56
4 83244100 1 UPPER DRAIN PIPE -Not for GD- $25.94
4 83953500 1 UPPER DRAIN PIPE -Applicable for GD- $44.48
5 83304600 1 LOWER DRAIN PIPE $26.59
6 82046800 1 FRONT FILLER FOAM $241.55
7 68389800 0 RUBBER PAD $7.51
8 82046600 1 DEFROSTER DUCT FILLER FOAM $187.98
9 83982800 1 GASKET $34.67
10 16287127 4 SCREW Unavailable
11 68390100 2 AIR SENSOR $16.06
12 62771900 0 SCREW Unavailable
13 264869 1 LIN BUS RECIRCULATION ACTUATOR $199.43
14 82047300 1 ACTUATOR $227.34
15 82047400 1 ACTUATOR $227.34
16 82047500 1 ACTUATOR $227.34
17 82047600 1 ACTUATOR $227.34
18 82047700 1 ACTUATOR $243.58
19 82047900 1 ACTUATOR $227.34
20 82048100 1 ACTUATOR $227.34
21 82048200 1 ACTUATOR $227.34
22 324219 1 AC WIRING HARNESS -Passenger compartment side $985.57
23 264879 1 AC WIRING HARNESS -Engine side- $298.19
24 264880 1 FAN $914.49
25 264881 1 SPEED REGULATOR $465.86
26 83749200 1 EVAPORATOR SENSOR $215.77
27 87390400 1 TXV SERVICE KIT $603.90

* Quantity shown indicates the number of pieces used in the diagram.
