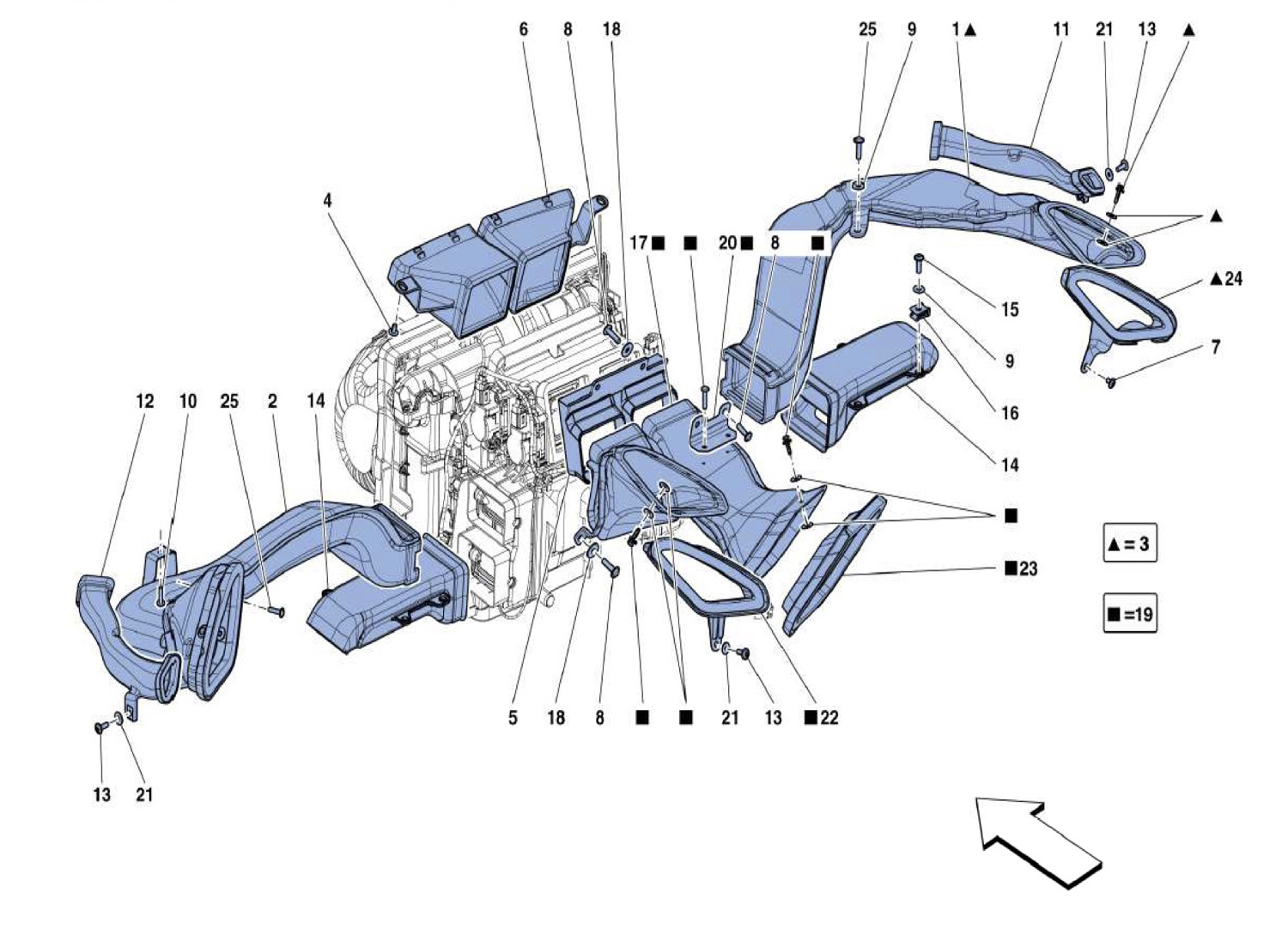

DASHBOARD AIR DUCTING

Location Part # Quantity* Description Price Add To Cart
1 86180300 1 RH PASSENGER SIDE VENT DUCT -After depletion Unavailable
2 86179700 1 COMPL. LH DRIVER SIDE VENT DUCT -Not for GD- $207.34
2 87023000 1 COMPL. RH DRIVER SIDE AIR VENT DUCT -Applicable for GD- $215.42
3 86180200 1 COMPL. RH PASSENGER VENTILATION DUCT -Not for GD- $143.62
3 87028400 1 COMPL. LH PASSENGER VENTILATION DUCT -Applicable for GD- $161.57
4 85692000 2 SCREW -M5 X 10- Unavailable
5 83127400 1 CENTRE AIR DUCT CONNECTOR $13.62
6 86166200 1 HVAC DEFROSTER CONNECTOR -Not for GD- $91.55
6 87030200 1 HVAC DEFROSTER CONNECTOR -Applicable for GD- $91.55
7 85691900 1 SCREW -M5 X 8- Unavailable
8 64830600 7 SCREW -M6 X 22- Unavailable
9 12644401 5 WASHER Superseded
10 85833900 1 SCREW -M5 X 16- Unavailable
11 86175500 1 COMPL. RH DEMISTER DUCT -Not for GD- $84.39
11 87031300 1 COMPL. LH DEMISTER DUCT -Applicable for GD- $84.39
12 86170700 1 COMPL. LH DEMISTER DUCT -Not for GD- $84.39
12 87030600 1 RH DEMISTER DUCT COMPL. -Applicable for GD- $84.39
13 85833700 3 SCREW -M5 X 14- -No longer supplied- -Replaced by 85692000- Unavailable
13 85692000 3 SCREW -M5 X 10- Unavailable
14 84497100 2 FOOTWELL DUCT $63.78
15 65377400 4 SCREW -M6 X 18- Superseded
16 62766300 4 CLIP Unavailable
17 86178500 1 RH DIVER SIDE / LH PASSENGER SIDE VENT DUCT -After depletion Unavailable
18 12643701 7 WASHER Superseded
19 86178400 1 COMPL. RH DRIVER LH PASSENGER VENTILATION DUCT -Not for GD- $166.99
19 87023900 1 COMPL. RH DRIVER SIDE/LH PASSENGER SIDE AIR VENT DUCT -Applicable for GD- $197.46
20 86178200 1 FASTENER BRACKET FOR LH PASSENGER SIDE VENT DUCT -After depletion order compl. ref. 19- -Applicable until depletion- Unavailable
21 12646624 3 WASHER Unavailable
22 86949200 1 AIR DUCT FASTENER SURROUND -Applicable until depletion- $11.22
23 86949300 1 AIR DUCT FASTENER SURROUND -Applicable until depletion- $11.67
24 86949400 1 AIR DUCT FASTENER SURROUND -Applicable until depletion- $11.67
25 16286124 2 SCREW -M6 X 20- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
