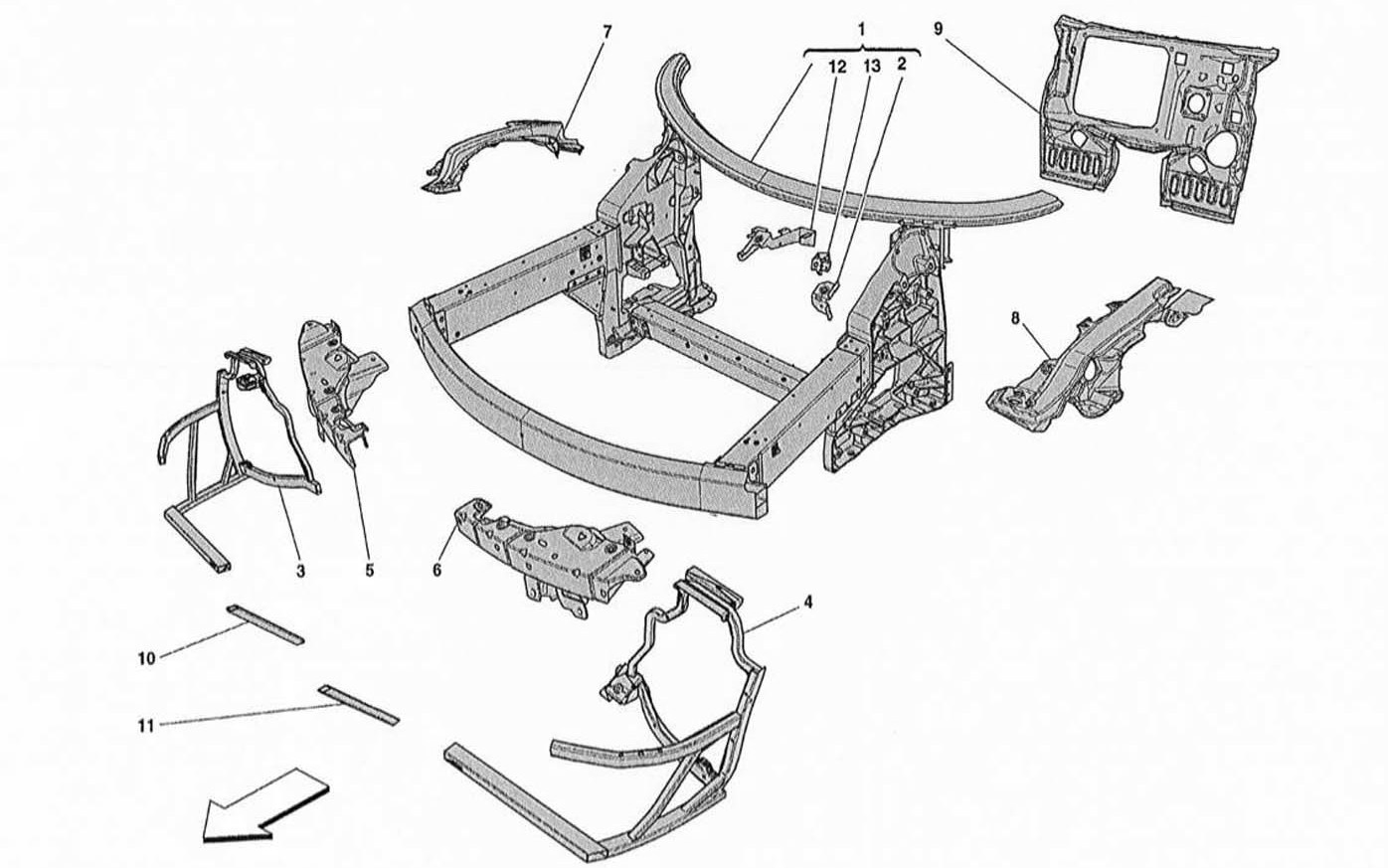

FRAME - COMPLETE FRONT PART STRUCTURES AND PLATES

Go to Split View

FRAME - COMPLETE FRONT PART STRUCTURES AND PLATES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 985285733 *Qty: 1 FRONT SUBFRAME -Not available for sale- -Not for USA Unavailable
Location: 1 Prev | Next Part: 985285733 *Qty: 1 FRONT SUBFRAME -Not available for sale- -Applicable for USA Unavailable
Location: 1 Prev | Next Part: 985288636 *Qty: 1 FRONT SUBFRAME -Not available for sale- -Applicable for RHD- Unavailable
Location: 2 Prev | Next Part: 256207 *Qty: 1 WINDSCREEN WIPER MOTOR MOUNTING BRACKET -Not for RHD- $32.91
Location: 2 Prev | Next Part: 263064 *Qty: 1 WINDSCREEN WIPER MOTOR MOUNTING BRACKET -Applicable for RHD- $32.91
Location: 3 Prev | Next Part: 82520600 *Qty: 1 RH FRONT LATERAL TRELLIS $635.40
Location: 4 Prev | Next Part: 82520800 *Qty: 1 LH FRONT LATERAL TRELLIS Unavailable
Location: 5 Prev | Next Part: 82518700 *Qty: 1 RH BUMPER FASTENER BRACKET $272.92
Location: 6 Prev | Next Part: 82518800 *Qty: 1 LH BUMPER FASTENER BRACKET $272.92
Location: 7 Prev | Next Part: 83821400 *Qty: 1 RH FENDER MOUNTING Unavailable
Location: 8 Prev | Next Part: 83824300 *Qty: 1 LH FENDER MOUNTING Unavailable
Location: 9 Prev | Next Part: 256179 *Qty: 1 FRONT FIREWALL -Not for RHD- $834.97
Location: 9 Prev | Next Part: 262612 *Qty: 1 FRONT FIREWALL -Applicable for RHD- $918.17
Location: 10 Prev | Next Part: 83283100 *Qty: 1 RH TRELLIS CONNECTION Unavailable
Location: 11 Prev | Next Part: 83283200 *Qty: 1 LH TRELLIS CONNECTION $62.31
Location: 12 Prev | Next Part: 272196 *Qty: 1 WINDSCREEN WIPER SPINDLE BRACKET -Not for RHD- $47.35
Location: 12 Prev | Next Part: 274092 *Qty: 1 WINDSCREEN WIPER SPINDLE BRACKET -Applicable for RHD- $49.85
Location: 13 Prev | Next Part: 257195 *Qty: 1 LH BRACKET Unavailable
Location: 13 Prev | Next Part: 257198 *Qty: 1 RH BRACKET Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
