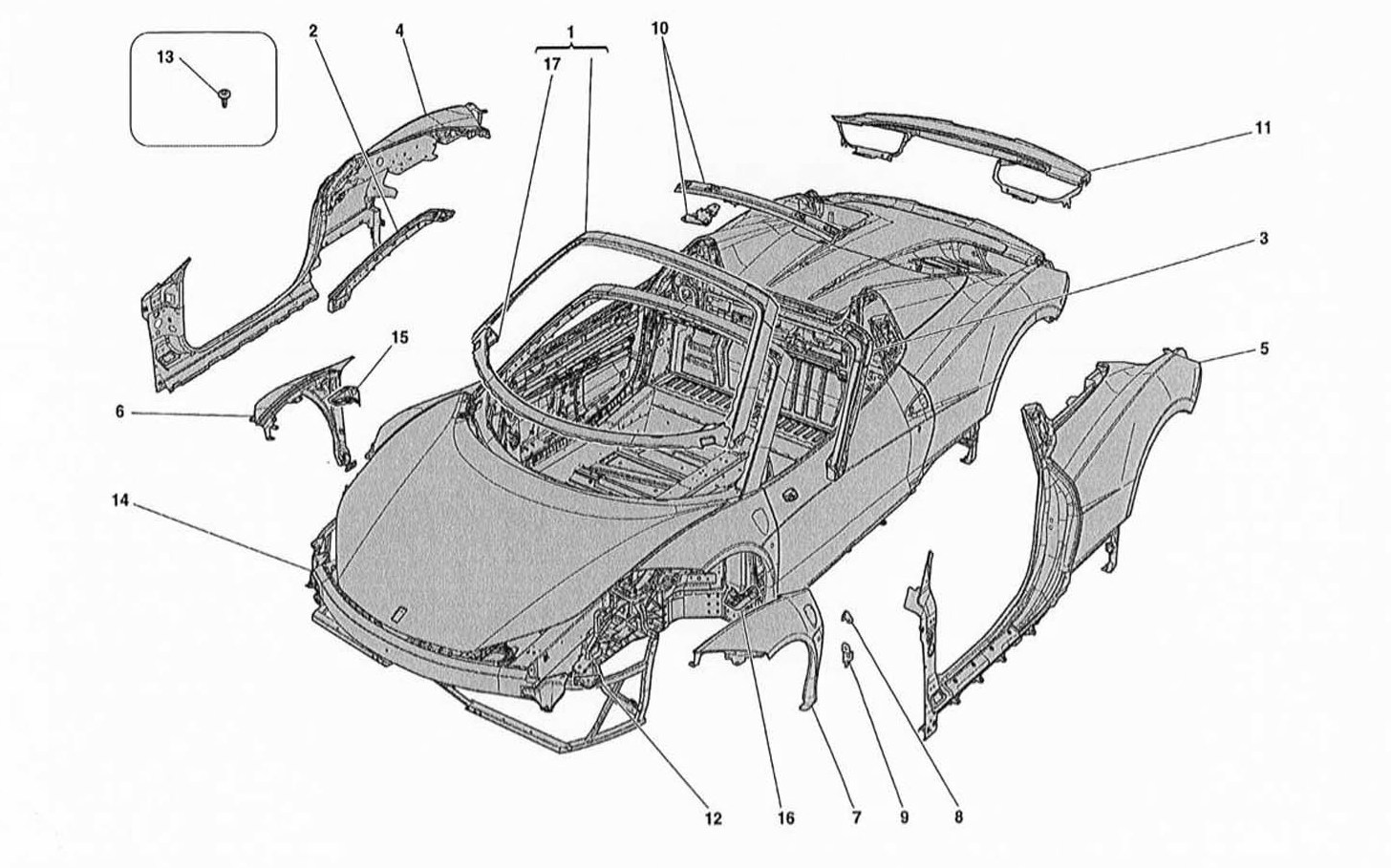

BODY - OUTER TRIMS

Go to Split View

BODY - OUTER TRIMS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 82164111 *Qty: 1 WINDSCREEN PERIMETER $2,616.79
Location: 2 Prev | Next Part: 264618 *Qty: 1 RH UPPER PILLAR Call
Location: 3 Prev | Next Part: 264617 *Qty: 1 LH UPPER PILLAR Call
Location: 4 Prev | Next Part: 84325811 *Qty: 1 RH FLANK-Not for USA Call
Location: 4 Prev | Next Part: 84325811 *Qty: 1 RH FLANK -Not for USA Call
Location: 4 Prev | Next Part: 82149511 *Qty: 1 RH FLANK -Applicable for USA $7,877.89
Location: 4 Prev | Next Part: 82149511 *Qty: 1 RH FLANK-Applicable for USA $7,877.89
Location: 5 Prev | Next Part: 84326311 *Qty: 1 LH FLANK -Not for USA Call
Location: 5 Prev | Next Part: 84326311 *Qty: 1 LH FLANK -Not for USA Call
Location: 5 Prev | Next Part: 82155511 *Qty: 1 LH FLANK-Applicable for USA $7,877.89
Location: 5 Prev | Next Part: 82155511 *Qty: 1 LH FLANK-Applicable for USA $7,877.89
Location: 6 Prev | Next Part: 83811011 *Qty: 1 FRONT RH FENDER $2,381.27
Location: 6 Prev | Next Part: 84082311 *Qty: 1 FRONT RH FENDER -Shield badge- Call
Location: 7 Prev | Next Part: 83813711 *Qty: 1 FRONT LH FENDER $2,381.27
Location: 7 Prev | Next Part: 84082011 *Qty: 1 FRONT LH FENDER -Shield badge- Call
Location: 8 Prev | Next Part: 81543000 *Qty: 1 UPPER LH BRACKET $6.37
Location: 8 Prev | Next Part: 81542900 *Qty: 1 UPPER RH BRACKET $6.37
Location: 9 Prev | Next Part: 81543200 *Qty: 1 LH LOWER FASTENER BRACKET FOR FRONT FENDER -No longer supplied- Call
Location: 9 Prev | Next Part: 81543100 *Qty: 1 RH LOWER FASTENER BRACKET FOR FRONT FENDER -No longer supplied- Call
Location: 10 Prev | Next Part: 82164800 *Qty: 1 UPPER WINDSCREEN CROSS-MEMBER Call
Location: 11 Prev | Next Part: 82998811 *Qty: 1 REAR SPOILER $3,987.48
Location: 12 Prev | Next Part: 82534100 *Qty: 1 LH HEADLIGHT FASTENER BRACKET Call
Location: 12 Prev | Next Part: 82534000 *Qty: 1 RH HEADLIGHT FASTENER BRACKET Call
Location: 13 Prev | Next Part: 81126500 *Qty: 0 RIVET -3.9x5.5- $0.90
Location: 13 Prev | Next Part: 81126600 *Qty: 0 RIVET -3.9x7- $0.90
Location: 13 Prev | Next Part: 81126700 *Qty: 0 RIVET -3.9x7- $0.90
Location: 13 Prev | Next Part: 81126900 *Qty: 0 RIVET-4.8x7.5- $0.90
Location: 13 Prev | Next Part: 82398700 *Qty: 0 RIVET -4.8 x 9- $0.90
Location: 14 Prev | Next Part: -0 *Qty: 1 COMPLETE BODYSHELL -Only to specific order by fax or e-mail Call
Location: 15 Prev | Next Part: 83852000 *Qty: 1 RH FRONT FENDER REINFORCEMENT $374.43
Location: 16 Prev | Next Part: 83852100 *Qty: 1 LH FRONT FENDER REINFORCEMENT $374.43
Location: 17 Prev | Next Part: 83740411 *Qty: 1 WINDSCREEN CROSS-MEMBER UPPER COVER $436.14

* Quantity shown indicates the number of pieces used in the diagram.
