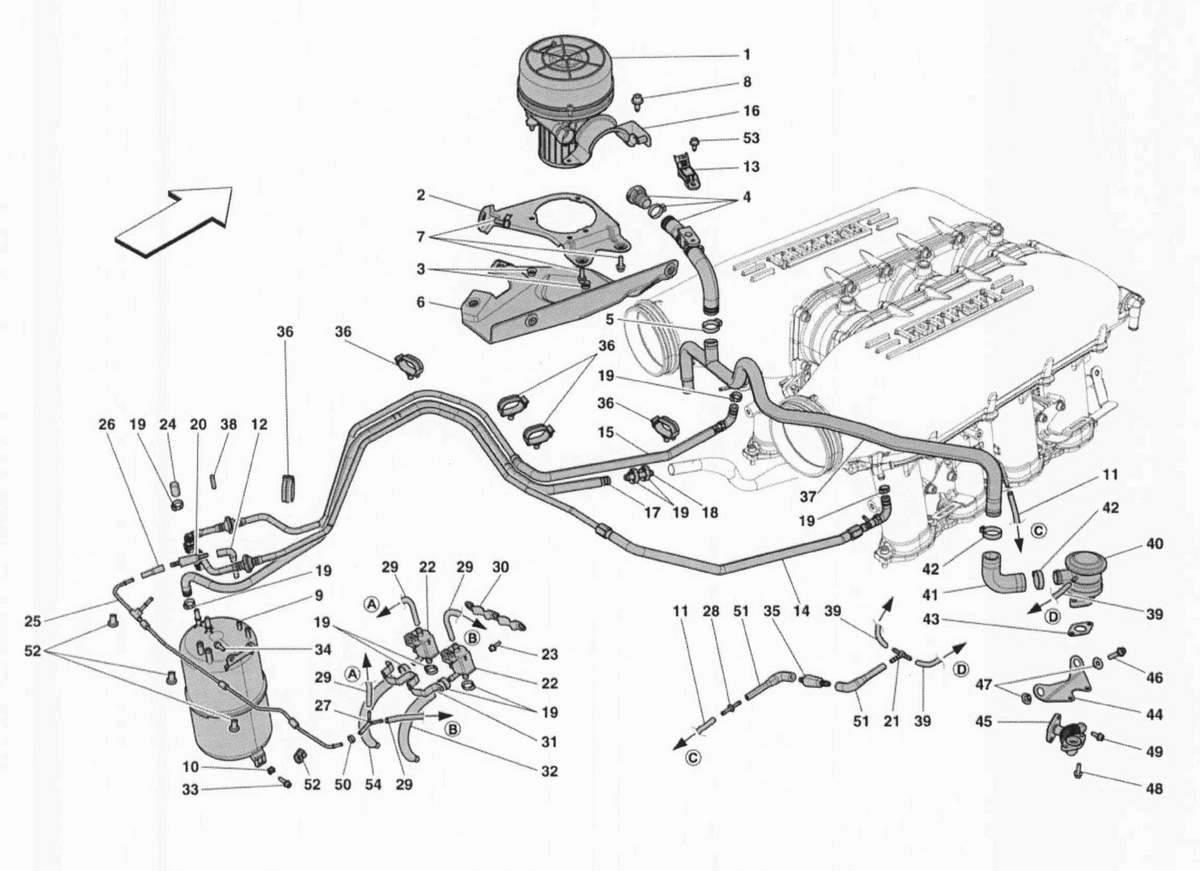

SECONDARY AIR PUMP

Go to Split View

SECONDARY AIR PUMP

Location Part # Quantity* Description Price Add To Cart
1 247795 1 SECONDARY AIR PUMP $771.60
2 251773 1 STAFFA $33.07
3 14040611 3 NUT $2.25
4 297245 1 MANICOTTO Unavailable
5 296779 1 COLLARE $8.81
6 258291 1 RIPARO CALORE SX. $165.32
7 231617 3 SCREW -M6 X18- Unavailable
8 11566224 2 SCREW Unavailable
9 195645 1 SERBATOIO PERACCUMULO DEPRESSIONE Unavailable
10 60758600 1 NUT Unavailable
11 163094 1 RUBBER HOSE $16.89
12 295677 1 RUBBER HOSE Unavailable
13 282849 1 SENSORE DI PRESSIONE Unavailable
14 296233 1 HOSE DEPRESSIONE DX. AL MOTORE Unavailable
15 296234 1 HOSE DEPRESSIONE SX. AL MOTORE Unavailable
16 265726 1 STAFFA PROTEZIONE $12.57
17 296235 1 HOSE DA SERBATOIO A RACCORDO Unavailable
18 251422 1 RACCORDO $15.20
19 13434670 7 COLLARE -D. 16.2- Unavailable
19 10716370 3 COLLARE -D. 18- $1.10
20 295349 1 VALVOLA RITENUTA DEPRESSIONE Unavailable
21 257691 1 TREVIE $1.91
22 178309 2 ELETTROVALVOLA $103.71
23 256323 3 SCREW Unavailable
24 248008 1 TAPPO $14.13
25 296238 1 HOSE ALUMINUM Unavailable
26 295441 1 RUBBER HOSE Unavailable
27 260248 1 HOSE 3 VIE $90.21
28 199696 1 RACCORDO $13.34
29 260272 2 HOSE BENT Unavailable
30 260244 1 STAFFA $10.41
31 260246 1 STAFFA $6.96
32 301192 1 HOSE Unavailable
32 301193 1 HOSE Unavailable
33 11570024 1 SCREW Unavailable
34 231617 2 SCREW -M6 X18- Unavailable
35 295349 1 VALVOLA RITENUTA DEPRESSIONE Unavailable
36 149773 2 MOLLETTA -Per tubi aria su telaio- Unavailable
36 263772 3 MOLLETTA -Per tubi attuazione su rinforzo sx.- $1.81
37 297266 1 HOSE ARIA SECOND ARIA Unavailable
38 225098 1 TAPPO $1.62
39 141235 2 RUBBER HOSE $10.21
40 284235 2 VALVOLA ARIA SECOND ARIA $256.63
41 183717 2 MANICOTTO $345.10
42 13432970 4 COLLARE $1.77
43 186781 4 GASKET $5.40
44 245816 1 STAFFA FISSAGGIO VALVOLA DX. $14.56
44 245815 1 STAFFA FISSAGGIO VALVOLA SX. $17.86
45 263794 1 HOSE DA VALVOLA ARIA A COLLETTORE DX. $199.91
45 263795 1 HOSE DA VALVOLA ARIA A COLLETTORE SX. $199.91
46 231620 4 SCREW -M6 X 25- Unavailable
47 183898 8 BOCCOLA FLANGIATA $3.51
48 231618 4 SCREW -M6 X 20- Unavailable
49 231616 4 SCREW-M6X14- Unavailable
50 241986 1 COLLARE $1.20
51 295677 2 RUBBER HOSE Unavailable
52 249556 4 MOLLETTA Unavailable
53 233600 1 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
