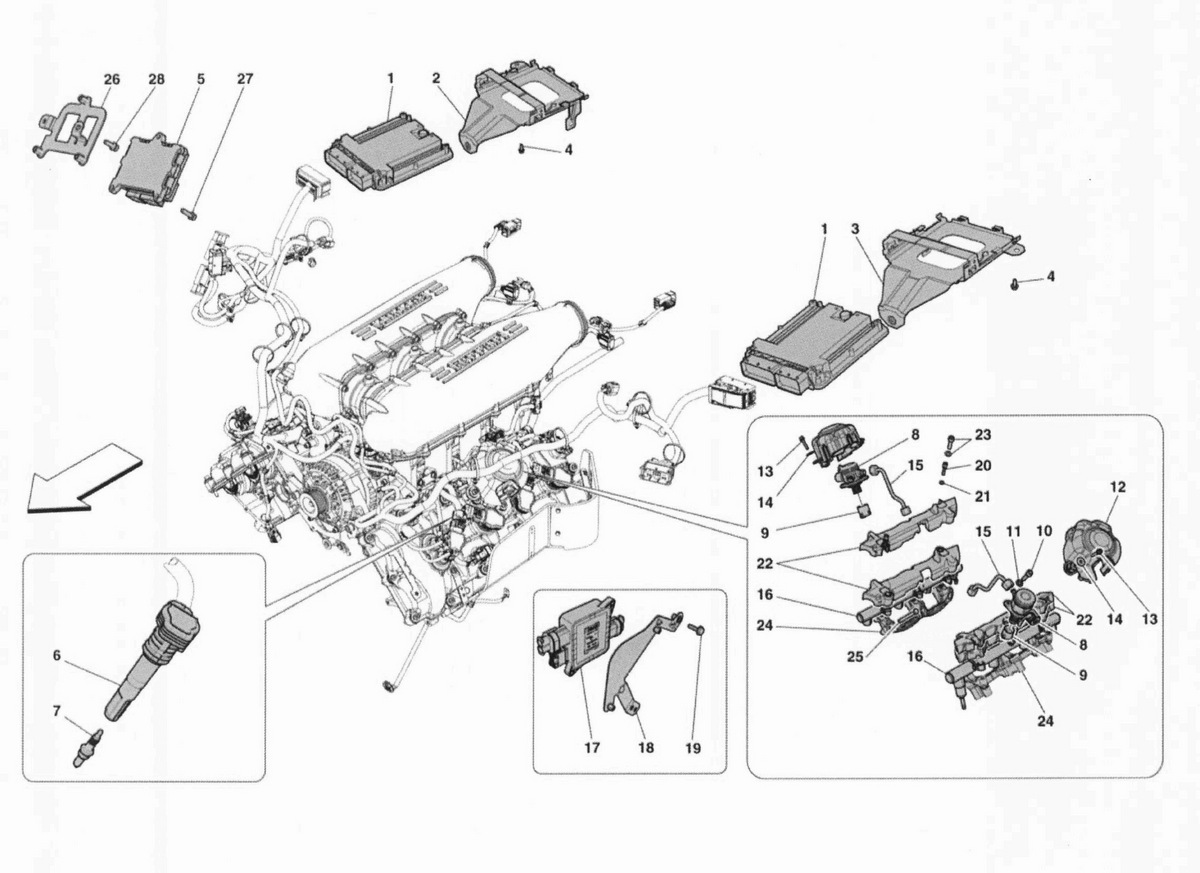

INJECTION DEVICE - IGNITION

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 238263 *Qty: 2 CENTRALINA ACCENSIONE -Non programmata- $2,758.90
Location: 2 Prev | Next Part: 261838 *Qty: 1 STAFFADX. $85.98
Location: 3 Prev | Next Part: 261839 *Qty: 1 STAFFASX. $85.98
Location: 4 Prev | Next Part: 231616 *Qty: 6 SCREW -M6 X14- $0.90
Location: 5 Prev | Next Part: 289064 *Qty: 1 CENTRALINAIONIZZANTI -Grezza- $1,545.15
Location: 6 Prev | Next Part: 290850 *Qty: 8 BOBINA DI ACCENSIONE $146.41
Location: 7 Prev | Next Part: 254771 *Qty: 8 CANDELA ACCENSIONE $36.74
Location: 8 Prev | Next Part: 252704 *Qty: 2 FUEL PUMP Unavailable
Location: 9 Prev | Next Part: 270601 *Qty: 2 BICCHIERINO $60.96
Location: 10 Prev | Next Part: 14305334 *Qty: 4 SCREW $0.90
Location: 11 Prev | Next Part: 12639724 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 247537 *Qty: 2 COPERTURA ACUSTICA $87.24
Location: 13 Prev | Next Part: 231621 *Qty: 4 SCREW -M6 X 30- $0.90
Location: 14 Prev | Next Part: 12647701 *Qty: 4 WASHER $0.90
Location: 15 Prev | Next Part: 247674 *Qty: 2 HOSE $193.76
Location: 16 Prev | Next Part: 250777 *Qty: 2 HOSEINIETTORICPL. $3,312.87
Location: 17 Prev | Next Part: 264935 *Qty: 1 COMANDO POMPE ALIMENTAZIONE $404.97
Location: 18 Prev | Next Part: 278268 *Qty: 1 STAFFA FISSAGGIO CENTRALINA Unavailable
Location: 19 Prev | Next Part: 11625714 *Qty: 3 SCREW-M6X16- $0.90
Location: 20 Prev | Next Part: 214412 *Qty: 4 COLONNETTA $11.70
Location: 21 Prev | Next Part: 11194374 *Qty: 4 WASHER $0.90
Location: 22 Prev | Next Part: 256322 *Qty: 2 COPERTURAINIETTORI $74.77
Location: 23 Prev | Next Part: 231618 *Qty: 4 SCREW -M6 X 20- $0.90
Location: 24 Prev | Next Part: 239946 *Qty: 2 SUPPORTO FLAUTO BENZINA $110.14
Location: 25 Prev | Next Part: 231624 *Qty: 12 SCREW-M6X45- $0.90
Location: 26 Prev | Next Part: 293226 *Qty: 1 STAFFA Unavailable
Location: 27 Prev | Next Part: 231619 *Qty: 3 SCREW -M6 X 22- $0.90
Location: 28 Prev | Next Part: 231617 *Qty: 2 SCREW-M6X18- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
