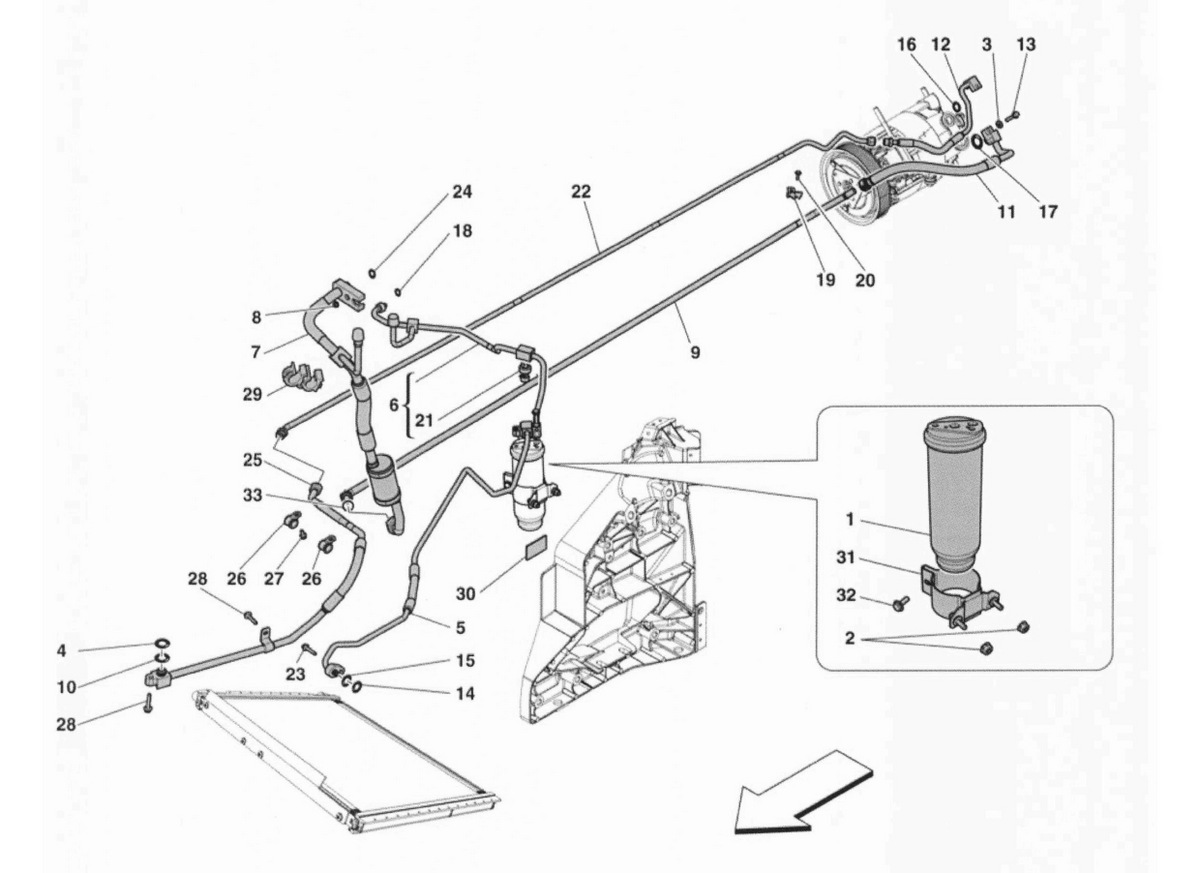

HVAC SYSTEM – FREON

Go to Split View

HVAC SYSTEM – FREON

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67085100 *Qty: 1 FILTRO $73.92
Location: 2 Prev | Next Part: 14040611 *Qty: 2 NUT $0.90
Location: 3 Prev | Next Part: 11198074 *Qty: 1 WASHER $0.90
Location: 4 Prev | Next Part: 68392700 *Qty: 1 GASKET O.R. $1.80
Location: 5 Prev | Next Part: 82924000 *Qty: 1 HOSE DA CONDENSATORE A DISIDRATATORE $218.95
Location: 6 Prev | Next Part: 85075800 *Qty: 1 HOSE FILTRO-HVAC $432.77
Location: 7 Prev | Next Part: 83193900 *Qty: 1 HOSE HVAC-SOTTOPIANALE $438.62
Location: 8 Prev | Next Part: 14040711 *Qty: 1 NUT $0.90
Location: 9 Prev | Next Part: 83194000 *Qty: 1 HOSE RITORNO GAS $208.98
Location: 10 Prev | Next Part: 66309700 *Qty: 1 GASKET O.R. $7.20
Location: 11 Prev | Next Part: 82890400 *Qty: 1 HOSE DA SOTTO PIANALE $258.22
Location: 12 Prev | Next Part: 83330500 *Qty: 1 HOSE DA COMPRESSORE $208.75
Location: 13 Prev | Next Part: 14306724 *Qty: 1 SCREW $0.90
Location: 14 Prev | Next Part: 68392100 *Qty: 1 GASKET O.R. $3.53
Location: 15 Prev | Next Part: 68392000 *Qty: 1 GASKET O.R. $3.53
Location: 16 Prev | Next Part: 67085400 *Qty: 1 GASKET O.R. $16.38
Location: 17 Prev | Next Part: 67085300 *Qty: 1 GASKET O.R. $16.38
Location: 18 Prev | Next Part: 82068300 *Qty: 1 GASKET O.R. $27.10
Location: 19 Prev | Next Part: 82949000 *Qty: 1 STAFFA $10.72
Location: 20 Prev | Next Part: 11612726 *Qty: 0 SCREW $0.90
Location: 21 Prev | Next Part: 80552400 *Qty: 0 TRASDUTTORE DI PRESSIONE $84.69
Location: 22 Prev | Next Part: 82913700 *Qty: 1 HOSE MANDATA SOTTOPIANALE GAS A CONDENSATORE $161.37
Location: 23 Prev | Next Part: 13837017 *Qty: 2 SCREW $4.37
Location: 24 Prev | Next Part: 82068100 *Qty: 1 GASKET O.R Call
Location: 25 Prev | Next Part: 82913600 *Qty: 1 HOSE MANDATA GAS A CONDENSATORE $218.47
Location: 26 Prev | Next Part: 10441490 *Qty: 2 STAFFETTA CON GUAINA $0.90
Location: 27 Prev | Next Part: 231616 *Qty: 2 SCREW-M6X14- $0.90
Location: 28 Prev | Next Part: 13837017 *Qty: 2 SCREW $4.37
Location: 29 Prev | Next Part: 82329900 *Qty: 2 MOLLETTA $1.14
Location: 30 Prev | Next Part: 255515 *Qty: 1 BUFFER $1.86
Location: 31 Prev | Next Part: 82155900 *Qty: 1 STAFFA FILTRO DISIDRATATORE Call
Location: 32 Prev | Next Part: 11625824 *Qty: 1 SCREW-M6X18- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
