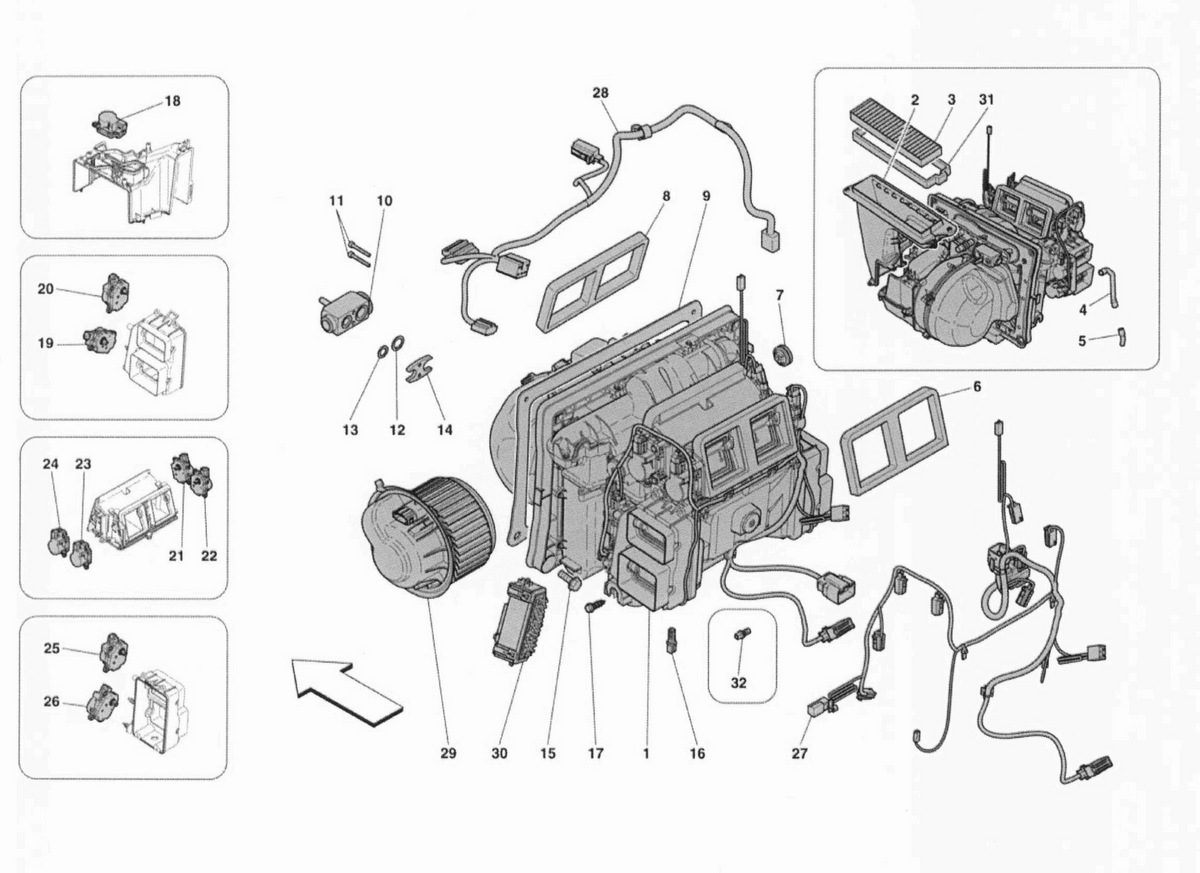

EVAPORATOR UNIT

Go to Split View

EVAPORATOR UNIT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 83856800 *Qty: 1 EVAPORATORE COMPLETO $4,161.54
Location: 2 Prev | Next Part: 83594700 *Qty: 1 CONDOTTO MOBILE $108.29
Location: 3 Prev | Next Part: 82295100 *Qty: 1 FILTRO ANTIPOLLINE $58.74
Location: 4 Prev | Next Part: 83244100 *Qty: 1 HOSE SCARICO UPPER $25.43
Location: 5 Prev | Next Part: 83304600 *Qty: 1 HOSE SCARICO LOWER $26.07
Location: 6 Prev | Next Part: 82046800 *Qty: 1 FUSTELLATO FRONTALE $197.00
Location: 7 Prev | Next Part: 68389800 *Qty: 1 GOMMINO $7.35
Location: 8 Prev | Next Part: 82046600 *Qty: 1 FUSTELLATO PERCONDOITO DEFROSTER $184.28
Location: 9 Prev | Next Part: 83982800 *Qty: 1 GASKET $33.99
Location: 10 Prev | Next Part: 82049300 *Qty: 1 TXV BLOCK Unavailable
Location: 11 Prev | Next Part: 82049500 *Qty: 1 SCREW Unavailable
Location: 12 Prev | Next Part: 82049100 *Qty: 1 GASKET O.R. Unavailable
Location: 13 Prev | Next Part: 82049200 *Qty: 1 GASKET O.R. Unavailable
Location: 14 Prev | Next Part: 82049400 *Qty: 1 PIASTRINO Unavailable
Location: 15 Prev | Next Part: 16287127 *Qty: 4 SCREW Unavailable
Location: 16 Prev | Next Part: 68390100 *Qty: 2 SENSOREARIA $13.48
Location: 17 Prev | Next Part: 62771900 *Qty: 0 SCREW Unavailable
Location: 18 Prev | Next Part: 264869 *Qty: 1 ATTUATORE LIN BUS RICIRCOLO $195.51
Location: 19 Prev | Next Part: 82047300 *Qty: 1 ATTUATORE $177.67
Location: 20 Prev | Next Part: 82047400 *Qty: 1 ATTUATORE $177.67
Location: 21 Prev | Next Part: 82047500 *Qty: 1 ATTUATORE $177.67
Location: 22 Prev | Next Part: 82047600 *Qty: 1 ATTUATORE $177.67
Location: 23 Prev | Next Part: 82047700 *Qty: 1 ATTUATORE $195.51
Location: 24 Prev | Next Part: 82047900 *Qty: 1 ATTUATORE $177.67
Location: 25 Prev | Next Part: 82048100 *Qty: 1 ATTUATORE $177.67
Location: 26 Prev | Next Part: 82048200 *Qty: 1 ATTUATORE $177.67
Location: 27 Prev | Next Part: 280369 *Qty: 1 CABLAGGIO CLIMA -Lato abitacolo- -Valid for HELE- $918.17
Location: 28 Prev | Next Part: 264879 *Qty: 1 CABLAGGIO CLIMA -Lato motore- $292.33
Location: 29 Prev | Next Part: 264880 *Qty: 1 VENTILATORE $806.84
Location: 30 Prev | Next Part: 264881 *Qty: 1 REGOLATORE DI VELOCITA'' $409.06
Location: 31 Prev | Next Part: 83081700 *Qty: 1 FUSTELLATOIMBOCCO DINAMICA Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
