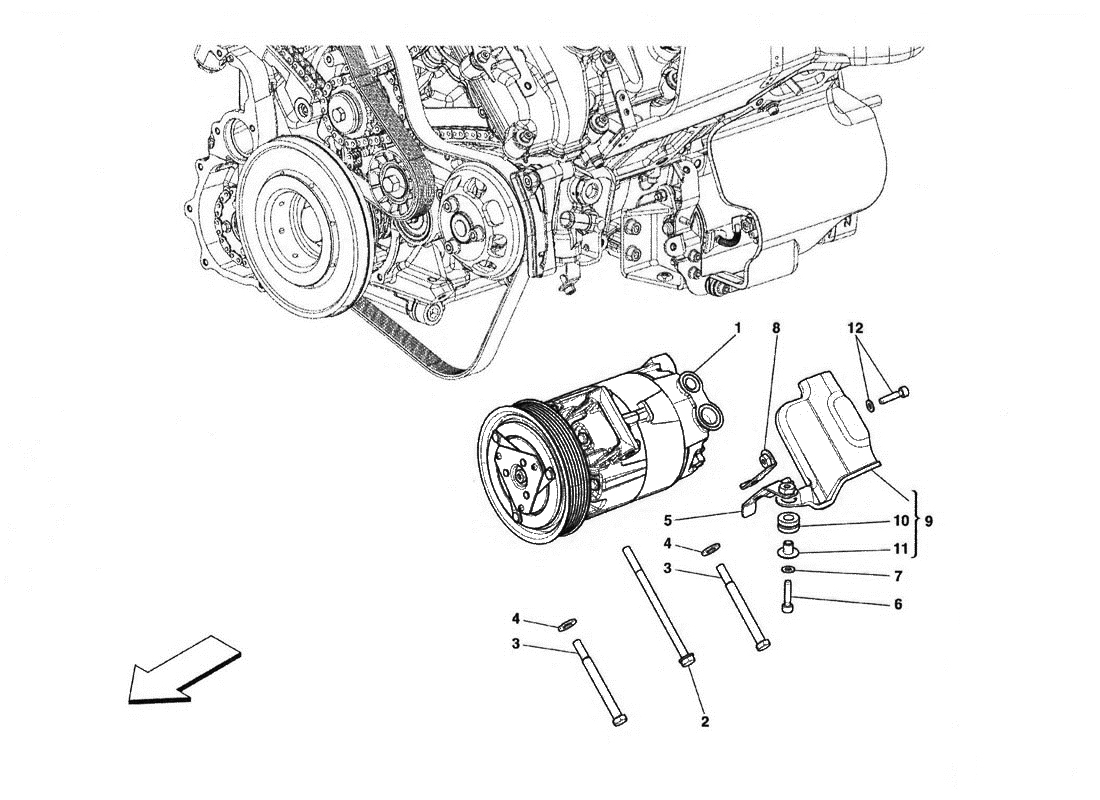

AIR CONDITIONING COMPRESSOR

Go to Split View

AIR CONDITIONING COMPRESSOR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 262946 *Qty: 1 AIR CONDITIONING COMPRESSOR $1,376.02
Location: 2 Prev | Next Part: 16045824 *Qty: 1 SCREW $2.54
Location: 3 Prev | Next Part: 16045024 *Qty: 2 SCREW $0.90
Location: 4 Prev | Next Part: 11193874 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 254072 *Qty: 1 SHIELD MOUNTING BRACKET $15.89
Location: 6 Prev | Next Part: 252462 *Qty: 1 CALIBRATED SCREW $13.00
Location: 7 Prev | Next Part: 11186374 *Qty: 1 WASHER $1.22
Location: 8 Prev | Next Part: 259775 *Qty: 1 REAR SHIELD MOUNTING BRACKET $13.48
Location: 9 Prev | Next Part: 259774 *Qty: 1 HEAT SHIELD Call
Location: 10 Prev | Next Part: 259653 *Qty: 2 GROMMET $2.63
Location: 11 Prev | Next Part: 259654 *Qty: 2 SHIM Call
Location: 12 Prev | Next Part: 231620 *Qty: 2 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
