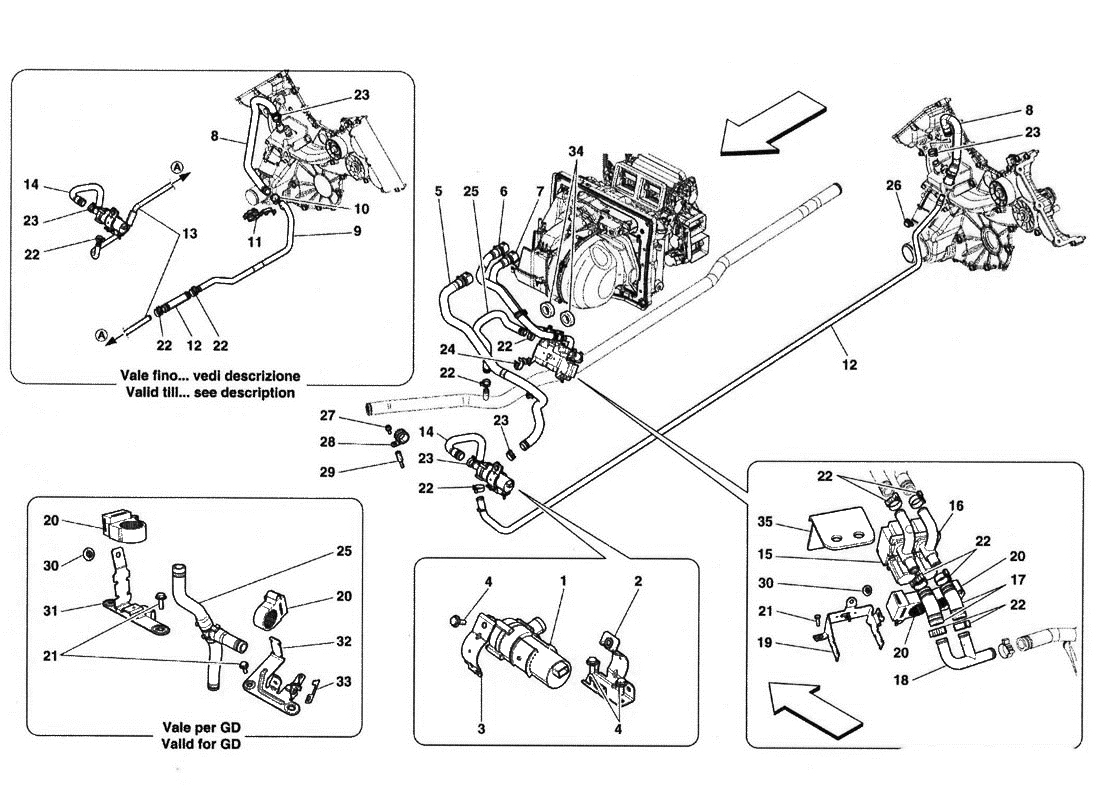

AC SYSTEM-WATER

Go to Split View

AC SYSTEM-WATER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65460300 *Qty: 1 WATER RECIRCULATION PUMP $262.34
Location: 2 Prev | Next Part: 82328900 *Qty: 1 BRACKET $40.68
Location: 3 Prev | Next Part: 82329400 *Qty: 1 CURVED BRACKET $21.79
Location: 4 Prev | Next Part: 11625624 *Qty: 3 SCREW $0.97
Location: 5 Prev | Next Part: 82302800 *Qty: 1 CONNECTOR PIPE -Not for RHD- $98.78
Location: 5 Prev | Next Part: 82887100 *Qty: 1 CONNECTOR PIPE -Applicable for RHD- $194.36
Location: 6 Prev | Next Part: 82761900 *Qty: 1 RH TGK VALVE CONNECTOR PIPE -Not for RHD- $116.23
Location: 6 Prev | Next Part: 82887200 *Qty: 1 RH TGK VALVE CONNECTOR PIPE -Applicable for RHD- Call
Location: 7 Prev | Next Part: 82302700 *Qty: 1 LH TGK VALVE CONNECTOR PIPE -Not for RHD- $69.75
Location: 7 Prev | Next Part: 82887300 *Qty: 1 LH TGK VALVE CONNECTOR PIPE -Applicable for RHD- Call
Location: 8 Prev | Next Part: 82731600 *Qty: 1 HOSE-Applicable up to Ass. No. 90801 for EU LHD--Applicable up to Ass. No. 91118 for Gulf- Call
Location: 8 Prev | Next Part: 82890500 *Qty: 1 RUBBER PIPE -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $332.34
Location: 8 Prev | Next Part: 82890500 *Qty: 1 RUBBER PIPE -From start of production- -Applicable for non Gulf and EU LHD markets- $332.34
Location: 9 Prev | Next Part: 82535400 *Qty: 1 RIGID PIPE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- Call
Location: 10 Prev | Next Part: 10860270 *Qty: 1 COLLAR -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- Call
Location: 11 Prev | Next Part: 82396800 *Qty: 1 CLIP -Applicable up to Ass. No. 90801 for EU LHD--Applicable up to Ass. No. 91118 for Gulf- $1.34
Location: 12 Prev | Next Part: 82731700 *Qty: 1 CONNECTOR PIPE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $61.74
Location: 12 Prev | Next Part: 82890600 *Qty: 1 CONNECTOR PIPE -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $173.02
Location: 12 Prev | Next Part: 82890600 *Qty: 1 CONNECTOR PIPE -From start of production- -Applicable for non Gulf and EU LHD markets- $173.02
Location: 13 Prev | Next Part: 249018 *Qty: 1 WATER PIPE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf. $137.86
Location: 14 Prev | Next Part: 82303000 *Qty: 1 CONNECTOR PIPE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $30.51
Location: 14 Prev | Next Part: 82887000 *Qty: 1 CONNECTOR PIPE -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf $48.43
Location: 14 Prev | Next Part: 82887000 *Qty: 1 CONNECTOR PIPE -From start of production- -Applicable for non Gulf and EU LHD markets- $48.43
Location: 15 Prev | Next Part: 67444900 *Qty: 1 LH CYLINDER BANK TGK VALVE $228.08
Location: 16 Prev | Next Part: 67635900 *Qty: 1 RH CYLINDER BANK TGK VALVE $227.17
Location: 17 Prev | Next Part: 82302900 *Qty: 2 CONNECTOR PIPE $52.30
Location: 18 Prev | Next Part: 247947 *Qty: 1 RIGID TGK VALVE OUTLET PIPE $72.63
Location: 19 Prev | Next Part: 82328500 *Qty: 1 BRACKET -Not for RHD- $29.07
Location: 20 Prev | Next Part: 174623 *Qty: 2 PLUG $12.72
Location: 21 Prev | Next Part: 11625624 *Qty: 1 SCREW $0.97
Location: 21 Prev | Next Part: 11625824 *Qty: 2 SCREW -Not for RHD- $0.90
Location: 21 Prev | Next Part: 11625824 *Qty: 4 SCREW -Applicable for RHD- $0.90
Location: 22 Prev | Next Part: 13126770 *Qty: 11 COLLAR $1.39
Location: 23 Prev | Next Part: 13127770 *Qty: 3 COLLAR $1.51
Location: 24 Prev | Next Part: 270085 *Qty: 1 CLIP -No longer supplied- -Replaced by 270085- Call
Location: 24 Prev | Next Part: 270085 *Qty: 1 CLIP Call
Location: 25 Prev | Next Part: 82303100 *Qty: 1 CONNECTOR PIPE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $34.86
Location: 25 Prev | Next Part: 82944600 *Qty: 1 CONNECTOR PIPE -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- -Not for RHD- $44.15
Location: 25 Prev | Next Part: 82944600 *Qty: 1 CONNECTOR PIPE -From start of production- -Applicable for non Gulf and EU LHD markets- -Not for RHD- $44.15
Location: 25 Prev | Next Part: 82887400 *Qty: 1 CONNECTOR PIPE -Applicable for RHD- Call
Location: 26 Prev | Next Part: 263232 *Qty: 1 CLIP -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- Call
Location: 26 Prev | Next Part: 263232 *Qty: 1 CLIP -From start of production- -Applicable for non Gulf and EU LHD markets- Call
Location: 27 Prev | Next Part: 231616 *Qty: 1 SCREW -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $0.90
Location: 27 Prev | Next Part: 231616 *Qty: 1 SCREW -From start of production- -Applicable for non Gulf and EU LHD markets- $0.90
Location: 28 Prev | Next Part: 10441890 *Qty: 1 BRACKET WITH SHEATH -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119forGulf- $0.90
Location: 28 Prev | Next Part: 10441890 *Qty: 1 BRACKET WITH SHEATH -From start of production- -Applicable for non Gulf and EU LHD markets- $0.90
Location: 29 Prev | Next Part: 178772 *Qty: 1 SPACER STUD -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $10.67
Location: 29 Prev | Next Part: 178772 *Qty: 1 SPACER STUD -From start of production- -Applicable for non Gulf and EU LHD markets- $10.67
Location: 30 Prev | Next Part: 175871 *Qty: 1 CLIP $0.90
Location: 31 Prev | Next Part: 83413300 *Qty: 1 RH TGK VALVE MOUNTING BRACKET -Applicable for RHD- Call
Location: 32 Prev | Next Part: 83446400 *Qty: 1 LH TGK VALVE MOUNTING BRACKET -Applicable for RHD- Call
Location: 33 Prev | Next Part: 162606 *Qty: 1 CLIP -Applicable for RHD- $1.06
Location: 34 Prev | Next Part: 83444200 *Qty: 2 DRIP BAFFLE RING $4.28
Location: 35 Prev | Next Part: 83560800 *Qty: 1 GUARD Call
Location: 36 Prev | Next Part: 83689500 *Qty: 1 WATER PIPE RUBBER GUARD Call
Location: 37 Prev | Next Part: 83689600 *Qty: 1 WATER PIPE RUBBER GUARD Call

* Quantity shown indicates the number of pieces used in the diagram.
