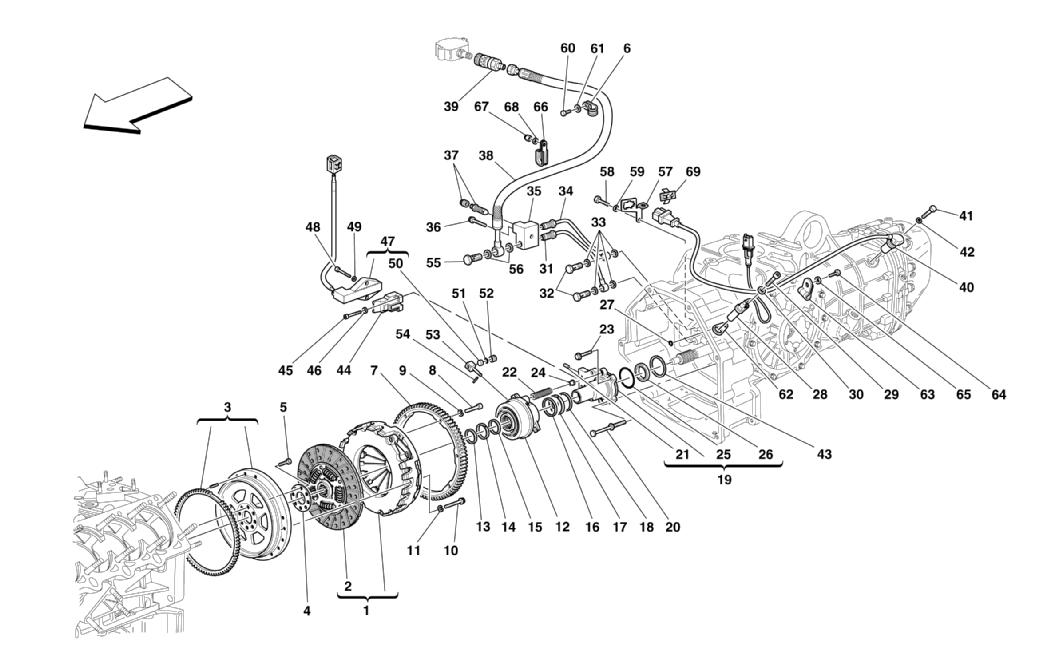

CLUTCH AND CONTROLS

Location Part # Quantity* Description Price Add To Cart
1 201680 1 COMPLETE CLUTCH -Valid from Ass. Nr. 51072 -Valid after stock exhaustion of 186158 $3,020.62
2 199045 1 CLUTCH DISC -Valid from Ass. Nr. 51072 -Valid after stock exhaustion of 180613 Unavailable
2 201680 1 CLUTCH DISC -Valid till Ass. Nr. 51071 -Valid till stock exhaustion $3,020.62
3 181596 1 COMPLETE ENGINE FLYWHEEL $1,501.16
4 103876 1 FLYWHEEL FIXING WASHER $13.38
5 103875 8 SCREW -Not as spare part -Replaced by 201755 Superseded
5 201755 8 SCREW $1.46
6 121834 1 BRACKET $4.85
7 186157 1 RING GEAR $603.90
8 186196 6 SCREW $11.55
9 11197771 6 WASHER Superseded
10 178739 15 SCREW $16.73
11 11194379 15 WASHER $0.90
12 CRB360/430F1S 1 CLUTCH RELEASE BEARING $693.00
13 181837 1 SCRAPER RING $25.86
14 170416 1 RING $3.27
15 181838 1 SEAL RING $25.86
16 181828 1 SEAL RING $31.04
17 154507 1 RING $4.45
18 181836 1 SCRAPER RING $29.31
19 CRF360/430 1 COMPLETE BEARING SUPPORT FLANGE Superseded
20 205396 2 STUD FOR END OF STROKE -Valid from engine Nr. 81310 $66.00
21 65928500 2 THREADED PLUG $31.95
22 155207 2 PRELOAD SPRING $5.00
23 13839224 2 SCREW $4.06
24 155206 2 SPACER $4.24
25 136140 1 O.R. GASKET $1.81
26 172363 1 SEAL RING $12.93
27 166432 2 O.R. GASKET $0.90
28 182194 2 ANGOLAR SPEED SENSOR $87.68
29 14305724 2 SCREW $0.90
30 12601274 2 WASHER $0.90
31 180183 1 CLUTCH CONTROL TUBE Unavailable
32 11903811 2 UNION Unavailable
33 10284460 4 GASKET $0.90
34 180184 1 BLEEDER SYSTEM PIPE Unavailable
35 196918 1 BLOCK $89.00
36 16286324 1 SCREW Unavailable
37 121699 1 BLEEDER SCREW $59.36
38 239429 1 COMPLETE CLUTCH HOSE $1,587.44
39 70001184 1 FEMALE COUPLING $492.07
40 168729 1 ELECTRO-MAGNETIC SENSOR $308.54
41 10902224 1 SCREW $0.90
42 11194377 1 WASHER Unavailable
43 173360 2 SPACER -Possible fitting $27.38
44 201282 1 SUPPORT $71.94
45 14358524 2 SCREW Unavailable
46 10519378 2 WASHER Unavailable
47 178060 1 CLUTCH POSITION SENSOR $828.22
48 14303324 2 SCREW Unavailable
49 10519224 2 WASHER $0.90
50 178060 1 MAGNET -Not as spare part $828.22
51 165658 1 O.R. GASKET $10.80
52 167802 1 PLUG $57.83
53 165567 1 PIN $59.36
54 14158570 1 PIN $0.90
55 171454 1 UNION $71.54
56 10261060 2 GASKET $0.90
57 197831 1 SENSOR FIXING BRACKET $4.67
58 10902024 1 SCREW $0.90
59 10519424 1 WASHER Unavailable
60 10979424 1 SCREW Unavailable
61 14496424 1 WASHER Superseded
62 182896 2 THICKNESS $0.90
63 10440990 1 BRACKET WITH SHEATH $1.97
64 10977724 1 SCREW $0.90
65 12637824 1 WASHER $0.90
66 139512 1 BRACKET WITH SHEATH $2.78
67 102741 1 NUT $0.90
68 14496424 1 WASHER Superseded
69 170301 1 CLIP Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
