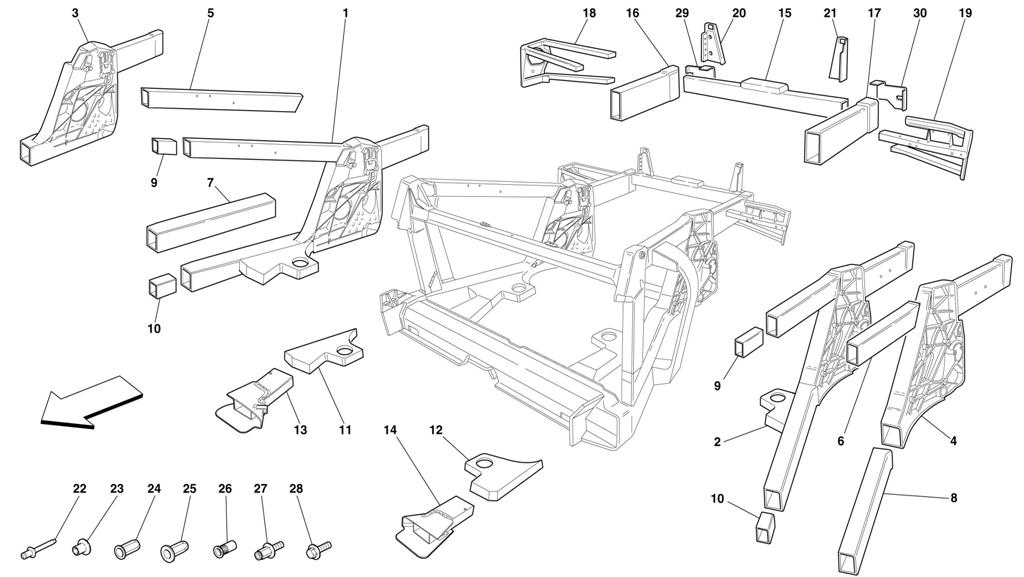

FRAME - REAR ELEMENTS SUB-GROUPS

Go to Split View

FRAME - REAR ELEMENTS SUB-GROUPS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65941400 *Qty: 1 COMPLETE R.H. SIDE FRAME Unavailable
Location: 2 Prev | Next Part: 66290100 *Qty: 1 COMPLETE L.H. SIDE FRAME $3,615.77
Location: 3 Prev | Next Part: 65941800 *Qty: 1 R.H. REAR LATERAL CASTING $2,959.32
Location: 4 Prev | Next Part: 65941900 *Qty: 1 L.H. REAR LATERAL CASTING $2,959.32
Location: 5 Prev | Next Part: 166227 *Qty: 1 R.H. UPPER FRAME $240.59
Location: 6 Prev | Next Part: 166127 *Qty: 1 L.H. UPPER FRAME $266.97
Location: 7 Prev | Next Part: 166235 *Qty: 1 R.H. LOWER FRAME Unavailable
Location: 8 Prev | Next Part: 166135 *Qty: 1 L.H. LOWER FRAME Unavailable
Location: 9 Prev | Next Part: 181980 *Qty: 0 CORE FOR REPAIR $292.08
Location: 10 Prev | Next Part: 181979 *Qty: 0 CORE FOR REPAIR $11.30
Location: 11 Prev | Next Part: 166237 *Qty: 1 R.H. BRACKET ENGINE SUPPORT Unavailable
Location: 12 Prev | Next Part: 166137 *Qty: 1 L.H. BRACKET ENGINE SUPPORT Unavailable
Location: 13 Prev | Next Part: 65942200 *Qty: 1 R.H. SUPPORT FOR BRACKET $1,259.29
Location: 14 Prev | Next Part: 65942300 *Qty: 1 L.H. SUPPORT FOR BRACKET Unavailable
Location: 15 Prev | Next Part: 183978 *Qty: 1 REAR BUMPER CROSS MEMBER $287.43
Location: 16 Prev | Next Part: 183834 *Qty: 1 R.H. REAR FRAME $502.78
Location: 17 Prev | Next Part: 183833 *Qty: 1 L.H. REAR FRAME $679.45
Location: 18 Prev | Next Part: 64810000 *Qty: 1 R.H. REAR FENDER FRAME $233.41
Location: 19 Prev | Next Part: 65995500 *Qty: 1 L.H. REAR FENDER FRAME Unavailable
Location: 20 Prev | Next Part: 65151600 *Qty: 1 R.H. SIDE BRACKET Unavailable
Location: 21 Prev | Next Part: 65151700 *Qty: 1 L.H. SIDE BRACKET Unavailable
Location: 22 Prev | Next Part: 66292300 *Qty: 0 HALF REPOTTED HEAD RIVET $2.04
Location: 22 Prev | Next Part: 66292200 *Qty: 0 STANDARD HEAD RIVET $1.39
Location: 23 Prev | Next Part: 65133800 *Qty: 0 RIVET L. 6,4 mm $0.90
Location: 24 Prev | Next Part: 15180411 *Qty: 0 BLIND ESAGONAL RIVET $1.74
Location: 24 Prev | Next Part: 15624211 *Qty: 0 ESAGONAL RIVET M4 $1.07
Location: 24 Prev | Next Part: 15624311 *Qty: 0 ESAGONAL RIVET M5 $4.90
Location: 24 Prev | Next Part: 15624411 *Qty: 0 ESAGONAL RIVET M6 $1.19
Location: 24 Prev | Next Part: 15624511 *Qty: 0 ESAGONAL RIVET M8 Superseded
Location: 25 Prev | Next Part: 65151200 *Qty: 0 RIVET M6 $0.90
Location: 26 Prev | Next Part: 65135000 *Qty: 0 RIVET M8 Unavailable
Location: 26 Prev | Next Part: 65319800 *Qty: 0 RIVET M8 BLIND Unavailable
Location: 26 Prev | Next Part: 65930400 *Qty: 0 RIVET M6 $1.07
Location: 26 Prev | Next Part: 166101 *Qty: 0 RIVET M4 $1.57
Location: 27 Prev | Next Part: 65065400 *Qty: 0 STUD ESAGONAL HEAD M6 $3.53
Location: 28 Prev | Next Part: 13836971 *Qty: 0 SCREW $0.90
Location: 29 Prev | Next Part: 166288 *Qty: 1 R.H. BRACKET $20.08
Location: 30 Prev | Next Part: 166188 *Qty: 1 L.H. BRACKET $20.08

* Quantity shown indicates the number of pieces used in the diagram.
