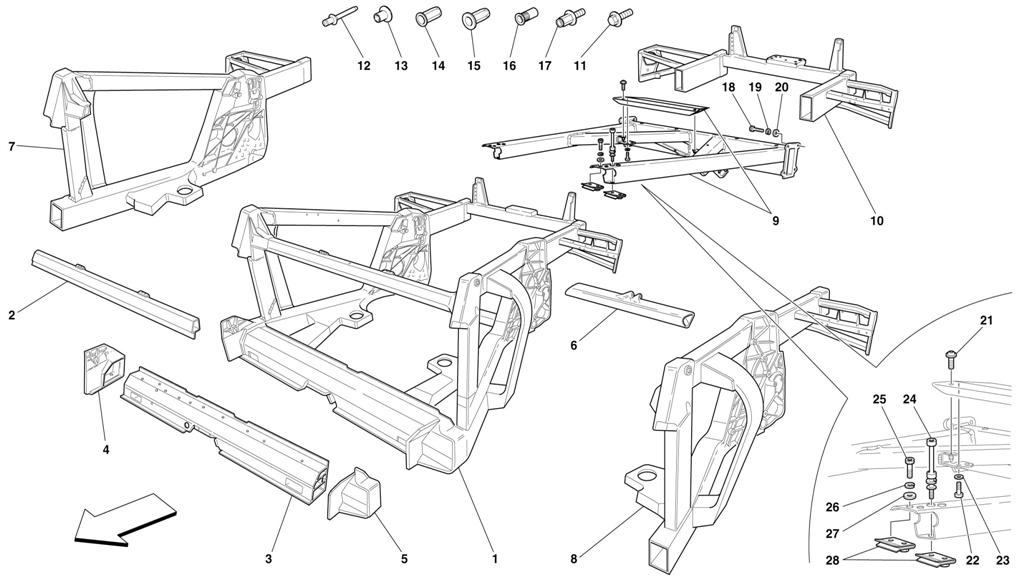

FRAME - REAR ELEMENTS STRUCTURES AND PLATES

Go to Split View

FRAME - REAR ELEMENTS STRUCTURES AND PLATES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65993500 *Qty: 1 COMPLETE REAR FRAME Unavailable
Location: 2 Prev | Next Part: 66278700 *Qty: 1 COMPLETE TAIL REAR WINDOW CROSSPIECE $841.06
Location: 3 Prev | Next Part: 65943100 *Qty: 1 REAR CROSS MEMBER $1,364.97
Location: 4 Prev | Next Part: 166260 *Qty: 1 R.H. LOWER REAR CASTING $840.20
Location: 5 Prev | Next Part: 166160 *Qty: 1 L.H. LOWER REAR CASTING Unavailable
Location: 6 Prev | Next Part: 65993600 *Qty: 1 COMPLETE LOWER CROSS MEMBER $491.75
Location: 7 Prev | Next Part: 66214900 *Qty: 1 COMPLETE R.H. REAR LATERAL SIDE $3,615.77
Location: 8 Prev | Next Part: 65941200 *Qty: 1 COMPLETE L.H. REAR LATERAL SIDE Unavailable
Location: 9 Prev | Next Part: 65943700 *Qty: 1 REAR REMOVIBLE FRAME $2,499.99
Location: 10 Prev | Next Part: 65942100 *Qty: 1 COMPLETE REAR FRAME Unavailable
Location: 11 Prev | Next Part: 13836971 *Qty: 0 SCREW $0.90
Location: 12 Prev | Next Part: 66292200 *Qty: 0 STANDARD HEAD RIVET $1.39
Location: 12 Prev | Next Part: 66292300 *Qty: 0 HALF REPOTTED HEAD RIVET $2.04
Location: 13 Prev | Next Part: 65133800 *Qty: 0 RIVET L. 6,4 mm $0.90
Location: 14 Prev | Next Part: 15180411 *Qty: 0 BLIND ESAGONAL RIVET $1.74
Location: 14 Prev | Next Part: 15624211 *Qty: 0 ESAGONAL RIVET M4 $1.07
Location: 14 Prev | Next Part: 15624311 *Qty: 0 ESAGONAL RIVET M5 $4.90
Location: 14 Prev | Next Part: 15624411 *Qty: 0 ESAGONAL RIVET M6 $1.19
Location: 14 Prev | Next Part: 15624511 *Qty: 0 ESAGONAL RIVET M8 Superseded
Location: 15 Prev | Next Part: 65151200 *Qty: 0 RIVET M6 $0.90
Location: 16 Prev | Next Part: 166101 *Qty: 0 RIVET M4 $1.57
Location: 16 Prev | Next Part: 65135000 *Qty: 0 RIVET M8 Unavailable
Location: 16 Prev | Next Part: 65319800 *Qty: 0 RIVET M8 BLIND Unavailable
Location: 16 Prev | Next Part: 65930400 *Qty: 0 RIVET M6 $1.07
Location: 17 Prev | Next Part: 65065400 *Qty: 0 STUD ESAGONAL HEAD M6 $3.53
Location: 18 Prev | Next Part: 13028734 *Qty: 1 SCREW $0.90
Location: 18 Prev | Next Part: 14306374 *Qty: 7 SCREW $0.90
Location: 19 Prev | Next Part: 127496 *Qty: 12 WASHER $0.90
Location: 20 Prev | Next Part: 10519624 *Qty: 12 WASHER $0.90
Location: 21 Prev | Next Part: 62940900 *Qty: 2 SCREW $1.57
Location: 22 Prev | Next Part: 13027024 *Qty: 4 SCREW $0.90
Location: 23 Prev | Next Part: 14499324 *Qty: 4 WASHER Superseded
Location: 24 Prev | Next Part: 183554 *Qty: 4 COMPLETE SCREW $13.52
Location: 25 Prev | Next Part: 13028734 *Qty: 4 SCREW $0.90
Location: 26 Prev | Next Part: 127496 *Qty: 12 WASHER $0.90
Location: 27 Prev | Next Part: 10519624 *Qty: 12 WASHER $0.90
Location: 28 Prev | Next Part: 179268 *Qty: 2 L.H. BRACKET $61.38
Location: 28 Prev | Next Part: 179269 *Qty: 2 R.H. BRACKET $61.38

* Quantity shown indicates the number of pieces used in the diagram.
