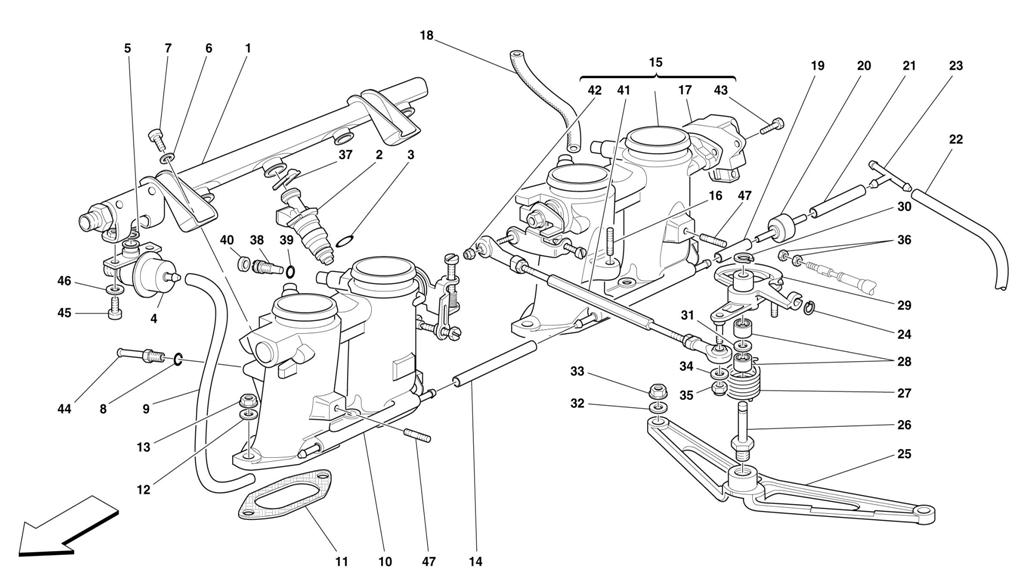

THROTTLE HOLDERS AND CONTROLS

Go to Split View

THROTTLE HOLDERS AND CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 172560 *Qty: 1 L.H. TUBE FOR INJECTORS -Valid till engine Nr. 42568 -Not as spare part now -Replaced by 171797 $1,968.36
Location: 1 Prev | Next Part: 172559 *Qty: 1 R.H. TUBE FOR INJECTORS -Valid till engine Nr. 42568 -Not as spare part now -Replaced by 171796 $2,007.73
Location: 1 Prev | Next Part: 171796 *Qty: 1 R.H. TUBE FOR INJECTORS -Valid from engine Nr. 42569- $743.36
Location: 1 Prev | Next Part: 171797 *Qty: 1 L.H. TUBE FOR INJECTORS -Valid from engine Nr. 42569- Call
Location: 2 Prev | Next Part: 162613 *Qty: 8 ELECTRO-INJECTOR $413.40
Location: 3 Prev | Next Part: 133902 *Qty: 8 O.R. GASKET $6.14
Location: 4 Prev | Next Part: 167321 *Qty: 2 PRESSURE REGULATOR Call
Location: 5 Prev | Next Part: 152211 *Qty: 2 SEAL RING $7.03
Location: 6 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 7 Prev | Next Part: 14306224 *Qty: 4 SCREW $0.90
Location: 8 Prev | Next Part: 168105 *Qty: 8 O.R. GASKET $1.04
Location: 9 Prev | Next Part: 159539 *Qty: 2 PIPE TO MANIFOLD $4.07
Location: 10 Prev | Next Part: 162486 *Qty: 1 L.H. FRONT SUCTION MANIFOLD -Valid till car Ass. Nr. 28137 $1,744.14
Location: 10 Prev | Next Part: 176328 *Qty: 1 L.H. FRONT SUCTION MANIFOLD -Valid from car Ass. Nr. 28138 Call
Location: 10 Prev | Next Part: 162481 *Qty: 1 R.H. FRONT SUCTION MANIFOLD $1,594.31
Location: 11 Prev | Next Part: 152055 *Qty: 8 GASKET $2.38
Location: 12 Prev | Next Part: 12601374 *Qty: 16 WASHER $0.90
Location: 13 Prev | Next Part: 177778 *Qty: 16 NUT $1.60
Location: 14 Prev | Next Part: 159540 *Qty: 2 PIPE $1.02
Location: 15 Prev | Next Part: 162500 *Qty: 1 COMPLETE L.H. REAR SUCTION MANIFOLD $1,594.31
Location: 15 Prev | Next Part: 176329 *Qty: 1 COMPLETE R.H. REAR SUCTION MANIFOLD -Not for 355 F1 cars -Valid from car Ass. Nr. 28138 Call
Location: 15 Prev | Next Part: 177364 *Qty: 1 COMPLETE R.H. REAR SUCTION MANIFOLD -Valid for 355 F1 cars -Valid from car Ass. Nr. 28138 Call
Location: 15 Prev | Next Part: 166872 *Qty: 1 COMPLETE R.H. REAR SUCTION MANIFOLD -Valid for 355 F1 cars -Valid till car Ass. Nr. 28137 Call
Location: 15 Prev | Next Part: 162482 *Qty: 1 COMPLETE R.H. REAR SUCTION MANIFOLD -Not for 355 F1 cars -Valid till car Ass. Nr. 28137 $1,599.44
Location: 16 Prev | Next Part: 13516824 *Qty: 2 STUD $0.90
Location: 17 Prev | Next Part: 158170 *Qty: 1 POTENTIOMETER FOR THROTTLE VALVE -Not for 355 F1 cars $370.95
Location: 17 Prev | Next Part: 172750 *Qty: 1 POTENTIOMETER FOR THROTTLE VALVE (2 Contacts) -Valid for 355 F1 cars $170.91
Location: 18 Prev | Next Part: 114877 *Qty: 8 PIPE TO LOWER SUCTION COVER Call
Location: 19 Prev | Next Part: 159541 *Qty: 2 PIPE TO NON-RETURN VALVE $2.16
Location: 20 Prev | Next Part: 62507200 *Qty: 2 NON-RETURN VALVE $23.10
Location: 21 Prev | Next Part: 159541 *Qty: 1 UNION-R.H. VALVE CONNECTING PIPE $2.16
Location: 22 Prev | Next Part: 159542 *Qty: 1 UNION-L.H. VALVE CONNECTING PIPE $2.84
Location: 23 Prev | Next Part: 121793 *Qty: 1 3-WAY UNION $0.90
Location: 24 Prev | Next Part: 11087974 *Qty: 1 FLEXIBLE RING $0.90
Location: 25 Prev | Next Part: 157171 *Qty: 1 SUPPORT $48.06
Location: 26 Prev | Next Part: 160462 *Qty: 1 PIN $34.34
Location: 27 Prev | Next Part: 160535 *Qty: 1 SPRING $6.73
Location: 28 Prev | Next Part: 132873 *Qty: 2 BEARING $4.79
Location: 29 Prev | Next Part: 175234 *Qty: 1 ACCELERATOR CONTROL TRANSMISSION LEVER -Valid from car Ass. Nr. 28138 $558.58
Location: 29 Prev | Next Part: 161826 *Qty: 1 ACCELERATOR CONTROL TRANSMISSION LEVER -Valid till car Ass. Nr. 28137 $893.79
Location: 30 Prev | Next Part: 11065676 *Qty: 1 SEEGER RING $0.90
Location: 31 Prev | Next Part: 136880 *Qty: 1 SPACER $26.64
Location: 32 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 101139 *Qty: 2 NUT $0.90
Location: 34 Prev | Next Part: 14497801 *Qty: 2 WASHER $2.41
Location: 35 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 36 Prev | Next Part: 10725011 *Qty: 2 NUT $1.83
Location: 37 Prev | Next Part: 144763 *Qty: 8 INJECTORS RETAINING CLIP $3.04
Location: 38 Prev | Next Part: 162700 *Qty: 8 BY-PASS SCREW $4.29
Location: 39 Prev | Next Part: 166485 *Qty: 8 GASKET $0.90
Location: 40 Prev | Next Part: 166486 *Qty: 8 SAFETY PLUG $0.90
Location: 41 Prev | Next Part: 166488 *Qty: 2 COMPLETE TIE ROD -Valid till car Ass. Nr. 28137 $1,053.72
Location: 41 Prev | Next Part: 182213 *Qty: 2 COMPLETE TIE ROD -Valid from car Ass. Nr. 28138 $201.07
Location: 42 Prev | Next Part: 166506 *Qty: 2 TIE ROD FIXING NUT Call
Location: 43 Prev | Next Part: 162722 *Qty: 4 POTENTIOMETER FIXING SCREW $0.90
Location: 44 Prev | Next Part: 168100 *Qty: 8 UNION $52.25
Location: 45 Prev | Next Part: 172763 *Qty: 4 SCREW Call
Location: 46 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 47 Prev | Next Part: 13540724 *Qty: 4 STUD $0.90

* Quantity shown indicates the number of pieces used in the diagram.
