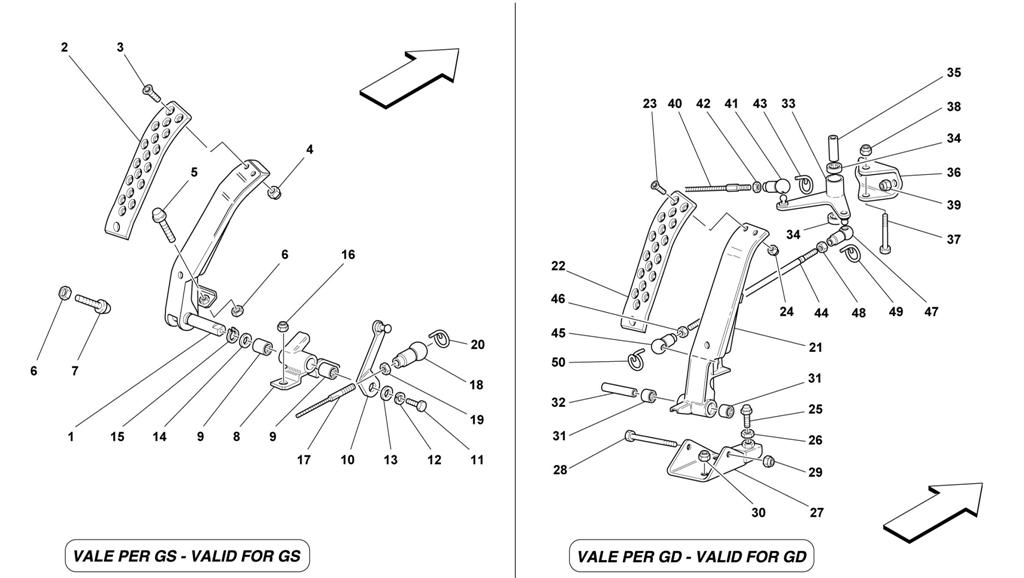

ACCELERATOR PEDAL

Location Part # Quantity* Description Price Add To Cart
1 163173 1 ACCELERATOR PEDAL -Not for RHD $241.55
2 163170 1 ACCELERATOR PEDAL DRILLED PLATE -Not for RHD $50.02
3 14440734 3 SCREW -Not for RHD Unavailable
4 14058311 2 NUT -Not for RHD Unavailable
5 137012 1 PEDAL ADJUSTEMENT PIN -Not for RHD $27.38
6 16102314 2 NUT -Not for RHD Unavailable
7 123961 1 PEDAL ADJUSTEMENT PIN -Not for RHD $4.02
8 151206 1 ACCELERATOR PEDAL SUPPORT -Not for RHD $51.07
9 101677 2 BEARING -Not for RHD $11.02
10 145425 1 ACCELERATOR CONTROL LEVER -Not for RHD $29.31
11 10902224 1 SCREW -Not for RHD $0.90
12 127494 1 WASHER -Not for RHD $0.90
13 106744 1 WASHER -Not for RHD $12.63
14 105931 1 SPACER WASHER mm. 0,7 -Not for RHD Unavailable
14 108576 1 SPACER WASHER mm. 1,0 -Not for RHD $1.97
15 11066075 1 SEEGER RING -Not for RHD Unavailable
16 104030 2 NUT -Not for RHD $0.90
17 164441 1 ACCELERATOR CONTROL CABLE -Not for RHD $69.00
18 173999 1 BALL JOINT HEAD -Not for RHD $8.95
19 15896470 1 NUT -Not for RHD Unavailable
20 174001 1 CLIP RETAINER -Not for RHD $0.90
21 163174 1 ACCELERATOR PEDAL -Valid for RHD $207.04
22 163170 1 ACCELERATOR PEDAL DRILLED PLATE -Valid for RHD $50.02
23 14440734 3 SCREW -Valid for RHD Unavailable
24 14058311 2 NUT -Valid for RHD Unavailable
25 144011 1 PEDAL ADJUSTEMENT PIN -Valid for RHD Unavailable
26 16102314 1 NUT -Valid for RHD Unavailable
27 138204 1 ACCELERATOR PEDAL SUPPORT -Valid for RHD $27.59
28 10903621 1 SCREW -Valid for RHD Unavailable
29 102741 1 NUT -Valid for RHD $0.90
30 104030 2 NUT -Valid for RHD $0.90
31 101677 2 BEARING -Valid for RHD $11.02
32 138219 1 PIN -Valid for RHD $127.26
33 138215 1 ACCELERATOR CONTROL LEVER -Valid for RHD $310.57
34 101677 2 BEARING -Valid for RHD $11.02
35 138218 1 PIN -Valid for RHD $119.55
36 138217 1 LEVER SUPPORT -Valid for RHD $10.86
37 10903224 1 SCREW -Valid for RHD Superseded
38 102741 1 NUT -Valid for RHD $0.90
39 102948 2 NUT -Valid for RHD Superseded
40 171349 1 ACCELERATOR CONTROL CABLE -Valid for RHD $241.55
41 173999 1 BALL JOINT HEAD -Valid for RHD $8.95
42 15896470 1 NUT -Valid for RHD Unavailable
43 174001 1 CLIP -Valid for RHD $0.90
44 138214 1 ACCELERATOR CONTROL SPRAG -Valid for RHD $15.35
45 173999 1 BALL JOINT HEAD -Valid for RHD $8.95
46 15896470 1 NUT -Valid for RHD Unavailable
47 174000 1 BALL JOINT HEAD -Valid for RHD $8.95
48 105586 1 NUT -Valid for RHD $12.00
49 174001 1 CLIP -Valid for RHD $0.90
50 174001 1 CLIP -Valid for RHD $0.90

* Quantity shown indicates the number of pieces used in the diagram.
