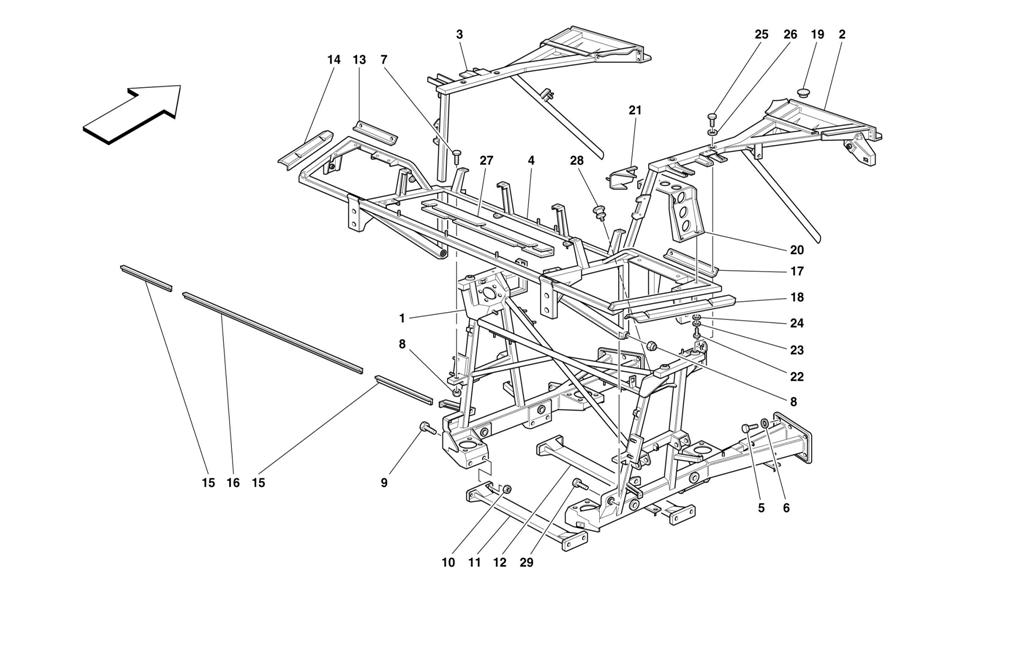

FRAME - REAR PART ELEMENTS

Go to Split View

FRAME - REAR PART ELEMENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64627600 *Qty: 1 MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Valid for CH Unavailable
Location: 1 Prev | Next Part: 64216300 *Qty: 1 MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Not for USA, CDN, RHD, CH and SA Unavailable
Location: 1 Prev | Next Part: 64429500 *Qty: 1 MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Valid for RHD $2,023.37
Location: 1 Prev | Next Part: 64493300 *Qty: 1 MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Valid for USA, CDN and SA $3,021.09
Location: 2 Prev | Next Part: 64538600 *Qty: 0 FRAME $1,488.17
Location: 3 Prev | Next Part: 64048200 *Qty: 1 L.H. UPPER FIXED FRAME -Not for Spider $854.73
Location: 4 Prev | Next Part: 64627400 *Qty: 1 BUMPER SUPPORT TRESTLE ASSEMBLY -Valid for CH $1,962.81
Location: 4 Prev | Next Part: 64048600 *Qty: 1 BUMPER SUPPORT TRESTLE ASSEMBLY -Not for USA, CDN, CH and SA Unavailable
Location: 4 Prev | Next Part: 64455000 *Qty: 1 BUMPER SUPPORT TRESTLE ASSEMBLY -Valid for USA and SA $3,915.06
Location: 4 Prev | Next Part: 64512600 *Qty: 1 BUMPER SUPPORT TRESTLE ASSEMBLY -Valid for CDN $2,173.04
Location: 5 Prev | Next Part: 16142021 *Qty: 12 SCREW $10.88
Location: 6 Prev | Next Part: 127498 *Qty: 12 WASHER $0.90
Location: 7 Prev | Next Part: 11422021 *Qty: 2 SCREW -Not for USA, CDN, SA $1.80
Location: 7 Prev | Next Part: 15862134 *Qty: 2 SCREW -Valid for USA, CDN, SA $4.95
Location: 8 Prev | Next Part: 150238 *Qty: 4 NUT Unavailable
Location: 9 Prev | Next Part: 14331224 *Qty: 8 SCREW $3.52
Location: 10 Prev | Next Part: 142438 *Qty: 8 NUT $0.97
Location: 11 Prev | Next Part: 63948500 *Qty: 1 REAR REMOVABLE CROSS MEMBER Unavailable
Location: 12 Prev | Next Part: 63948800 *Qty: 1 FRONT REMOVABLE CROSS MEMBER $201.71
Location: 13 Prev | Next Part: 62123700 *Qty: 1 WHEELHOUSE FIXING L.H. PLATE $2.57
Location: 14 Prev | Next Part: 62129000 *Qty: 1 FENDER FIXING L.H. PLATE $31.89
Location: 15 Prev | Next Part: 62054800 *Qty: 2 FRONT PLATE FOR REAR SIDE COVER SUPPORT $2.83
Location: 16 Prev | Next Part: 62055000 *Qty: 1 CENTRAL PLATE FOR REAR SIDE COVER SUPPORT $3.43
Location: 17 Prev | Next Part: 62123700 *Qty: 1 WHEELHOUSE FIXING R.H. PLATE $2.57
Location: 18 Prev | Next Part: 62128900 *Qty: 1 FENDER FIXING R.H. PLATE $31.89
Location: 19 Prev | Next Part: 14506787 *Qty: 2 PLUG Unavailable
Location: 20 Prev | Next Part: 158332 *Qty: 2 REAR BRACKET $569.90
Location: 21 Prev | Next Part: 64295600 *Qty: 1 TERMINAL BOX FIXING BRACKET $165.49
Location: 21 Prev | Next Part: 64295700 *Qty: 1 TERMINAL BOX FIXING BRACKET -Not as spare part now -Replaced by 64295600 Unavailable
Location: 22 Prev | Next Part: 14305724 *Qty: 4 SCREW $0.90
Location: 23 Prev | Next Part: 10615474 *Qty: 4 WASHER Unavailable
Location: 24 Prev | Next Part: 10519424 *Qty: 4 WASHER Unavailable
Location: 25 Prev | Next Part: 63369800 *Qty: 4 SCREW $1.26
Location: 26 Prev | Next Part: 127497 *Qty: 4 WASHER $0.90
Location: 27 Prev | Next Part: 64696600 *Qty: 1 PIPE RETAINING MOLDING -Valid from car Nr. 101580 $247.63
Location: 27 Prev | Next Part: 64608000 *Qty: 1 PIPE RETAINING MOLDING -Valid till car Nr. 101579 $84.92
Location: 28 Prev | Next Part: 151856 *Qty: 1 NEGATIVE TERMINAL $3.26
Location: 29 Prev | Next Part: 11422021 *Qty: 2 SCREW -Not for USA, CDN and SA -Valid till stock exhaustion $1.80
Location: 29 Prev | Next Part: 15862134 *Qty: 2 SCREW -Not for USA, CDN and SA -Valid after stock exhaustion of 11422021 $4.95
Location: 29 Prev | Next Part: 15977724 *Qty: 2 SCREW -Valid for USA, CDN and SA $1.83

* Quantity shown indicates the number of pieces used in the diagram.
