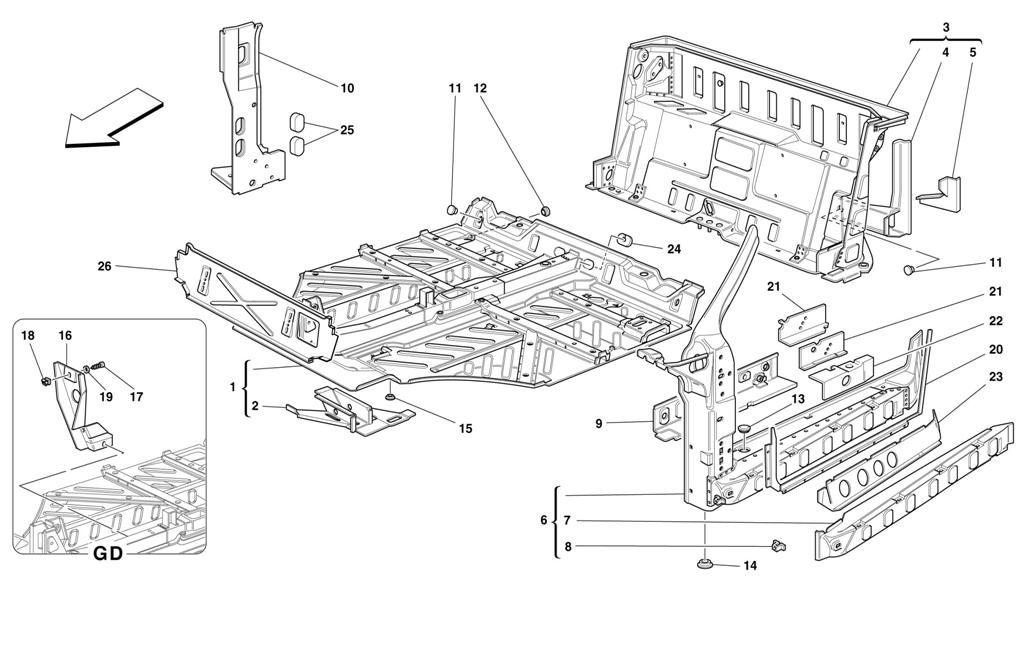

CENTRAL PART STRUCTURES

Go to Split View

CENTRAL PART STRUCTURES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64969600 *Qty: 1 COMPLETE CENTRAL FLOOR -Valid for RHD Spider without AIR-BAG Unavailable
Location: 1 Prev | Next Part: 64969700 *Qty: 1 COMPLETE CENTRAL FLOOR -Valid for RHD Spider with AIR-BAG Unavailable
Location: 1 Prev | Next Part: 64538500 *Qty: 1 COMPLETE CENTRAL FLOOR -Not for cars with AIR-BAG -Not for Spider-Not for RHD Unavailable
Location: 1 Prev | Next Part: 64732000 *Qty: 1 COMPLETE CENTRAL FLOOR -Valid for RHD without AIR-BAG -Not for Spider Unavailable
Location: 1 Prev | Next Part: 64923500 *Qty: 1 COMPLETE CENTRAL FLOOR -Valid for cars Spider without AIR-BAG -Not for RHD Unavailable
Location: 1 Prev | Next Part: 64969300 *Qty: 1 COMPLETE CENTRAL FLOOR -Valid for cars with AIR-BAG -Not for Spider-Not for RHD Unavailable
Location: 1 Prev | Next Part: 64969400 *Qty: 1 COMPLETE CENTRAL FLOOR -Valid for RHD with AIR-BAG -Not for Spider Unavailable
Location: 1 Prev | Next Part: 64969500 *Qty: 1 COMPLETE CENTRAL FLOOR -Valid for cars Spider with AIR-BAG -Not for RHD Unavailable
Location: 2 Prev | Next Part: 62164000 *Qty: 1 R.H. PLATE WITH REINFORCEMENT $42.38
Location: 2 Prev | Next Part: 62164100 *Qty: 1 L.H. PLATE WITH REINFORCEMENT $42.38
Location: 3 Prev | Next Part: 64516200 *Qty: 1 COMPLETE REAR FRAMEWORK -Valid for Spider with double fuel pump -Not for RHD Unavailable
Location: 3 Prev | Next Part: 64733000 *Qty: 1 COMPLETE REAR FRAMEWORK -Valid for for cars with single fuel pump -Not for Spider-Not for RHD Unavailable
Location: 3 Prev | Next Part: 64733100 *Qty: 1 COMPLETE REAR FRAMEWORK -Valid for RHD with single fuel pump -Not for Spider $1,288.60
Location: 3 Prev | Next Part: 64733200 *Qty: 1 COMPLETE REAR FRAMEWORK -Valid for Spider with single fuel pump -Not for RHD Unavailable
Location: 3 Prev | Next Part: 64895300 *Qty: 1 COMPLETE REAR FRAMEWORK -Valid for RHD Spider $2,139.98
Location: 3 Prev | Next Part: 64436800 *Qty: 1 COMPLETE REAR FRAMEWORK -Valid for RHD with double fuel pump -Not for Spider $1,271.40
Location: 3 Prev | Next Part: 63585100 *Qty: 1 COMPLETE REAR FRAMEWORK -Valid for cars with double fuel pump -Not for Spider-Not for RHD Unavailable
Location: 4 Prev | Next Part: 64245800 *Qty: 1 MOVING FRAME FIXING CROSS MEMBER -Not for Spider $1,810.05
Location: 4 Prev | Next Part: 64781800 *Qty: 1 MOVING FRAME FIXING CROSS MEMBER -Valid for Spider $670.34
Location: 5 Prev | Next Part: 64302100 *Qty: 1 REINFORCEMENT R.H. BRACKET $154.04
Location: 5 Prev | Next Part: 64302200 *Qty: 1 REINFORCEMENT L.H. BRACKET $154.04
Location: 6 Prev | Next Part: 64522400 *Qty: 1 R.H. DOOR COMPARTMENT FRAME -Valid for Spider $750.18
Location: 6 Prev | Next Part: 64522500 *Qty: 1 L.H. DOOR COMPARTMENT FRAME -Valid for Spider $756.34
Location: 6 Prev | Next Part: 62088500 *Qty: 1 R.H. DOOR COMPARTMENT FRAME -Not for GTS -Valid for RHD GTS -Not for Spider $487.40
Location: 6 Prev | Next Part: 62088600 *Qty: 1 L.H. DOOR COMPARTMENT FRAME -Not for GTS -Valid for RHD GTS -Not for Spider Unavailable
Location: 6 Prev | Next Part: 64384400 *Qty: 1 R.H. DOOR COMPARTMENT FRAME -Valid for GTS -Not for RHD GTS -Not for Spider $546.36
Location: 6 Prev | Next Part: 64384500 *Qty: 1 L.H. DOOR COMPARTMENT FRAME -Valid for GTS -Not for RHD GTS -Not for Spider $546.21
Location: 7 Prev | Next Part: 62077400 *Qty: 1 EXTERNAL COVERING FOR L.H. SIDE MEMBER $582.74
Location: 7 Prev | Next Part: 62077300 *Qty: 1 EXTERNAL COVERING FOR R.H. SIDE MEMBER $582.74
Location: 8 Prev | Next Part: 62055300 *Qty: 2 BRACKET $29.68
Location: 9 Prev | Next Part: 62181900 *Qty: 1 INTERNAL PLATE FOR R.H. SIDE MEMBER -Not as spare part replaced by 62068900 $32.32
Location: 9 Prev | Next Part: 62182000 *Qty: 1 INTERNAL PLATE FOR L.H. SIDE MEMBER -Not as spare part replaced by 62069000 $32.32
Location: 9 Prev | Next Part: 62068900 *Qty: 1 INTERNAL PLATE FOR R.H. SIDE MEMBER -Replaces 62181900 $25.18
Location: 9 Prev | Next Part: 62069000 *Qty: 1 INTERNAL PLATE FOR L.H. SIDE MEMBER -Replaces 62182000 $25.18
Location: 10 Prev | Next Part: 62080100 *Qty: 1 R.H. PILLAR BOX-TYPE $150.50
Location: 10 Prev | Next Part: 62080200 *Qty: 1 L.H. PILLAR BOX-TYPE $69.83
Location: 11 Prev | Next Part: 14506987 *Qty: 9 PLUG $3.97
Location: 12 Prev | Next Part: 14506587 *Qty: 1 PLUG Unavailable
Location: 13 Prev | Next Part: 14507987 *Qty: 2 PLUG $6.50
Location: 14 Prev | Next Part: 14506787 *Qty: 4 PLUG D. 20 Unavailable
Location: 14 Prev | Next Part: 62446300 *Qty: 4 PLUG D. 30 $22.79
Location: 15 Prev | Next Part: 14506587 *Qty: 3 PLUG -Valid for RHD Unavailable
Location: 16 Prev | Next Part: 64447000 *Qty: 1 FOOT-REST REINFORCEMENT BRACKET -Valid for RHD $116.75
Location: 17 Prev | Next Part: 15903975 *Qty: 2 SCREW -Valid for RHD $0.90
Location: 18 Prev | Next Part: 14202782 *Qty: 2 BLOCK -Valid for RHD Unavailable
Location: 19 Prev | Next Part: 12638177 *Qty: 2 WASHER -Valid for RHD Superseded
Location: 20 Prev | Next Part: 64645300 *Qty: 1 R.H. STRUCTURAL SHAPE ASSEMBLY -Valid for Spider $227.96
Location: 20 Prev | Next Part: 64374100 *Qty: 1 R.H. STRUCTURAL SHAPE ASSEMBLY -Not for Spider $227.96
Location: 20 Prev | Next Part: 64645400 *Qty: 1 L.H. STRUCTURAL SHAPE ASSEMBLY -Valid for Spider $227.96
Location: 20 Prev | Next Part: 64374200 *Qty: 1 L.H. STRUCTURAL SHAPE ASSEMBLY -Not for Spider $227.96
Location: 21 Prev | Next Part: 64384600 *Qty: 1 R.H. REAR REINFORCEMENT PLATE -Valid for GTS and Spider $54.08
Location: 21 Prev | Next Part: 63011200 *Qty: 1 R.H. REAR REINFORCEMENT PLATE -Valid for BERLINETTA $17.62
Location: 21 Prev | Next Part: 63011300 *Qty: 1 L.H. REAR REINFORCEMENT PLATE -Valid for BERLINETTA $16.63
Location: 21 Prev | Next Part: 64384700 *Qty: 1 L.H. REAR REINFORCEMENT PLATE -Valid for GTS and Spider $55.16
Location: 22 Prev | Next Part: 64384200 *Qty: 1 R.H. OUTER REAR REINFORCEMENT -Valid for GTS and Spider $19.53
Location: 22 Prev | Next Part: 64384300 *Qty: 1 L.H. OUTER REAR REINFORCEMENT -Valid for GTS and Spider $22.57
Location: 23 Prev | Next Part: 63011400 *Qty: 1 R.H. OUTER REINFORCEMENT -Valid for GTS and Spider $216.58
Location: 23 Prev | Next Part: 63011500 *Qty: 1 L.H. OUTER REINFORCEMENT -Valid for GTS and Spider $216.58
Location: 24 Prev | Next Part: 63566000 *Qty: 1 SEAL RING $0.93
Location: 25 Prev | Next Part: 64463600 *Qty: 2 THICKNESS $1.90
Location: 26 Prev | Next Part: 64330200 *Qty: 1 DASH PANEL LOWER SHIELD -Not for RHD Unavailable
Location: 26 Prev | Next Part: 64436600 *Qty: 1 DASH PANEL LOWER SHIELD -Valid for RHD $478.85

* Quantity shown indicates the number of pieces used in the diagram.
