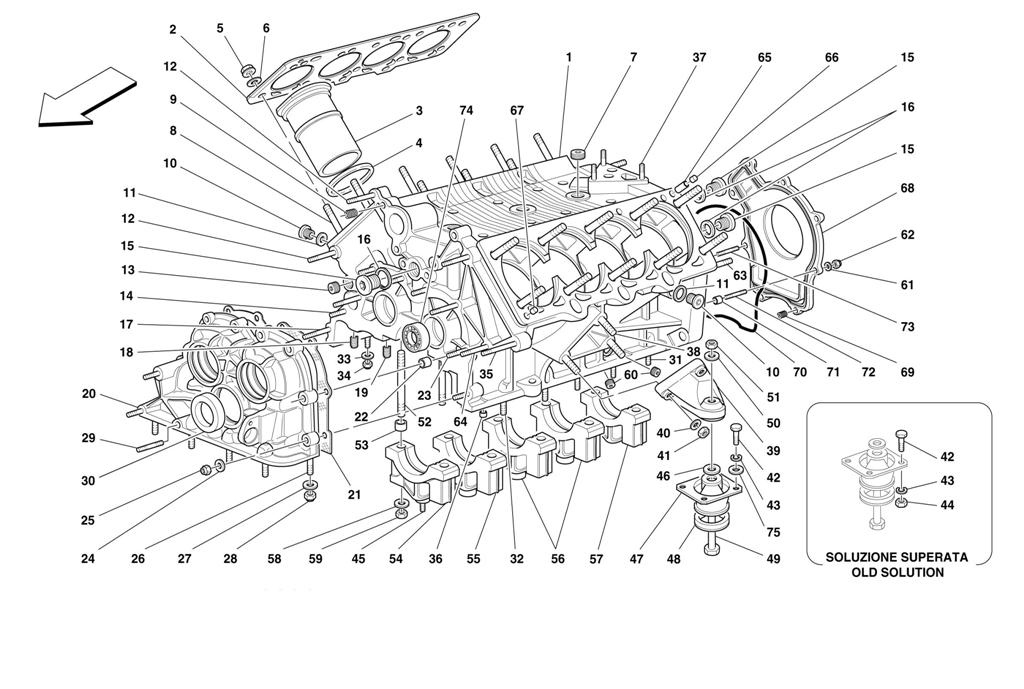

CRANKCASE

Location Part # Quantity* Description Price Add To Cart
- 164025 1 COMPLETE CRANKCASE Unavailable
1 153912 1 CRANKCASE -Not as spare part -With the complete crankcase Unavailable
2 150311 2 GASKET $586.65
3 136875 8 CYLINDER LINER Unavailable
4 136258 8 GASKET $7.29
5 148093 20 NUT $31.95
6 151117 20 WASHER $1.50
7 14325540 3 THREADED PLUG $12.77
8 148311 20 STUD $44.13
9 13525870 4 THREADED INSERT Unavailable
10 150731 2 WATER OUTLET PLUG $5.32
11 10280060 2 GASKET $0.90
12 13544024 2 STUD $0.95
13 14325140 1 THREADED PLUG Unavailable
14 13543424 5 STUD Unavailable
15 10275011 3 THREADED PLUG $2.58
16 10263460 3 GASKET Superseded
17 13544024 1 STUD $0.95
18 13525870 3 THREADED INSERT Unavailable
19 13525770 1 THREADED INSERT Unavailable
20 154113 1 FRONT COVER -Not as spare part -With the complete crankcase Unavailable
21 153921 1 GASKET $20.69
22 100041 2 DOWEL $9.91
23 13543624 1 STUD Unavailable
24 12601374 9 WASHER $0.90
25 101139 9 NUT $0.90
26 13543524 6 STUD Unavailable
27 12604479 6 WASHER $15.96
28 101139 6 NUT $0.90
29 13517224 3 STUD Unavailable
30 163985 1 FRONT CRANKSHAFT SEAL $51.74
31 13543324 11 STUD Unavailable
32 13543524 1 STUD Unavailable
33 12604479 12 WASHER $15.96
34 101139 12 NUT $0.90
35 13544321 1 STUD Superseded
36 102725 2 DOWEL $1.50
37 13543524 3 STUD Unavailable
38 13546624 6 STUD $1.20
39 159955 2 ENGINE FIXING SUPPORT Unavailable
40 11190574 6 WASHER $0.90
41 133988 6 NUT Unavailable
42 15970634 8 SCREW Unavailable
43 127497 8 WASHER $0.90
44 133988 8 NUT Unavailable
45 13516624 4 STUD Unavailable
46 162373 2 UPPER SPACER Unavailable
47 162769 2 WICK BODY $144.92
48 162375 2 LOWER SPACER Unavailable
49 162531 2 SCREW Unavailable
50 12601774 2 WASHER Unavailable
51 176573 2 NUT $2.58
52 104075 10 STUD $16.73
53 125317 10 DOWEL $1.66
54 152158 1 FRONT HAT -Not as spare part -With the complete crankcase Unavailable
55 152159 1 FRONT INTERMEDIATE HAT -Not as spare part -With the complete crankcase Unavailable
56 152098 2 INTERMEDIATE CENTRAL AND REAR HAT -Not as spare part -With the complete crankcase Unavailable
57 152099 1 REAR HAT -Not as spare part -With the complete crankcase Unavailable
58 103842 10 WASHER $3.84
59 6103841 10 NUT $13.99
60 164400 2 THREADED PLUG $4.85
61 12620479 8 WASHER Unavailable
62 15896214 8 NUT Unavailable
63 13547135 4 STUD $18.25
64 13544024 2 STUD $0.95
65 156862 2 NONRETURN VALVE $22.82
66 156865 2 DOWEL (R.H. FRONT-L.H. REAR) $35.00
67 156864 2 DOWEL (L.H. FRONT-R.H. REAR) $3.19
68 142471 1 REAR COVER $707.66
69 13525570 2 THREADED INSERT $2.86
70 142472 1 O.R. GASKET $24.34
71 103038 2 DOWEL Unavailable
72 13541124 2 STUD Unavailable
73 13540824 4 STUD Unavailable
74 171177 2 BEARING $24.34
75 14496609 8 WASHER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
