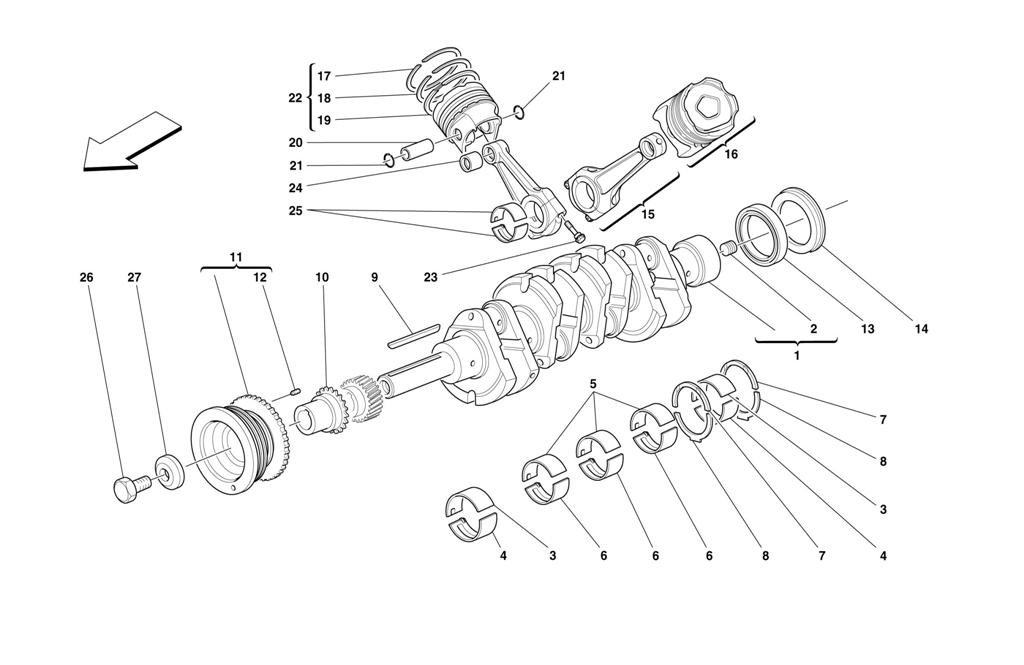

DRIVING SHAFT - CONNECTING RODS AND PISTONS

Go to Split View

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 160807 *Qty: 0 TOOTHED WHEEL $655.31
Location: - Prev | Next Part: 160813 *Qty: 0 SEAL RING -Not as spare part -With the complete pistons rings set Unavailable
Location: - Prev | Next Part: 164026 *Qty: 0 PISTON RING SET (1 PISTON) $218.31
Location: - Prev | Next Part: 132773 *Qty: 0 RING Unavailable
Location: - Prev | Next Part: 146911 *Qty: 0 GEAR/OIL PUMP $120.63
Location: - Prev | Next Part: 183581 *Qty: 0

REAR MAIN SEAL

$138.39
Location: - Prev | Next Part: 151289 *Qty: 0 KEY $4.19
Location: - Prev | Next Part: 152991 *Qty: 0 AC SEAL RING -Not as spare part -With the pistons rings set Unavailable
Location: - Prev | Next Part: 204886 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -STANDARD SIZE -See tecnical information of S.A.T. N.717 Unavailable
Location: - Prev | Next Part: 154717 *Qty: 0 180208 $39.00
Location: - Prev | Next Part: 170929 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -1st UNDERSIZE mm. 0,254 -See tecnical information of S.A.T. N.717 $2,039.87
Location: - Prev | Next Part: 155097 *Qty: 0 BUSHING $46.17
Location: - Prev | Next Part: 170930 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -2nd UNDERSIZE mm. 0,508 -See tecnical information of S.A.T. N.717 $2,146.63
Location: - Prev | Next Part: 155562 *Qty: 0 ROD/CONNECTING Unavailable
Location: - Prev | Next Part: 10841010 *Qty: 0 DOWEL $0.96
Location: - Prev | Next Part: 158186 *Qty: 0 TIGHTENING SCREW $117.78
Location: - Prev | Next Part: 159141 *Qty: 0 PISTON/RINGS $1,297.39
Location: 1 Prev | Next Part: 155119 *Qty: 1 CRANKSHAFT -See tecnical information of S.A.T. N.717 $10,168.71
Location: 2 Prev | Next Part: 163528 *Qty: 1 THREADED PLUG -Replaces 10268450 $4.60
Location: 2 Prev | Next Part: 10268450 *Qty: 1 THREADED PLUG -Replaced by 163528 $4.51
Location: 3 Prev | Next Part: 164098 *Qty: 2 UPPER HALF BEARING -Not as spare part -With the half-bearings complete series Unavailable
Location: 3 Prev | Next Part: 164946 *Qty: 0 UPPER HALF BEARING 1st UNDERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete se Unavailable
Location: 3 Prev | Next Part: 164947 *Qty: 0 UPPER HALF BEARING 2nd UNDERSIZE mm. 0,508 -Not as spare part -With the half-bearings complete se Unavailable
Location: 4 Prev | Next Part: 164953 *Qty: 0 LOWER HALF BEARING 1st UNDERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete se Unavailable
Location: 4 Prev | Next Part: 164954 *Qty: 0 LOWER HALF BEARING 2nd UNDERSIZE mm. 0,508 -Not as spare part -With the half-bearings complete se Unavailable
Location: 4 Prev | Next Part: 164100 *Qty: 2 LOWER HALF BEARING -Not as spare part -With the half-bearings complete series Superseded
Location: 5 Prev | Next Part: 164956 *Qty: 0 UPPER INTERMEDIATE HALF BEARING 1st UNDERSIZE mm. 0,254 -Not as spare part -With the half-bearin Unavailable
Location: 5 Prev | Next Part: 164957 *Qty: 0 UPPER INTEMEDIATE HALF BEARING 2nd UNDERSIZE mm. 0,508 -Not as spare part -With the half-bearin Unavailable
Location: 5 Prev | Next Part: 164101 *Qty: 3 UPPER INTERMEDIATE HALF BEARING -Not as spare part -With the half-bearings complete series $29.98
Location: 6 Prev | Next Part: 164951 *Qty: 0 INTERMEDIATE LOWER HALF BEARING 2nd UNDERSIZE mm. 0,508 -Not as spare part -With the half-beari Unavailable
Location: 6 Prev | Next Part: 164099 *Qty: 3 INTERMEDIATE LOWER HALF BEARING -Not as spare part -With the half-bearings complete series Unavailable
Location: 6 Prev | Next Part: 164950 *Qty: 0 INTERMEDIATE LOWER HALF BEARING 1st UNDERSIZE mm. 0,254 -Not as spare part -With the half-bearin Unavailable
Location: 7 Prev | Next Part: 146111 *Qty: 2 UPPER SHIM -Not as spare part -With the half-bearings complete series Unavailable
Location: 7 Prev | Next Part: 164112 *Qty: 0 UPPER SHIM 1st OVERSIZE mm. 0,127 -Not as spare part -With the half-bearings complete series Unavailable
Location: 7 Prev | Next Part: 164113 *Qty: 0 UPPER SHIM 2nd OVERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete series Unavailable
Location: 8 Prev | Next Part: 164108 *Qty: 2 LOWER SHIM -Not as spare part -With the half-bearings complete series $128.88
Location: 8 Prev | Next Part: 164109 *Qty: 0 LOWER SHIM 1st OVERSIZE mm. 0,127 -Not as spare part -With the half-bearings complete series Unavailable
Location: 8 Prev | Next Part: 164110 *Qty: 0 LOWER SHIM 2nd OVERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete seriesKEY Unavailable
Location: 21 Prev | Next Part: 166901 *Qty: 16 STOP RING -Replaces 152993PISTONS RINGS SET $7.57
Location: 21 Prev | Next Part: 152993 *Qty: 16 STOP RING -Not spare part now replaced by 166901 $5.16
Location: 25 Prev | Next Part: 202389 *Qty: 16 CONNECTING ROD HALF BEARING $43.57
Location: 25 Prev | Next Part: 166564 *Qty: 16 CONNECTING ROD HALF BEARING 1st UNDERSIZE mm. 0,254 $71.24
Location: 25 Prev | Next Part: 166565 *Qty: 16 CONNECTING ROD HALF BEARING 2nd UNDERSIZE mm. 0,508 $94.13

* Quantity shown indicates the number of pieces used in the diagram.
