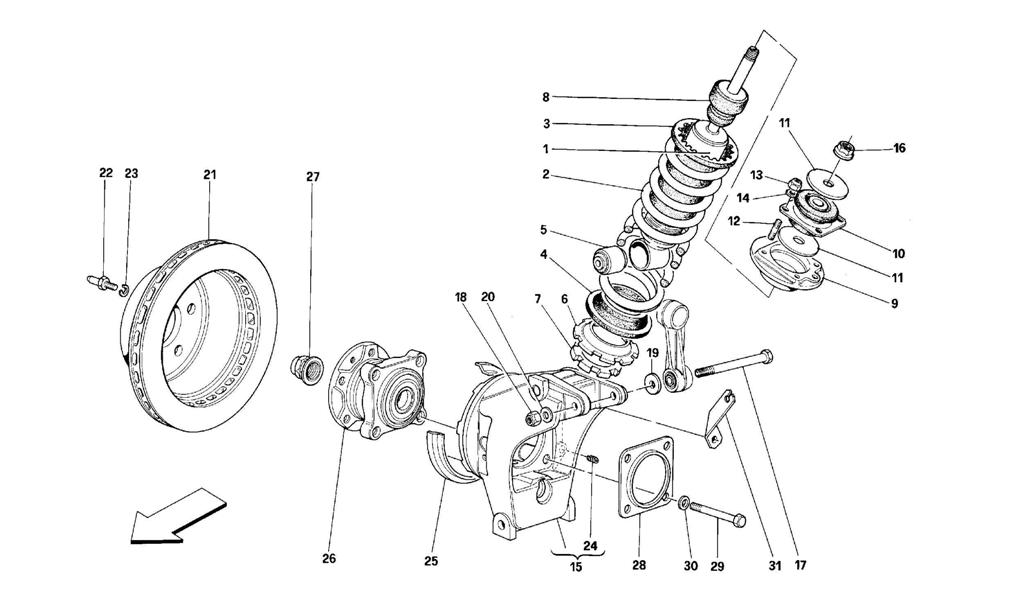

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 155188 *Qty: 2 REAR SHOCK ABSORBER
-Sold in pair-
$1,494.13
Location: 2 Prev | Next Part: 148786 *Qty: 2 SPRING
-Sold in pair-
$137.33
Location: 3 Prev | Next Part: 113582 *Qty: 2 UPPER SPACER $106.64
Location: 4 Prev | Next Part: 113581 *Qty: 2 LOWER SPACER $11.25
Location: 5 Prev | Next Part: 130516 *Qty: 2 ESTENDBLOCK $32.04
Location: 6 Prev | Next Part: 155086 *Qty: 2 SPACER $86.00
Location: 7 Prev | Next Part: 141860 *Qty: 2 RING NUT $65.00
Location: 8 Prev | Next Part: 155872 *Qty: 2 PAD $27.90
Location: 9 Prev | Next Part: 151547 *Qty: 2 SPRING RETAINING CUP $42.45
Location: 10 Prev | Next Part: 114812 *Qty: 2 HYPERBLOCK $119.08
Location: 11 Prev | Next Part: 114815 *Qty: 4 WASHER $1.74
Location: 12 Prev | Next Part: 13543324 *Qty: 8 STUD $3.53
Location: 13 Prev | Next Part: 104030 *Qty: 8 NUT $0.90
Location: 14 Prev | Next Part: 12638524 *Qty: 8 WASHER $0.90
Location: 15 Prev | Next Part: 159355 *Qty: 1 R.H. REAR HUB HOLDER $915.81
Location: - Prev | Next Part: 159356 *Qty: 1 L.H. REAR HUB HOLDER $1,839.06
Location: 16 Prev | Next Part: 137826 *Qty: 2 NUT $3.70
Location: 17 Prev | Next Part: 105901 *Qty: 2 SCREW $20.15
Location: 18 Prev | Next Part: 148020 *Qty: 2 NUT $4.84
Location: 19 Prev | Next Part: 132199 *Qty: 2 WASHER $3.07
Location: 20 Prev | Next Part: 10520024 *Qty: 2 WASHER $2.57
Location: 21 Prev | Next Part: 131868 *Qty: 2 REAR BRAKE DISC Superseded
Location: 22 Prev | Next Part: 16043424 *Qty: 4 CENTERING PIN $0.90
Location: 23 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 133771 *Qty: 4 THREADED INSERT $4.07
Location: 25 Prev | Next Part: 103117 *Qty: 2 MUDGUARDS COVER $14.39
Location: 26 Prev | Next Part: 157900 *Qty: 2 HUB COMPLETE BEARING $1,599.09
Location: 27 Prev | Next Part: 209184 *Qty: 2 NUT $33.27
Location: 28 Prev | Next Part: 139900 *Qty: 2 HUB HOLDER DUCT PROTECTION $9.39
Location: 29 Prev | Next Part: 139973 *Qty: 8 SCREW $3.15
Location: 30 Prev | Next Part: 12601474 *Qty: 8 WASHER $0.90
Location: 31 Prev | Next Part: 140674 *Qty: 1 R.H. BRACKET $3.91
Location: - Prev | Next Part: 140675 *Qty: 1 L.H. BRACKET $3.91

* Quantity shown indicates the number of pieces used in the diagram.
