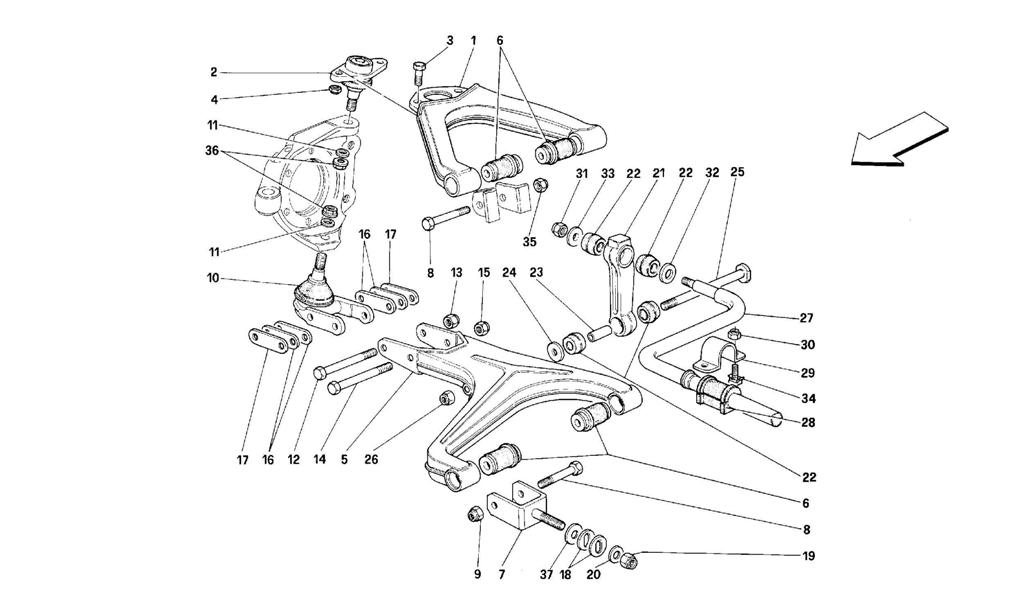

FRONT SUSPENSION - WISHBONES

Location Part # Quantity* Description Price Add To Cart
1 143010 2 UPPER LEVER $1,283.93
2 132776 2 UPPER BALL JOINT $207.04
3 16043724 4 SCREW Unavailable
4 16104121 4 NUT Superseded
5 143005 2 LOWER LEVER $1,664.70
6 154537 8 FLAMBLOCK $83.98
7 142983 4 LOWER FORK $965.18
8 106419 8 SCREW $50.22
9 148020 4 NUT $5.93
10 133944 2 LOWER BALL JOINT $873.85
11 122237 4 WASHER $5.93
12 15971624 2 SCREW Unavailable
13 102742 2 NUT Unavailable
14 132667 2 SCREW $33.56
15 148020 2 NUT $5.93
16 101022 10 SETTING PLATE $1.97
17 101022 2 SETTING PLATE
-1.5 mm-
-Possible fitting- 		$1.97
- 115073 2 SETTING PLATE
-1.2 mm-
-Possible fitting- 		$2.11
- 164484 2 SETTING PLATE
-1 mm-
-Possible fitting- 		$36.22
- 164485 2 SETTING PLATE
-2 mm-
-Possible fitting- 		$4.41
18 101039 8 SPACER WASHER 1.0 mm Unavailable
- 107338 0 SPACER WASHER 1.5 mm Unavailable
- 107339 0 SPACER WASHER 2.0 mm Unavailable
- 107341 0 SPACER WASHER 3.0 mm Unavailable
- 107340 0 SPACER WASHER 2.5 mm Unavailable
- 107342 0 SPACER WASHER 3.25 mm $1.26
19 150238 4 NUT Unavailable
20 101041 4 WASHER Unavailable
21 114691 2 SHACKLE FOR STABILISER BAR $1,012.81
22 100984 8 PAD Unavailable
23 100985 2 SPACER $41.70
24 105334 2 WASHER $52.82
25 132665 2 PIVOT $44.23
26 148020 2 NUT $5.93
27 141428 1 ANTI-ROLL BAR $729.95
28 118371 2 BAR BUFFER $50.57
29 133802 2 PLATE $143.20
30 16104121 4 NUT Superseded
31 102742 2 NUT Unavailable
32 10520221 2 WASHER $2.42
33 112874 2 WASHER Unavailable
34 14672491 4 SCREW Unavailable
35 148020 4 NUT $5.93
36 149807 4 NUT $1.48
37 159406 4 WASHER $20.04

* Quantity shown indicates the number of pieces used in the diagram.
