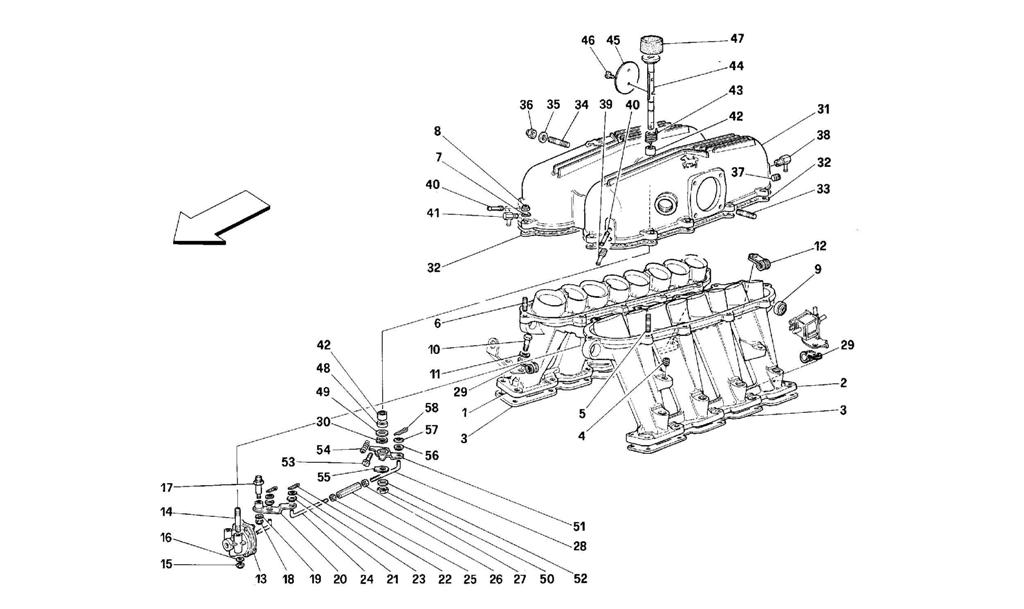

MANIFOLDS AND COVERS

Go to Split View

MANIFOLDS AND COVERS

Location Part # Quantity* Description Price Add To Cart
- 150465 1 COMPLETE R.H. INTAKE MANIFOLD
-Not for USA and CDN- 		$2,337.06
- 149503 1 COMPLETE R.H. INTAKE MANIFOLD
-Valid for USA and CDN- 		$2,758.04
1 ------ 1 R. H. INTAKE MANIFOLD
-With the complete R. H. Intake Manifold- 		Unavailable
- 150466 1 COMPLETE L.H. INTAKE MANIFOLD
-Not for USA and CDN- 		$2,337.06
- 149504 1 COMPLETE L.H. INTAKE MANIFOLD
-Valid for USA and CDN- 		$2,758.04
2 ------ 1 L. H. INTAKE MANIFOLD
-With the complete L. H. Intake Manifold- 		Unavailable
3 138029 2 GASKET $73.61
4 13525770 4 THREADED INSERT Unavailable
5 143307 2 STUD Unavailable
6 11500321 18 STUD Unavailable
7 12601274 20 WASHER $0.90
8 101239 20 NUT $2.44
9 100424 2 BALL JOINT Unavailable
10 16043724 20 SCREW Unavailable
11 12601374 20 WASHER $0.90
12 10450690 1 BRACKET Unavailable
13 136815 1 PNEUMATIC CAPSULE $41.25
14 11001721 2 STUD $8.95
15 169180 2 NUT Unavailable
16 14496301 2 WASHER $1.81
17 137277 1 STUD $63.92
18 169180 1 NUT Unavailable
19 10730021 1 WASHER Unavailable
20 137135 1 LEVER $48.60
21 137271 2 BUSHING Unavailable
22 10794501 2 SPLIT PIN Unavailable
23 14496201 2 WASHER Unavailable
24 137270 1 L.H. THREAD TIE ROD $33.43
25 10791111 1 L.H. THREAD NUT Unavailable
26 137273 1 ADJUSTMENT SLEEVE $3.90
27 10794011 1 R.H. THREAD NUT Unavailable
28 137276 1 R.H. THREAD TIE ROD $35.12
29 10450590 3 BRACKET Unavailable
30 11065676 1 SEEGER RING Unavailable
- 150464 1 COMPLETE INTAKE MANIFOLDS COVER
-Not for USA and CDN- 		$2,632.95
- 149505 1 COMPLETE INTAKE MANIFOLDS COVER
-Valid for USA and CDN- 		$2,425.67
31 ------ 1 INTAKE MANIFOLDS COVER
-Not as spare part-
-With the complete cover- 		Unavailable
32 157317 2 GASKET
-Not for USA and CDN- 		$53.06
- 138045 2 GASKET
-Valid for USA and CDN- 		$86.86
33 13541124 4 STUD Unavailable
34 13541124 4 STUD Unavailable
35 14496424 8 WASHER Superseded
36 101239 8 NUT $2.44
37 141563 3 PLUG $1.77
38 128016 1 UNION $12.87
39 142507 1 UNION $8.57
40 117348 2 UNION $8.69
41 142511 1 UNION $3.05
42 136922 2 BUSHING $1.83
43 138169 1 SPRING $9.38
44 156540 1 BUTTERFLY CONTROL SHAFT
-Not for USA and CDN- 		$175.39
- 138173 1 BUTTERFLY CONTROL SHAFT
-Valid for USA and CDN- 		$201.38
45 156542 1 AIR ADJUSTTING THROTTLE
-Not for USA and CDN- 		$48.60
- 137280 1 AIR ADJUSTTING THROTTLE
-Valid for USA and CDN- 		$57.81
46 136923 2 SCREW Unavailable
47 139373 1 PROTECTION BOOT Unavailable
48 129269 2 SEAL RING $10.72
49 136921 1 WASHER Unavailable
50 16102314 1 NUT Unavailable
51 154270 1 THROTTLE CONTROL LEVER $16.67
52 137126 1 WASHER $1.87
53 153399 1 SCREW Unavailable
54 153400 1 SPRING $16.85
55 113566 1 SAFETY PLATE $3.39
56 137271 1 BUSHING Unavailable
57 14496201 1 WASHER Unavailable
58 10794501 1 SPLIT PIN Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
