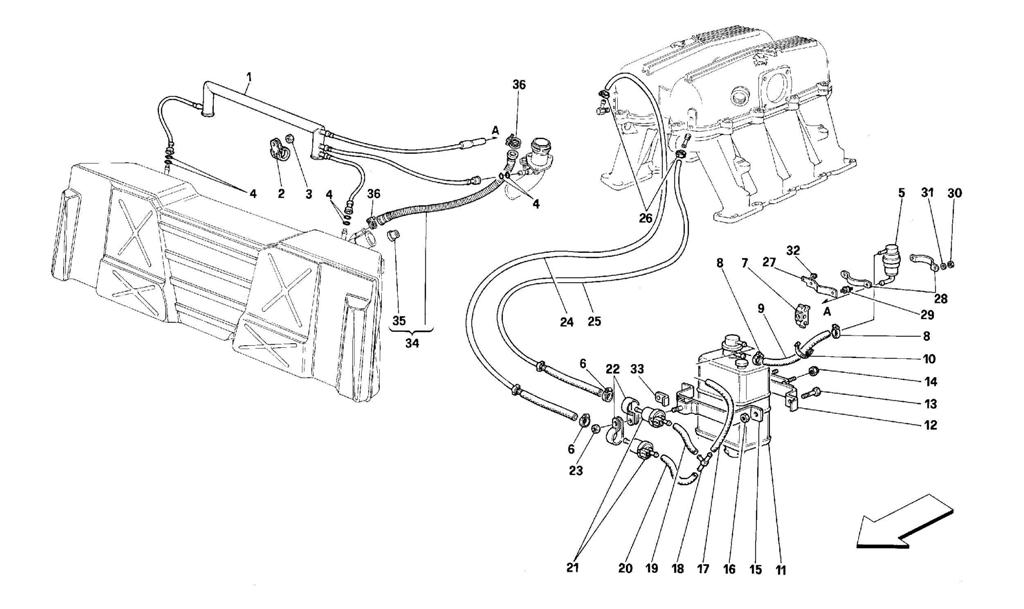

ANTIEVAPORATION DEVICE

Location Part # Quantity* Description Price Add To Cart
1 133959 1 DISAREATOR $637.42
2 10442290 2 BRACKET Unavailable
3 102741 2 NUT $0.90
4 133956 6 O RING GASKET $1.14
5 139568 1 ANTI-TILTING VALVE Unavailable
6 13000190 2 SCREW COLLAR $0.90
7 141699 1 CLIP $1.16
8 13000190 2 SCREW COLLAR $0.90
9 133951 1 PIPE FROM ROLLOVER VALVE TO FILTER $21.50
10 145855 1 CLAMP Unavailable
11 138419 1 VAPOR FILTER Unavailable
12 138494 1 FRAME FASTENING FILTER BRACKET $50.12
13 10902111 2 SCREW Superseded
14 102741 2 NUT $0.90
15 138496 1 COMPLETE BRACKET $37.49
16 102741 2 NUT $0.90
17 114874 1 PIPE FROM FILTER TO UNION Unavailable
18 105990 1 3-WAYS UNION Unavailable
19 142407 1 PIPE FROM UNION TO ANTIEVAPORATION VALVE $3.88
20 142408 1 PIPE FROM UNION TO ANTIEVAPORATION VALVE $4.08
21 130978 2 ANTI-EVAPORATION VALVE Unavailable
22 142196 2 BRACKET $2.07
23 15896214 1 NUT Unavailable
24 142409 1 PIPE FROM VALVE TO R.H. MANIFOLD $130.89
25 141551 1 PIPE FROM VALVE TO L.H. MANIFOLD $99.82
26 157990 2 SCREW COLLAR $2.48
27 149438 1 BRACKET $4.73
28 149437 2 BRACKET $2.17
29 113021 2 PAD $10.60
30 15896470 4 NUT Unavailable
31 127493 4 WASHER $0.90
32 102741 1 NUT $0.90
33 137716 1 PLATE $23.91
34 142104 1 VENT PIPE FROM TANK TO UNION Unavailable
35 142106 2 GASKET $8.18
36 164015 2 SCREW COLLAR Superseded

* Quantity shown indicates the number of pieces used in the diagram.
