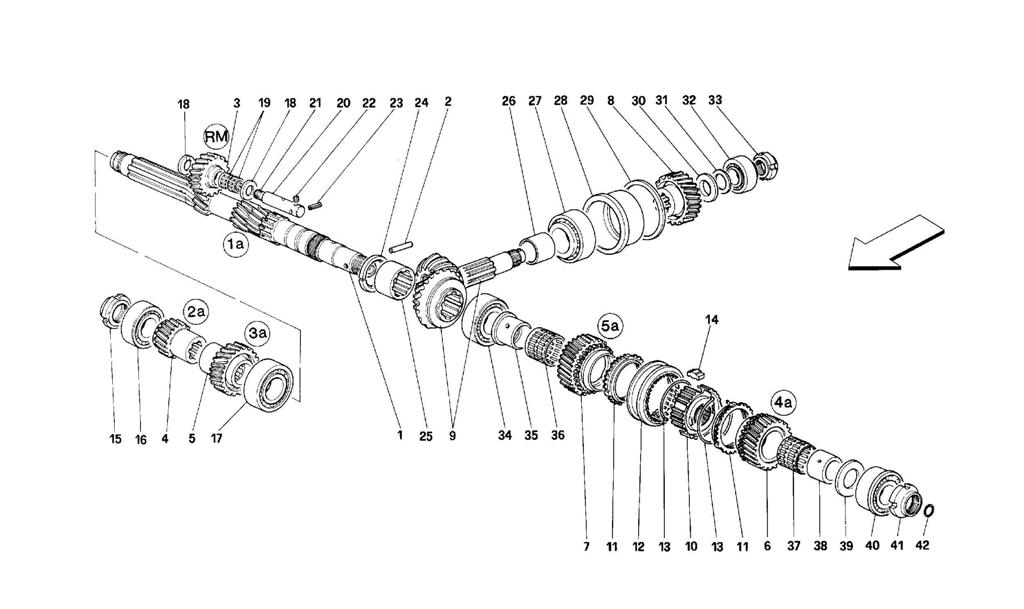

MAIN SHAFT GEARS

Go to Split View

MAIN SHAFT GEARS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 70000848 *Qty: 1 GEAR TRANSMISSION TORQUE TRANSMISSION RATIO 26/27)
-Valid for Spider and RHD until exhaustion-
-Not for USA and CDN-
$7,768.54
Location: - Prev | Next Part: 70000797 *Qty: 1 GEAR TRANSMISSION TORQUE TRANSMISSION RATIO 25/27)
-Valid for GTB and GTS-
-For Spider and RHD after exhaustion 70000798-
-Not for USA and CDN-
$2,471.01
Location: - Prev | Next Part: 70000800 *Qty: 1 GEAR TRANSMISSION TORQUE TRANSMISSION RATIO 25/29)
-Valid for USA and CDN-
$1,054.19
Location: - Prev | Next Part: 70000783 *Qty: 1 PINION KIT FOR 1st GEAR AND REVERSE $4,974.51
Location: - Prev | Next Part: 70000589 *Qty: 1 PINION SET FOR 2nd GEAR $4,634.35
Location: - Prev | Next Part: 70000590 *Qty: 1 PINION SET FOR 3rd GEAR $3,120.36
Location: - Prev | Next Part: 70000784 *Qty: 1 PINION SET FOR 4th GEAR $1,603.23
Location: - Prev | Next Part: 70000592 *Qty: 1 PINION SET FOR 5th GEAR
-Not for USA and CDN-
$1,377.23
Location: - Prev | Next Part: 70000801 *Qty: 1 PINION SET FOR 5th GEAR
-Valid for USA and CDN-
$1,336.28
Location: 1 Prev | Next Part: 70000783 *Qty: 1 MAIN SHAFT FOR GEAR LEVER
-With the pinion kit for 1st and reverse only-
$4,974.51
Location: 2 Prev | Next Part: 14601470 *Qty: 1 PIN $0.90
Location: 3 Prev | Next Part: 70000783 *Qty: 1 IDLE GEAR FOR REVERSE (Z.22)
-With the pinion kit for 1st and reverse only-
$4,974.51
Location: 4 Prev | Next Part: 70000589 *Qty: 1 PINION FOR 2ND GEAR (Z.19)
-With the pinion kit for 2nd gear only-
$4,634.35
Location: 5 Prev | Next Part: 70000590 *Qty: 1 PINION FOR 3RD GEAR (Z.24)
-With the pinion kit for 3rd gear only-
$3,120.36
Location: 6 Prev | Next Part: 150900 *Qty: 1 PINION FOR 4TH GEAR
-With the pinion kit for 4th gear only-
Unavailable
Location: 7 Prev | Next Part: 70000592 *Qty: 1 PINION FOR 5TH GEAR COMPL. (Z.31)
-With the pinion kit for 5th gear only-
-Not for USA and CDN-
$1,377.23
Location: 7 Prev | Next Part: 155974 *Qty: 1 PINION FOR 5TH GEAR COMPL. (Z.31)
-With the pinion kit for 5th gear only-
-Valid for USA and CDN-
$283.79
Location: 8 Prev | Next Part: ------ *Qty: 1 GEAR ON PINION
-With the assembly 70000798
70000797. 70000800 only-
Unavailable
Location: 9 Prev | Next Part: 168047 *Qty: 1 COMPLETE BEVEL SET TRANSMISSION RATIO 19/20 $1,193.36
Location: 10 Prev | Next Part: 106046 *Qty: 1 SYNCHRONIZER BODY $772.32
Location: 11 Prev | Next Part: 150628 *Qty: 2 FLOATING RING FOR SYNCHRO. $392.00
Location: 12 Prev | Next Part: 131801 *Qty: 1 SLEEVE FOR SYNCHRONIZER $180.97
Location: 13 Prev | Next Part: 145244 *Qty: 2 RING SPRING $3.36
Location: 14 Prev | Next Part: 126201 *Qty: 3 PAD FOR SYNCHRONIZER $104.60
Location: 15 Prev | Next Part: 153002 *Qty: 1 RING NUT $68.63
Location: 16 Prev | Next Part: 108656 *Qty: 1 BEARING $546.21
Location: 17 Prev | Next Part: 131056 *Qty: 1 BEARING $199.75
Location: 18 Prev | Next Part: 131425 *Qty: 2 SPACER $14.43
Location: 19 Prev | Next Part: 104734 *Qty: 2 REVERSE IDLE GEAR ROLLER CAGE $6.12
Location: 20 Prev | Next Part: 131798 *Qty: 1 REVERSE IDLE GEAR PIN $47.11
Location: 21 Prev | Next Part: 10275550 *Qty: 1 PLUG $1.28
Location: 22 Prev | Next Part: 65928500 *Qty: 1 PLUG $17.92
Location: 23 Prev | Next Part: 14601470 *Qty: 1 PIN $0.90
Location: 24 Prev | Next Part: 144617 *Qty: 1 SPACER RING $32.15
Location: 25 Prev | Next Part: 144616 *Qty: 1 SPACER $91.99
Location: 26 Prev | Next Part: 131335 *Qty: 1 BAG FOR BEARING $829.82
Location: 27 Prev | Next Part: 131015 *Qty: 1 BEARING $156.72
Location: 28 Prev | Next Part: 139828 *Qty: 1 BAG FOR BEARING $558.30
Location: 29 Prev | Next Part: 131388 *Qty: 1 SPACER 1.8 mm $73.11
Location: - Prev | Next Part: 131389 *Qty: 0 SPACER 1.9 mm $28.62
Location: - Prev | Next Part: 131390 *Qty: 0 SPACER 2.0 mm $65.05
Location: - Prev | Next Part: 131391 *Qty: 0 SPACER 2.1 mm $94.54
Location: - Prev | Next Part: 131392 *Qty: 0 SPACER 2.2 mm $27.62
Location: - Prev | Next Part: 131393 *Qty: 0 SPACER 2.3 mm $91.49
Location: 30 Prev | Next Part: 131372 *Qty: 1 SPACER $15.93
Location: 31 Prev | Next Part: 131374 *Qty: 1 SPACER 1.8 mm $15.37
Location: - Prev | Next Part: 131375 *Qty: 0 SPACER 1.9 mm $41.73
Location: - Prev | Next Part: 141044 *Qty: 0 SPACER 1.95 mm $26.50
Location: - Prev | Next Part: 131376 *Qty: 0 SPACER 2.0 mm $15.37
Location: - Prev | Next Part: 141046 *Qty: 0 SPACER 2.05 mm $7.69
Location: - Prev | Next Part: 131377 *Qty: 0 SPACER 2.1 mm $15.31
Location: - Prev | Next Part: 141048 *Qty: 0 SPACER 2.15 mm $7.72
Location: - Prev | Next Part: 131378 *Qty: 0 SPACER 2.2 mm $15.37
Location: - Prev | Next Part: 131379 *Qty: 0 SPACER 2.3 mm $61.81
Location: 32 Prev | Next Part: 131016 *Qty: 1 BEARING $70.35
Location: 33 Prev | Next Part: 105137 *Qty: 1 RING NUT $40.00
Location: 34 Prev | Next Part: 138714 *Qty: 1 BEARING $785.05
Location: 35 Prev | Next Part: 131358 *Qty: 1 ROLLER CAGE RACE $274.22
Location: 36 Prev | Next Part: 109002 *Qty: 1 5th GEAR ROLLER CAGE $31.46
Location: 37 Prev | Next Part: 109002 *Qty: 1 4th GEAR ROLLER CAGE $31.46
Location: 38 Prev | Next Part: 150899 *Qty: 1 TRACK FOR 4th GEAR ROLLER CAGE $109.17
Location: 39 Prev | Next Part: 150893 *Qty: 1 SPACER 4.7 mm Unavailable
Location: - Prev | Next Part: 150894 *Qty: 0 SPACER 4.8 mm $100.34
Location: - Prev | Next Part: 150895 *Qty: 0 SPACER 4.9 mm $75.27
Location: - Prev | Next Part: 150892 *Qty: 0 SPACER 5.0 mm $75.15
Location: - Prev | Next Part: 150902 *Qty: 0 SPACER 5.1 mm $18.76
Location: - Prev | Next Part: 150896 *Qty: 0 SPACER 5.2 mm $20.84
Location: - Prev | Next Part: 153885 *Qty: 0 SPACER 5.3 mm $42.95
Location: - Prev | Next Part: 153886 *Qty: 0 SPACER 5.4 mm $24.57
Location: - Prev | Next Part: 154118 *Qty: 0 SPACER 5.5 mm $25.21
Location: 40 Prev | Next Part: 155694 *Qty: 1 BEARING $132.55
Location: 41 Prev | Next Part: 153000 *Qty: 1 RING NUT $47.04
Location: 42 Prev | Next Part: 109724 *Qty: 1 O RING GASKET $1.39

* Quantity shown indicates the number of pieces used in the diagram.
