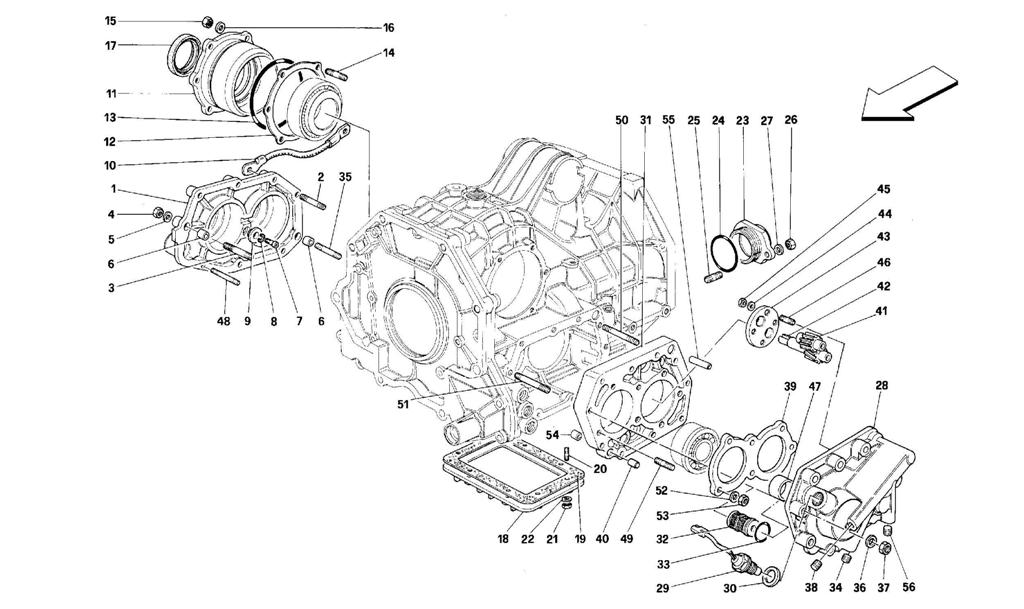

GEARBOX COVERS

Location Part # Quantity* Description Price Add To Cart
1 135741 1 R.H. SIDE COVER $200.52
2 13543624 6 STUD Unavailable
3 13543721 1 STUD Unavailable
4 16100821 9 NUT Unavailable
5 12601374 9 WASHER $0.90
6 100041 2 DOWEL $9.91
7 14305224 1 SCREW Unavailable
8 10569273 1 WASHER Unavailable
9 131757 1 BUSHING $15.23
10 155073 1 CABLE FOR ENGINE Unavailable
11 143448 2 DIFFERENTIAL LATERAL COVER $136.90
12 132135 2 SPACER FOR LID 1.30 mm $231.82
- 132136 0 1.40 mm $38.55
- 145457 0 1.45 mm $50.12
- 132137 0 1.50 mm $32.76
- 145458 0 1.55 mm $32.76
- 132138 0 1.60 mm $36.62
- 145459 0 1.65 mm $34.69
- 132139 0 1.70 mm $38.55
- 132140 0 1.80 mm $38.55
- 132141 0 1.90 mm $26.98
13 139453 2 O RING GASKET $9.11
14 13543324 12 STUD Unavailable
15 16100821 12 NUT Unavailable
16 12601374 12 WASHER $0.90
17 133628 1 R.H. SEAL RING $110.33
- 141509 1 L.H. SEAL RING $129.39
18 135736 1 LOWER COVER $29.01
19 177720 1 GASKET $24.14
20 13540820 8 STUD Superseded
21 15896214 8 NUT Unavailable
22 12601274 8 WASHER $0.90
23 139699 1 OIL SEAL COVER $60.58
24 131747 1 O RING GASKET $2.11
25 13543221 2 STUD Unavailable
26 16100821 2 NUT Unavailable
27 12601374 2 WASHER $0.90
28 153149 1 L.H. SIDE COVER $786.20
29 116987 1 PULSE SENSOR $596.39
30 10263460 1 GASKET Superseded
31 150055 1 INTERMEDIATE BODY $1,313.51
32 115538 1 FILTER Unavailable
33 101034 1 O RING GASKET $1.97
34 10275550 1 PLUG $1.28
35 13544124 1 STUD Unavailable
36 12601374 10 WASHER $0.90
37 16100821 10 NUT Unavailable
38 14326050 1 PLUG $2.05
39 145272 1 BEARING RETAINING FLANGE $178.62
40 125717 1 DOWEL $4.41
41 109723 1 DRIVEN GEAR $1,195.65
42 109722 1 DRIVING GEAR $2,933.23
43 121962 1 SMALL COVER $250.68
44 12601274 4 WASHER $0.90
45 15896214 4 NUT Unavailable
46 11500020 4 STUD Unavailable
47 113088 1 SEAL RING SEAT $122.17
48 13544024 1 STUD $0.95
49 13543221 7 STUD Unavailable
50 13544321 8 STUD Superseded
51 13544224 8 STUD $10.39
52 127496 7 WASHER $0.90
53 16100821 7 NUT Unavailable
54 100041 1 DOWEL $9.91
55 131746 1 DOWEL $5.32
56 14326150 1 PLUG Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
