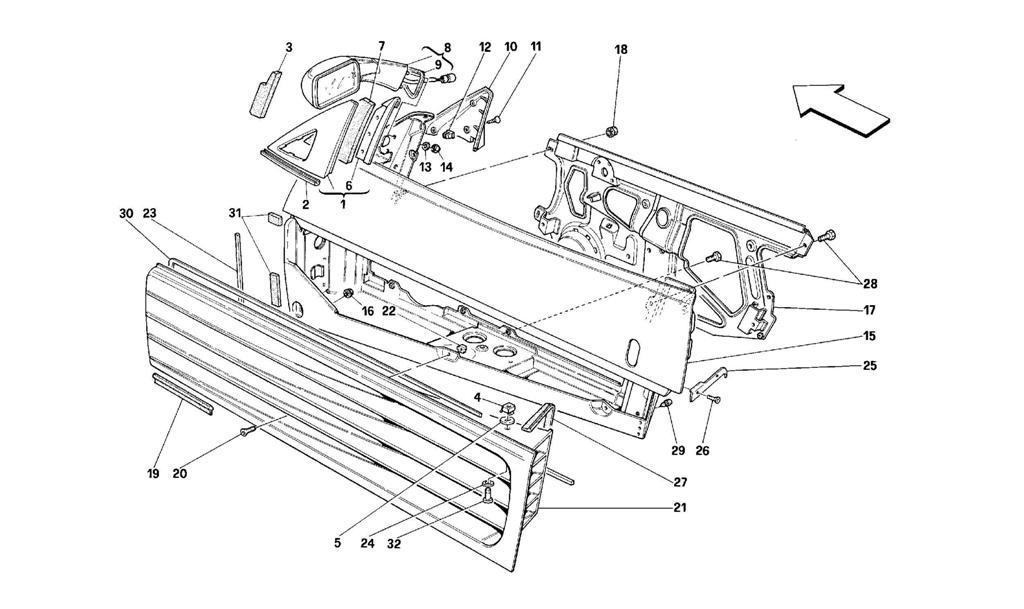

DOORS - FRAMEWORK AND REAR MIRROR

Go to Split View

DOORS - FRAMEWORK AND REAR MIRROR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63390000 *Qty: 1 R.H. OUTER PLATE $220.35
Location: 1 Prev | Next Part: 63390100 *Qty: 1 L.H. OUTER PLATE Call
Location: 2 Prev | Next Part: 63639100 *Qty: 1 R.H. LOWER GASKET Call
Location: 2 Prev | Next Part: 63639200 *Qty: 1 L.H. LOWER GASKET $142.98
Location: 3 Prev | Next Part: 63931600 *Qty: 2 REAR SILENCER $93.56
Location: 4 Prev | Next Part: 14197890 *Qty: 2 NUT $0.90
Location: 5 Prev | Next Part: 63398400 *Qty: 2 SHIM $37.39
Location: 6 Prev | Next Part: 63390000 *Qty: 1 R.H. BADGE INNER GASKET $220.35
Location: 6 Prev | Next Part: 63390100 *Qty: 1 L.H. BADGE INNER GASKET Call
Location: 7 Prev | Next Part: 65209000 *Qty: 2 FRONT SILENCER $5.19
Location: 8 Prev | Next Part: 62188910 *Qty: 1 R.H. EXTERNAL REAR MIRROR
-Not for USA, CDN and RHD
$4,079.70
Location: 8 Prev | Next Part: 62189000 *Qty: 1 L.H. EXTERNAL REAR MIRROR
-Not for RHD
Superseded
Location: 8 Prev | Next Part: 62830910 *Qty: 1 R.H. EXTERNAL REAR MIRROR
-Valid for USA and CDN
$3,018.24
Location: 8 Prev | Next Part: 62867510 *Qty: 1 R.H. EXTERNAL REAR MIRROR
-Valid for RHD
$3,018.24
Location: 8 Prev | Next Part: 62867610 *Qty: 1 L.H. EXTERNAL REAR MIRROR
-Valid for RHD
-Not for AUS
$3,018.24
Location: 8 Prev | Next Part: 63231110 *Qty: 1 L.H. EXTERNAL REAR MIRROR
-Valid for AUS
$3,018.24
Location: 9 Prev | Next Part: 64298600 *Qty: 1 R.H. MIRROR GASKET $21.76
Location: 9 Prev | Next Part: 64298700 *Qty: 1 L.H. MIRROR GASKET $21.76
Location: 10 Prev | Next Part: 62188700 *Qty: 1 R.H. INNER PLATE Call
Location: 10 Prev | Next Part: 62188800 *Qty: 1 L.H. INNER PLATE Call
Location: 11 Prev | Next Part: 12673107 *Qty: 4 SCREW Call
Location: 12 Prev | Next Part: 14115580 *Qty: 4 BLOCK $0.90
Location: 13 Prev | Next Part: 12643724 *Qty: 6 WASHER Superseded
Location: 14 Prev | Next Part: 102948 *Qty: 6 NUT $0.90
Location: 15 Prev | Next Part: 62183000 *Qty: 1 L.H. DOOR
-Valid for USA, CDN, AUS and SA
-Not for 348 COMP.
$1,974.11
Location: 15 Prev | Next Part: 62098400 *Qty: 1 R.H. DOOR
-Not for USA, CDN, AUS and SA
-Not for 348 COMP.
$2,574.89
Location: 15 Prev | Next Part: 62098500 *Qty: 1 L.H. DOOR
-Not for USA, CDN, AUS and SA
-Not for 348 COMP.
$2,574.89
Location: 15 Prev | Next Part: 64404200 *Qty: 1 R.H. DOOR
-Valid for 348 COMP.
$14,191.79
Location: 15 Prev | Next Part: 64404300 *Qty: 1 L.H. DOOR
-Valid for 348 COMP.
$13,645.95
Location: 15 Prev | Next Part: 62182900 *Qty: 1 R.H. DOOR
-Valid for USA, CDN, AUS and SA
-Not for 348 COMP.
$2,391.95
Location: 16 Prev | Next Part: 13832101 *Qty: 4 NUT $0.90
Location: 17 Prev | Next Part: 62098600 *Qty: 1 R.H. DOOR INNER FRAMEWORK $215.76
Location: 17 Prev | Next Part: 62098700 *Qty: 1 L.H. DOOR INNER FRAMEWORK $215.76
Location: 18 Prev | Next Part: 13832101 *Qty: 2 NUT $0.90
Location: 19 Prev | Next Part: 62153000 *Qty: 2 GRILL LOWER GASKET $21.59
Location: 20 Prev | Next Part: 14441437 *Qty: 8 SCREW Call
Location: 21 Prev | Next Part: 62929510 *Qty: 1 R.H. DOOR GRILL
-Valid for 348 COMP.
$1,999.30
Location: 21 Prev | Next Part: 62929700 *Qty: 1 L.H. DOOR GRILL
-Valid for 348 COMP.
Call
Location: 21 Prev | Next Part: 62118210 *Qty: 1 R.H. DOOR GRILL
-Not for 348 COMP.
Call
Location: 21 Prev | Next Part: 62118310 *Qty: 1 L.H. DOOR GRILL
-Not for 348 COMP.
$2,425.29
Location: 22 Prev | Next Part: 14190190 *Qty: 8 NUT $2.18
Location: 23 Prev | Next Part: 62152900 *Qty: 2 GRILL PROFILE GASKET $9.00
Location: 24 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 25 Prev | Next Part: 63394500 *Qty: 1 R.H. REAR CARPET SHIELD $9.56
Location: 25 Prev | Next Part: 63394600 *Qty: 1 L.H. REAR CARPET SHIELD $9.56
Location: 26 Prev | Next Part: 15913508 *Qty: 4 SCREW $0.90
Location: 27 Prev | Next Part: 63239400 *Qty: 2 GASKET Superseded
Location: 28 Prev | Next Part: 13836371 *Qty: 12 SCREW $1.45
Location: 29 Prev | Next Part: 14624587 *Qty: 2 PLUG $0.90
Location: 30 Prev | Next Part: 62649900 *Qty: 2 GRILL UPPER GASKET $20.36
Location: 31 Prev | Next Part: 63345600 *Qty: 2 GASKET Call
Location: 32 Prev | Next Part: 14304387 *Qty: 2 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
