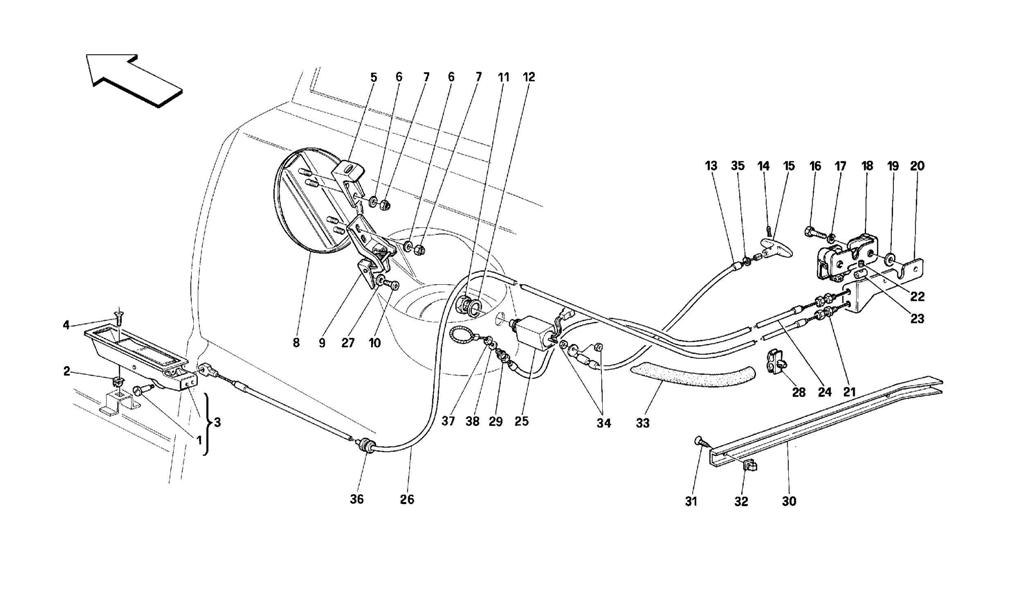

OPENING DEVICES FOR REAR HOOD AND GAS DOOR

Location Part # Quantity* Description Price Add To Cart
1 62552200 1 PIN FOR CABLE FASTENING $25.86
2 14115980 1 BLOCK Unavailable
3 62551900 1 OPENING HANDLE FOR ENGINE HOOD $776.45
4 15916977 1 SCREW Unavailable
5 60538100 1 STRIKER PLATE FOR GAS UNION DOOR Unavailable
6 12638124 4 WASHER $0.90
7 169180 4 NUT Unavailable
8 62075200 1 FUEL INLET LID $103.14
9 62370400 1 HINGE FOR GAS UNION DOOR Unavailable
10 13274011 2 SCREW Unavailable
11 60538800 1 RING NUT $10.64
12 60772600 1 WASHER Unavailable
13 62830400 1 SAFETY CABLE FOR GAS UNION DOOR $12.04
14 60711000 1 CLIP Unavailable
15 60710900 1 EMERGENCY HANDLE Unavailable
16 10903024 2 SCREW Unavailable
17 10615474 2 WASHER Unavailable
18 60277407 1 ENGINE BONNET LOCK Unavailable
19 12644424 2 WASHER Unavailable
20 62616400 1 BRACKET
-Valid for RHD 		$5.77
20 62616300 1 BRACKET-Vale per RHD $6.54
21 62828900 2 REGISTER FOR LOCK CABLES $119.04
22 60276805 1 DOWEL Unavailable
23 60276607 1 CONNECTION $46.57
24 62829800 1 SAFETY LOCK CABLE FOR ENGINE HOOD
-Not for RHD 		$17.07
24 62991500 1 SAFETY LOCK CABLE FOR ENGINE HOOD
-Valid for RHD 		$34.49
25 60868600 1 ELECTRO-MAGNET Unavailable
26 62829500 1 CABLE FOR ENGINE HOOD OPENING
-Not for USA 		$24.14
26 63309500 1 CABLE FOR MOTOR BONNET OPENING
-Valid for USA 		$49.84
27 12605270 2 WASHER Unavailable
28 62854300 3 CLIP Unavailable
29 62828900 1 REGISTER FOR LOCK CABLES $119.04
30 62950700 1 CABLES PROTECTION $21.13
31 15917177 2 SCREW Unavailable
32 14115885 2 BLOCK Unavailable
33 62950900 1 PROTECTION SHEATH Unavailable
34 16101711 2 NUT Unavailable
35 11087676 1 FLEXIBLE RING Unavailable
36 10396380 1 CABLE GROMMET Unavailable
37 15896470 1 NUT Unavailable
38 14496301 1 WASHER $1.91

* Quantity shown indicates the number of pieces used in the diagram.
