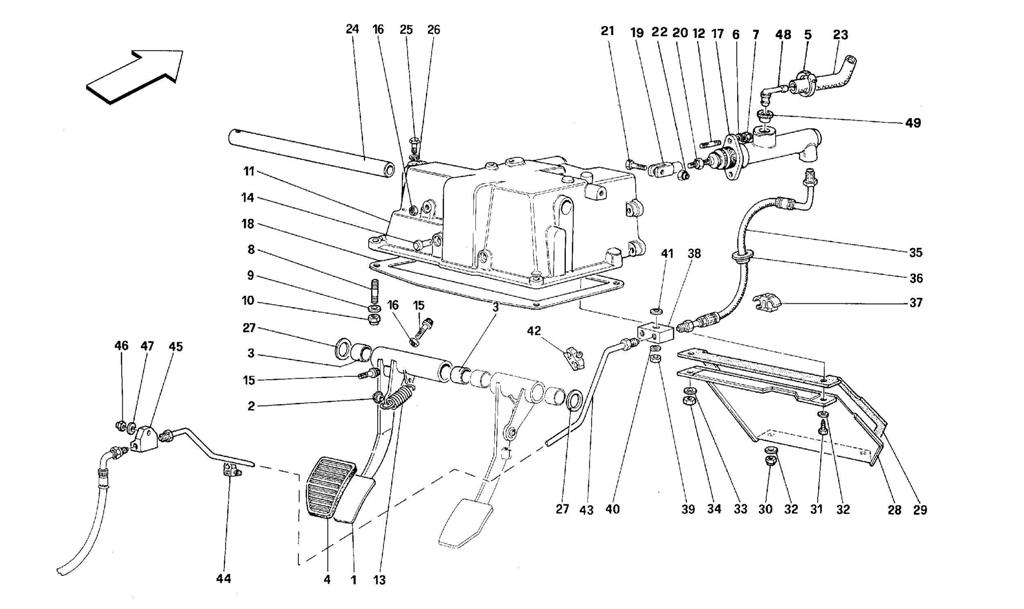

CLUTCH RELEASE CONTROL -VALID FOR RHD-

Go to Split View

CLUTCH RELEASE CONTROL -VALID FOR RHD-

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 149868 *Qty: 1 CLUTCH PEDAL $185.84
Location: 2 Prev | Next Part: 109407 *Qty: 1 BALL JOINT $24.12
Location: 3 Prev | Next Part: 103163 *Qty: 2 BUSHING $3.80
Location: 4 Prev | Next Part: 149295 *Qty: 1 PEDAL SLAB $74.83
Location: 5 Prev | Next Part: 157934 *Qty: 2 SCREW COLLAR Superseded
Location: 6 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 133215 *Qty: 2 NUT $3.75
Location: 8 Prev | Next Part: 13516824 *Qty: 4 STUD $0.90
Location: 9 Prev | Next Part: 14499401 *Qty: 4 WASHER $0.90
Location: 10 Prev | Next Part: 16104121 *Qty: 4 NUT Superseded
Location: - Prev | Next Part: 148261 *Qty: 1 COMPLETE PEDAL SUPPORT $837.95
Location: 11 Prev | Next Part: ------ *Qty: 1 PEDAL SUPPORT
-Not as spare part-
-With complete pedal support-
Call
Location: 12 Prev | Next Part: 13516824 *Qty: 2 STUD $0.90
Location: 13 Prev | Next Part: 101305 *Qty: 1 SPRING $5.25
Location: 14 Prev | Next Part: 129612 *Qty: 1 PIN $2.68
Location: 15 Prev | Next Part: 144011 *Qty: 2 PEDAL ADJUSTEMENT CAP $4.83
Location: 16 Prev | Next Part: 16102314 *Qty: 2 NUT $0.90
Location: 17 Prev | Next Part: 175211 *Qty: 1 CLUTCH PUMP $300.72
Location: 18 Prev | Next Part: 129615 *Qty: 1 GASKET $14.30
Location: 19 Prev | Next Part: 10248271 *Qty: 1 FORK $18.35
Location: 20 Prev | Next Part: 16102314 *Qty: 1 NUT $0.90
Location: 21 Prev | Next Part: 130926 *Qty: 1 SCREW $7.90
Location: 22 Prev | Next Part: 16104411 *Qty: 1 NUT $0.90
Location: 23 Prev | Next Part: 134903 *Qty: 1 PIPE FROM PUMP TO TANK $3.84
Location: 24 Prev | Next Part: 131319 *Qty: 1 PEDAL FASTENING PIN $129.41
Location: 25 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 26 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 27 Prev | Next Part: 106083 *Qty: 2 SPACER WASHER 1.0 mm $0.90
Location: - Prev | Next Part: 113833 *Qty: 2 SPACER WASHER 1.1 mm $2.82
Location: - Prev | Next Part: 113834 *Qty: 2 SPACER WASHER 1.2 mm $2.82
Location: - Prev | Next Part: 113835 *Qty: 2 SPACER WASHER 1.3 mm $0.90
Location: - Prev | Next Part: 113836 *Qty: 2 SPACER WASHER 1.4 mm $1.21
Location: 28 Prev | Next Part: 62164600 *Qty: 1 PEDAL SUPPORT GUARD $103.01
Location: 29 Prev | Next Part: 62697800 *Qty: 1 GASKET $11.11
Location: 30 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 31 Prev | Next Part: 15925601 *Qty: 1 SCREW $0.90
Location: 32 Prev | Next Part: 12646601 *Qty: 3 WASHER $0.90
Location: 33 Prev | Next Part: 14499401 *Qty: 1 WASHER $0.90
Location: 34 Prev | Next Part: 16104121 *Qty: 1 NUT Superseded
Location: 35 Prev | Next Part: 140669 *Qty: 1 HOSE $323.34
Location: 36 Prev | Next Part: 105369 *Qty: 1 CABLE GROMMET $1.54
Location: 37 Prev | Next Part: 141699 *Qty: 1 CLIP $1.07
Location: 38 Prev | Next Part: 139375 *Qty: 1 UNION $58.10
Location: 39 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 40 Prev | Next Part: 12639701 *Qty: 1 WASHER Call
Location: 41 Prev | Next Part: 143041 *Qty: 1 SPACER $0.90
Location: 42 Prev | Next Part: 141522 *Qty: 9 CLIP $1.83
Location: 43 Prev | Next Part: 140666 *Qty: 1 INTERMEDIATE TUBE $108.55
Location: 44 Prev | Next Part: 141521 *Qty: 2 CLIP $1.83
Location: 45 Prev | Next Part: 139471 *Qty: 1 UNION $37.62
Location: 46 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 47 Prev | Next Part: 12639701 *Qty: 1 WASHER Call
Location: 48 Prev | Next Part: 184497 *Qty: 1 PUMP INLET UNION $37.84
Location: 49 Prev | Next Part: 175189 *Qty: 1 SEALING RING FOR UNION $21.64

* Quantity shown indicates the number of pieces used in the diagram.
