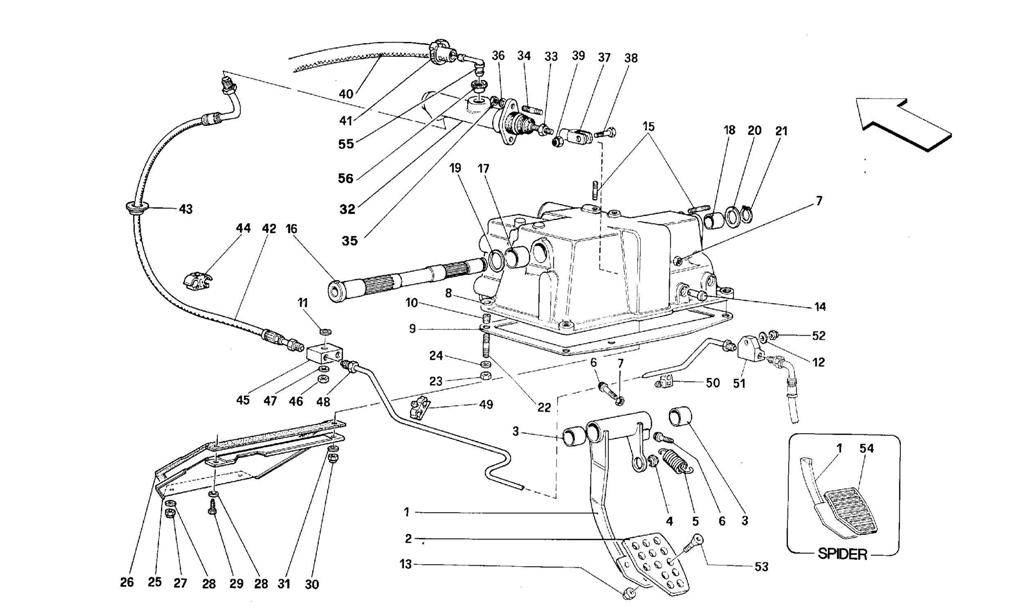

CLUTCH RELEASE CONTROL -NOT FOR RHD-

Location Part # Quantity* Description Price Add To Cart
1 157268 1 CLUTCH PEDAL
-Not for Spider- 		Unavailable
- 149293 1 CLUTCH PEDAL
-Valid for Spider- 		$282.80
2 157273 1 PEDAL SLAB
-Not for Spider- 		$78.01
3 103163 2 BUSHING $8.51
4 109407 1 JOINT $75.90
5 101305 1 SPRING Unavailable
6 144011 2 PIN Unavailable
7 16102314 2 NUT Unavailable
- 147690 1 COMPLETE PEDAL SUPPORT $9,971.34
8 ------ 1 PEDAL SUPPORT
-Not as spare part-
-With complete pedal support- 		Unavailable
9 129615 1 GASKET $18.96
10 13525770 2 THREADED INSERT Unavailable
11 143041 1 SPACER Unavailable
12 12639701 1 WASHER Unavailable
13 15896214 2 NUT Unavailable
14 129612 1 PIN $3.19
15 11500124 4 STUD Unavailable
16 129613 1 PEDALS SUPPORT PIN $1,939.87
17 101314 1 BUSHING $5.62
18 112153 1 BUSHING $4.85
19 112125 1 SPACER WASHER $2.72
20 112127 1 WASHER 0.9 mm
-Possible fitting- 		Unavailable
- 112128 1 WASHER 1.0 mm
-Possible fitting- 		$44.17
- 112129 1 WASHER 1.1 mm
-Possible fitting- 		Unavailable
- 112130 1 WASHER 1.2 mm
-Possible fitting- 		Unavailable
- 112131 1 WASHER 1.3 mm
-Possible fitting- 		Unavailable
21 11066676 1 SEEGER RING Unavailable
22 13516821 4 STUD Superseded
23 16104121 4 NUT Superseded
24 14499401 4 WASHER Unavailable
25 62877200 1 PEDAL SUPPORT PROTECTION $431.35
26 62694400 1 GASKET $13.44
27 102948 2 NUT Superseded
28 12646601 3 WASHER Unavailable
29 15925601 1 SCREW Unavailable
30 16104121 1 NUT Superseded
31 14499401 1 WASHER Unavailable
32 175211 1 CLUTCH PUMP $389.74
33 16102314 1 NUT Unavailable
34 13516821 2 STUD Superseded
35 133215 2 NUT Superseded
36 12638524 2 WASHER $0.90
37 10248271 1 FORK Unavailable
38 130926 1 SCREW $9.58
39 16104411 1 NUT $2.33
40 151845 1 PIPE $69.00
41 157934 2 SCREW COLLAR Superseded
42 140669 1 HOSE $236.54
43 105369 1 CABLE GROMMET $30.55
44 141699 1 CLIP $1.28
45 139375 1 UNION $74.00
46 102741 1 NUT $0.90
47 12639701 1 WASHER Unavailable
48 140666 1 INTERMEDIATE TUBE $139.85
49 141522 9 CLIP Unavailable
50 141521 2 CLIP Unavailable
51 139471 1 UNION $48.29
52 102741 1 NUT $0.90
53 14441324 2 SCREW Unavailable
54 149295 1 PEDAL SLAB
-Valid for Spider- 		$119.22
55 184497 1 PUMP INLET UNION Unavailable
56 175189 1 SEALING RING FOR UNION $27.59

* Quantity shown indicates the number of pieces used in the diagram.
