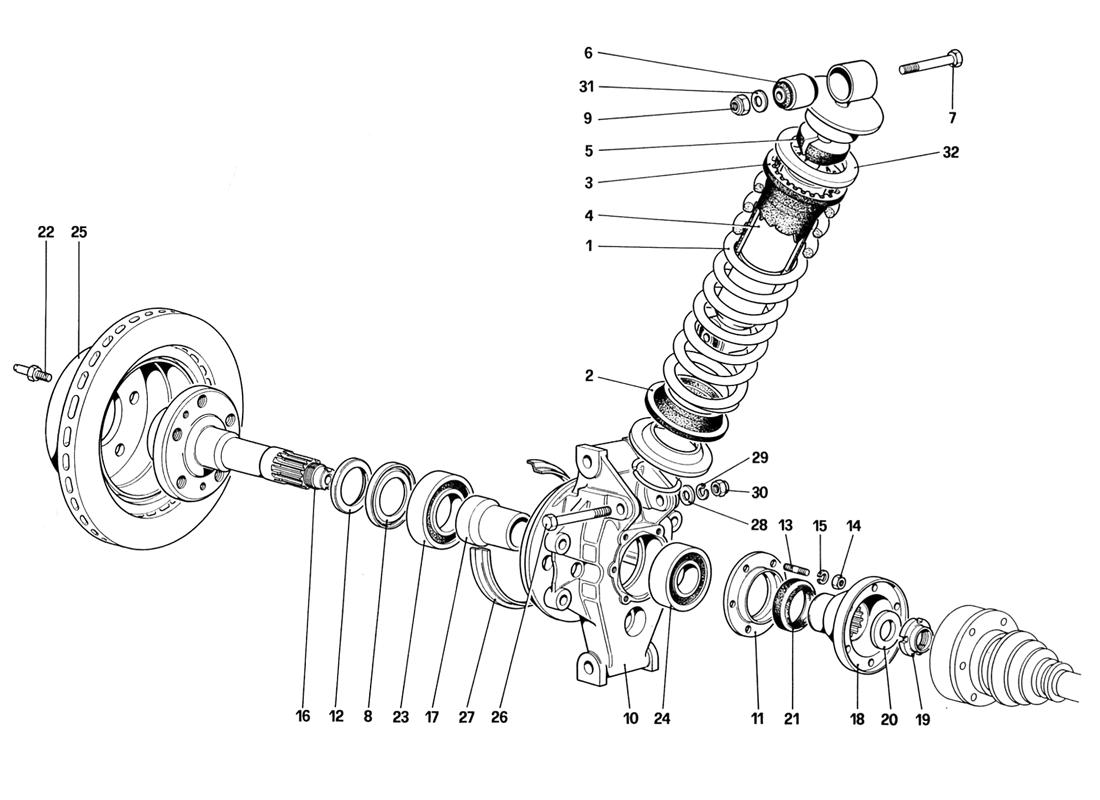

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UP TO CAR NO. 76625)

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UP TO CAR NO. 76625)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 112971 *Qty: 2 Suspension spring $462.74
Location: 2 Prev | Next Part: 103264 *Qty: 2 Lower spacer Unavailable
Location: 4 Prev | Next Part: 128178 *Qty: 2 Shock absorber $829.50
Location: 5 Prev | Next Part: 104442 *Qty: 2 Pad
No spare
Unavailable
Location: 6 Prev | Next Part: 100809 *Qty: 4 Estendblock $18.07
Location: 7 Prev | Next Part: 127849 *Qty: 2 Bolt Superseded
Location: 8 Prev | Next Part: 124966 *Qty: 2 Centrifugal ring $33.82
Location: 9 Prev | Next Part: 16105121 *Qty: 2 Nut Superseded
Location: 10 Prev | Next Part: 129819 *Qty: 2 Hub holder $1,664.11
Location: 11 Prev | Next Part: 125976 *Qty: 2 Flange for bearing $59.86
Location: 12 Prev | Next Part: 124965 *Qty: 2 Spacer $48.73
Location: 13 Prev | Next Part: 13543321 *Qty: 12 Stud Superseded
Location: 14 Prev | Next Part: 16100821 *Qty: 12 Nut Unavailable
Location: 15 Prev | Next Part: 106852 *Qty: 12 Washer Superseded
Location: 16 Prev | Next Part: 124964 *Qty: 2 Shaft with rear hub $2,246.25
Location: 17 Prev | Next Part: 120876 *Qty: 2 Spacer $106.26
Location: 18 Prev | Next Part: 119372 *Qty: 2 Flange connecting axle shafts $188.37
Location: 19 Prev | Next Part: 102289 *Qty: 2 Ring nut $40.00
Location: 20 Prev | Next Part: 105511 *Qty: 2 Washer $13.25
Location: 21 Prev | Next Part: 115968 *Qty: 2 Sealing ring $117.92
Location: 22 Prev | Next Part: 104370 *Qty: 4 Centering screw $0.90
Location: 23 Prev | Next Part: 125935 *Qty: 2 Outer bearing Superseded
Location: 24 Prev | Next Part: 125934 *Qty: 2 Inner bearing Superseded
Location: 25 Prev | Next Part: 117186 *Qty: 2 Brake disc $446.63
Location: 26 Prev | Next Part: 106290 *Qty: 2 Bolt $27.52
Location: 27 Prev | Next Part: 103117 *Qty: 2 Splash guard $14.39
Location: 28 Prev | Next Part: 106616 *Qty: 2 Washer $1.51
Location: 29 Prev | Next Part: 106854 *Qty: 2 Washer Superseded
Location: 30 Prev | Next Part: 16103621 *Qty: 2 Nut $0.90
Location: 31 Prev | Next Part: 106616 *Qty: 2 Washer $1.51
Location: 32 Prev | Next Part: 129435 *Qty: 2 Spacer - For US GTS $53.77

* Quantity shown indicates the number of pieces used in the diagram.
