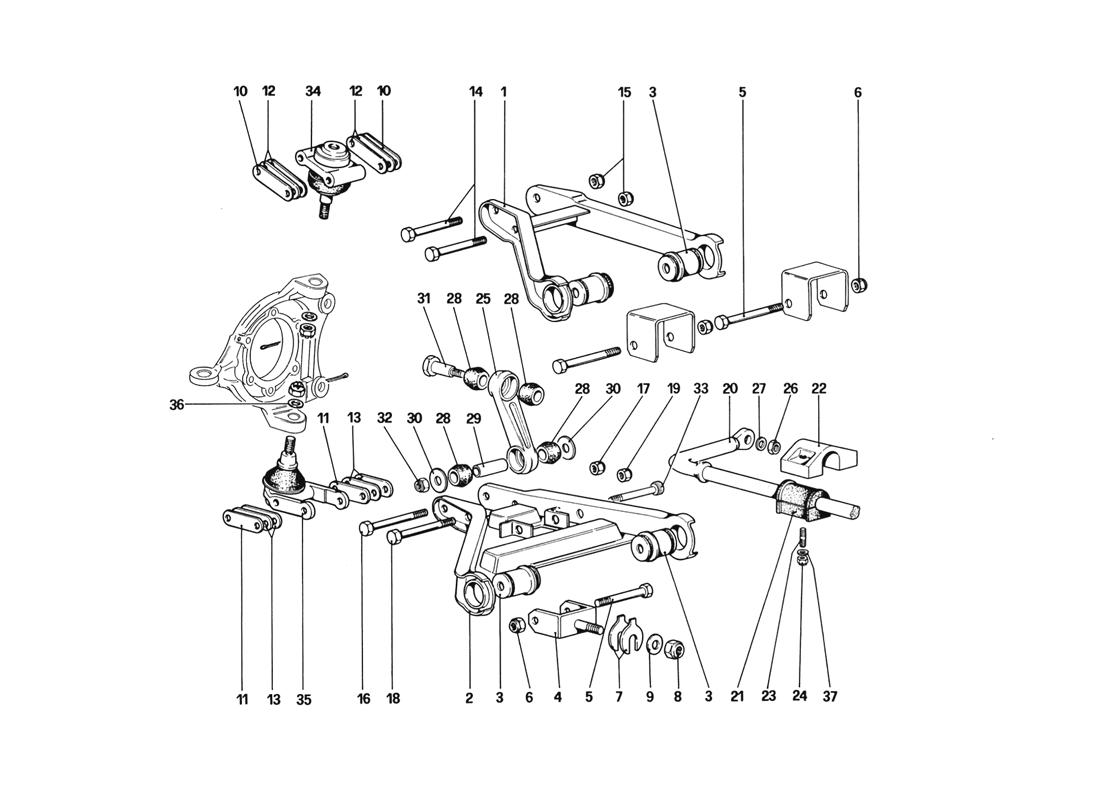

FRONT SUSPENSION - WISHBONES (STARTING FROM CAR NO. 76626)

Location Part # Quantity* Description Price Add To Cart
1 131900 1 Upper lever, right $342.34
1 131901 1 Upper lever, left $260.55
2 115706 1 Lower lever, right $458.35
3 104398 8 Flamblock for levers Superseded
4 112807 4 Lower fork $261.77
5 106419 8 Bolt $50.22
6 16105121 8 Nut Superseded
7 107418 8 Ditto, thickness 1,5 mm. Superseded
7 107419 8 Ditto, thickness 2 mm. Superseded
7 107420 8 Ditto, thickness 2,5 mm. Superseded
7 107421 8 Ditto, thickness 3 mm. Superseded
7 107422 8 Ditto, thickness 3,25 mm. Superseded
7 107025 8 Shim for lower fork, thickness 1 mm.(possible fitting) Superseded
8 12575821 4 Nut Superseded
9 101041 4 Washer Unavailable
10 115072 8 Upper adjusting plate for caster angle (possible fitting) $41.31
11 115073 8 Lower adjusting plate for caster angle (possible fitting) $2.11
12 103256 8 Upper adjusting plate $7.63
13 101022 8 Lower adjusting plate $1.97
14 15971621 4 Bolt Unavailable
15 12574521 4 Nut $1.22
16 15971621 2 Bolt Unavailable
17 12574521 2 Nut $1.22
18 15541531 2 Bolt $8.10
19 16105121 2 Nut Superseded
20 139547 1 Stabilizer rod - For RHD $419.05
20 136166 1 Stabilizer rod - Not for RHD $519.86
21 130533 2 Pad $96.61
22 130532 2 Support Superseded
23 13516821 4 Stud Superseded
24 16104411 4 Nut $2.33
25 114691 2 Rod link $1,012.81
26 16103621 2 Nut Unavailable
27 106854 2 Washer Superseded
28 100984 8 Grommet for rod Unavailable
29 100985 2 Spacer tube $41.70
30 105334 4 Washer $52.82
31 121679 2 Pin $145.67
32 16105121 2 Nut Superseded
33 116966 2 Screw $18.70
34 116280 2 Upper ball joint $413.75
35 133944 2 Lower ball joint $873.85
36 101445 2 Washer Unavailable
37 102683 4 Washer $19.55

* Quantity shown indicates the number of pieces used in the diagram.
