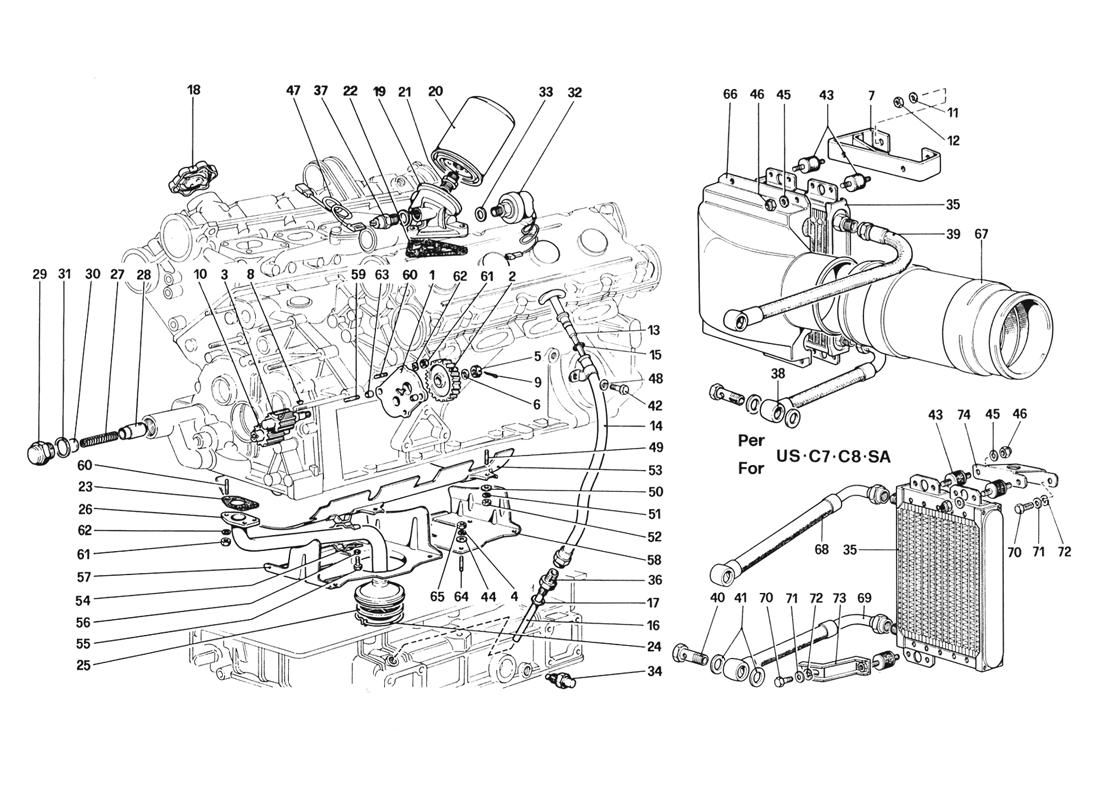

LUBRICATION SYSTEM

LUBRICATION SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 109300 1 Cover for oil pump $265.52
2 117659 1 Control gear $318.51
4 106849 8 Spring washer Superseded
5 102900 1 Nut $13.22
6 11198570 1 Washer Unavailable
7 114735 1 Radiator support $63.68
8 10205620 1 Tongue Unavailable
9 10734301 1 Split pin Unavailable
10 109308 1 Driven gear Unavailable
11 14496501 2 Washer Unavailable
12 16104111 2 Nut Superseded
13 105657 1 Oil level rod Unavailable
14 120001 1 Hose for level rod - Not for C7 and C8 Unavailable
14 132483 1 Hose for level rod - For C7 and C8 Unavailable
15 100317 1 Sealing ring $1.40
16 107868 1 Pipe Unavailable
17 10259960 1 Gasket $0.90
18 103936 1 Cap $146.99
19 123863 1 Filter base $291.22
20 111782 1 Oil cartridge Superseded
21 121246 1 Union $159.09
22 135120 1 Gasket - For C8 Superseded
22 123869 1 Gasket - Not for C8 Superseded
23 103942 1 Gasket - Not for C8 Superseded
23 134961 1 Gasket - For C8 $3.92
24 103944 1 Sealing ring $122.51
25 100332 1 Filter $24.77
26 105998 1 Suction pipe Up to engime no. 1391 Eur. 685 USA Unavailable
26 129551 1 Suction pipe - From engine no. 1392 Eur. 686 USA Unavailable
27 133550 1 Spring for pressure adjusting valve $72.76
28 125885 1 Piston $218.18
29 106237 1 Plug Unavailable
30 135679 1 Spacer $3.37
31 10264660 1 Gasket $5.64
32 122592 1 Transmitter Unavailable
33 10259960 1 Gasket $0.90
34 107576 1 Thermistor Unavailable
35 135774 1 Oil radiator - From car no. 75272 Unavailable
35 126917 1 Oil radiator - Until car no. 75271 Superseded
36 102668 1 Union $94.99
37 110664 1 Switch for oil pressure warning light $36.80
38 126912 1 Hose from cooler to crankcase Superseded
39 126913 1 Hose from cooler to filler support Superseded
40 123881 2 Union $41.49
41 10246160 4 Gasket $1.04
42 10902011 1 Screw Unavailable
43 102947 3 Vibration damping support $17.42
44 12638101 8 Washer Superseded
45 14496401 3 Washer Superseded
46 12575411 3 Nut Superseded
47 112388 1 Switch cable $6.78
48 12601271 1 Washer Superseded
49 13516521 4 Stud on crankcase Unavailable
50 10519601 4 Washer Superseded
51 10516671 4 Split washer Superseded
52 16102311 4 Nut Superseded
53 103929 1 Upper protection plate $188.95
54 103933 1 Fixing bracket $14.66
55 10977710 2 Bolt Superseded
56 11195471 2 Washer Superseded
57 107073 1 Front lower bulkhead Unavailable
58 107074 1 Rear lower bulkhead Unavailable
59 13541121 2 Long stud Superseded
60 13540821 5 Short stud Superseded
61 15896211 7 Nut Superseded
62 11197771 7 Washer Superseded
63 102725 2 Dowel $1.36
64 13539021 8 Stud for protection Superseded
65 15896411 8 Nut Superseded
66 127035 1 Conveyor - Until car no. 75271 $436.10
66 136035 1 Conveyor - From car no. 75272 $481.52
67 136008 1 Bellows - For conveyor no. 136035 Unavailable
67 107533 1 Bellows - For conveyor no. 127035 $161.10
68 128239 1 Hose from cooler to filter support - Until car no. 77132 Unavailable
68 136939 1 Hose from cooler to filter support - Starting from car no. 77133 $698.00
69 128238 1 Hose from cooler to crankase Unavailable
70 10902021 1 Screw Superseded
71 127494 1 Washer $0.90
72 12644401 1 Washer Superseded
73 119168 1 Radiator support - Until car no. 77132 $32.97
73 136941 1 Radiator support - Starting from car no. 77133 $28.44
74 136942 1 Radiator support - Starting from car no. 77133 $19.91

* Quantity shown indicates the number of pieces used in the diagram.
