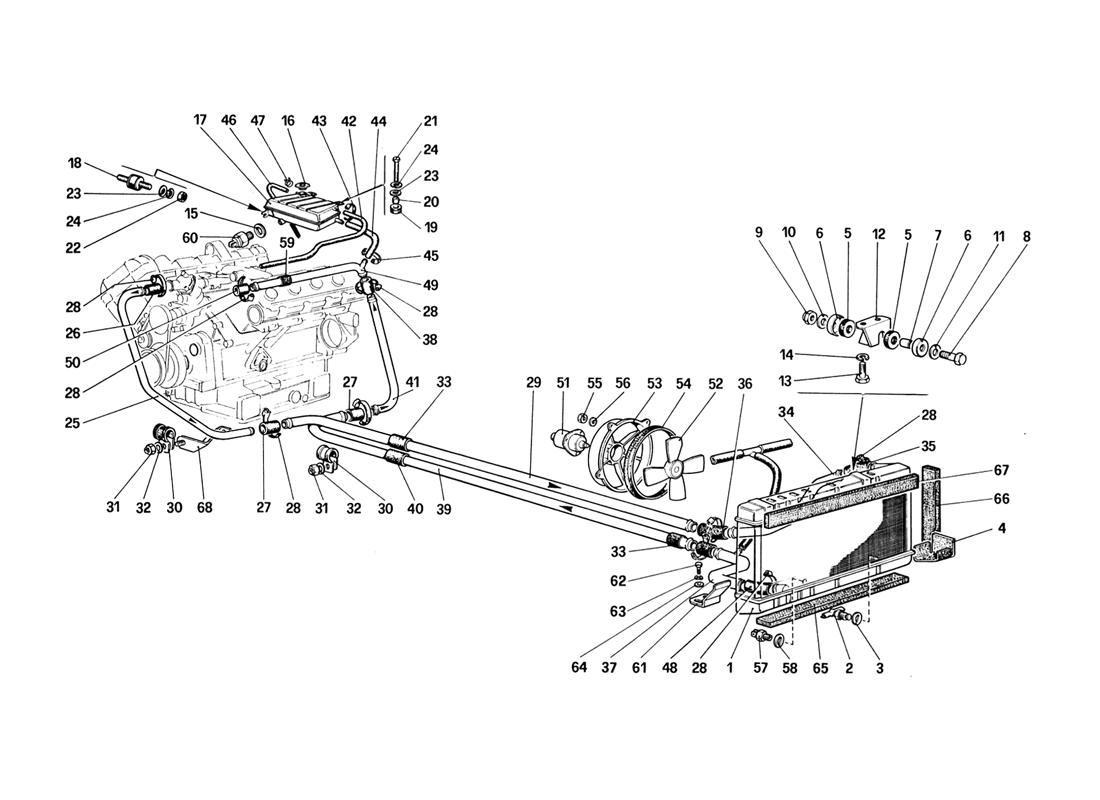

COOLING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 126879 1 Water radiator Unavailable
2 101488 1 Water drain cock $252.07
4 117994 2 Rubber shim, vibration damping $60.29
5 107978 4 Pad $15.35
6 107979 4 Cup $14.90
7 107980 2 Spacer $8.20
8 16043821 2 Screw Superseded
9 16104411 2 Nut $2.33
10 112761 2 Washer Superseded
11 108292 2 Washer Unavailable
12 117995 2 Bracket $40.21
13 16043021 4 Screw Unavailable
14 11194071 4 Washer Unavailable
15 10260060 1 Gasket - For US $1.58
16 101499 1 Plug for tank Superseded
17 120273 1 Expansion tank - Not for US and CH $1,133.47
17 121647 1 Expansion tank - For US Unavailable
17 130641 1 Expansion tank - For CH $705.12
18 102947 1 Vibration - damping support $20.69
19 103549 2 Vibration - damping bushing $1.81
20 103550 2 Spacer $8.49
21 10902421 2 Screw Superseded
22 15896211 1 Nut Superseded
23 12643701 3 Washer Superseded
24 106850 3 Washer Superseded
25 108042 1 Rear pipe, R.H. - For RHD use no. 108053 Unavailable
26 122817 1 Sleeve - For RHD use no. 102957 $43.08
27 105190 2 Sleeve $32.95
28 12177090 18 Clamp Superseded
29 108081 1 Central pipe delivery to radiator - For RHD use no. 108082 Unavailable
30 107002 2 Clamp $36.52
31 12574211 2 Nut Superseded
32 12643701 2 Washer Superseded
33 105385 3 Vibration damping sleeve $56.07
34 127393 1 Front pipe delivery to radiator - After exhaustion use no. 137962 - For RHD use no. 137963 $376.10
35 122817 1 Sleeve - For RHD use no. 102956 $43.08
36 102957 1 Sleeve Superseded
37 118636 1 Return pipe, front - For RHD use no. 109504 Unavailable
38 102957 2 Sleeve Superseded
39 108082 1 Return pipe, central $177.64
40 107465 1 Vibration damping sleeve Unavailable
41 118795 1 Rear pipe, L.H. - For RHD use no. 120497 Unavailable
42 122218 1 Breather pipe, engine to water reservoir $49.41
43 12179490 2 Clamp Superseded
44 122221 1 Feeding pipe, expansion tank to engine Unavailable
45 12179990 2 Clamp Superseded
46 126292 1 Breather pipe Unavailable
47 13423379 1 Clamp Unavailable
48 122817 1 Sleeve - For RHD use no. 102957 $43.08
49 115136 1 Pipe between heads Unavailable
50 122817 1 Sleeve $43.08
51 117546 2 Electric fan motor Unavailable
52 122953 2 Fan Unavailable
53 60870300 2 Conveyor Unavailable
54 126883 2 Gasket $27.67
55 12574211 8 Nut Superseded
56 12643701 8 Washer Superseded
57 101507 1 Thermocontact Superseded
58 101508 1 Gasket $1.66
59 105385 1 Sleeve $56.07
60 121777 1 Thermostat - For US $303.04
61 130113 2 Bracket $29.86
62 10902211 4 Screw Unavailable
63 12646701 4 Washer Superseded
64 127494 4 Washer $0.90
65 60773400 1 Gasket Unavailable
66 61980300 2 Gasket $31.38
67 62369000 1 Gasket $48.30
68 129642 1 Bracket - For US Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
