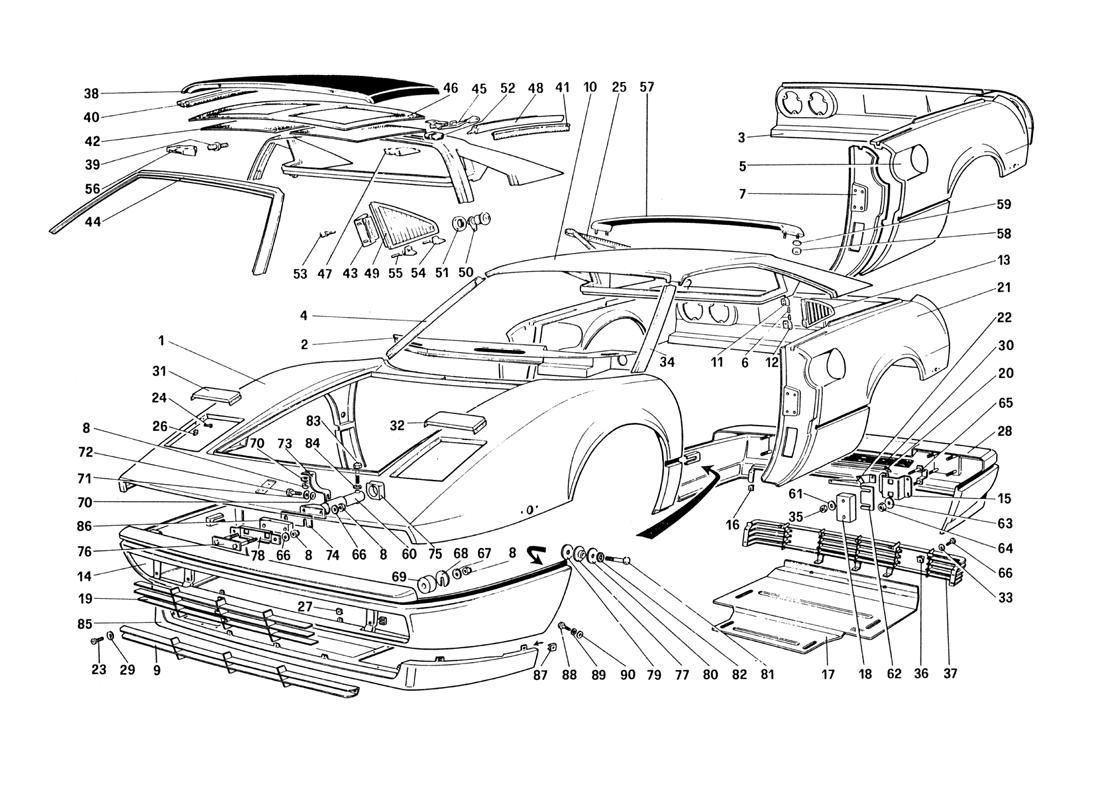

BODY SHELL - OUTER ELEMENTS (FOR U.S. AND SA VERSION)

Go to Split View

BODY SHELL - OUTER ELEMENTS (FOR U.S. AND SA VERSION)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61778000 *Qty: 1 Front panel Unavailable
Location: 2 Prev | Next Part: 61797700 *Qty: 1 Panel $226.26
Location: 4 Prev | Next Part: 61141100 *Qty: 1 Panel for R.H. post. GTB Superseded
Location: 5 Prev | Next Part: 60359007 *Qty: 1 Rear fender, L.H. GTS
For SA
$3,008.56
Location: 5 Prev | Next Part: 60585800 *Qty: 1 Rear fender, L.H. GTB Superseded
Location: 5 Prev | Next Part: 60358900 *Qty: 1 Rear fender, R.H. GTS
For SA
$3,099.34
Location: 5 Prev | Next Part: 60585900 *Qty: 1 Rear fender, R.H. GTS
U.S. Version
Superseded
Location: 5 Prev | Next Part: 60585700 *Qty: 1 Rear fender, R.H. GTB Superseded
Location: 5 Prev | Next Part: 60586000 *Qty: 1 Rear fender, L.H. GTS
U.S. Version
Unavailable
Location: 6 Prev | Next Part: 60042108 *Qty: 2 Hinge pin, GTB $2.29
Location: 7 Prev | Next Part: 60216900 *Qty: 1 L.H. pillar for fender $153.36
Location: 7 Prev | Next Part: 60216801 *Qty: 1 R.H. pillar for fender $153.36
Location: 8 Prev | Next Part: 12574511 *Qty: 12 Nut Superseded
Location: 9 Prev | Next Part: 61797300 *Qty: 1 Under grill Unavailable
Location: 10 Prev | Next Part: 60214806 *Qty: 1 Roof panel GTB $6,956.23
Location: 11 Prev | Next Part: 60040805 *Qty: 1 Upper hinge GTB $42.96
Location: 12 Prev | Next Part: 60040706 *Qty: 1 Lower hinge GTB Unavailable
Location: 13 Prev | Next Part: 60337409 *Qty: 1 L.H. grill GTB Unavailable
Location: 13 Prev | Next Part: 60370004 *Qty: 1 R.H. grill GTB $267.47
Location: 14 Prev | Next Part: 61747400 *Qty: 1 Front lower panel Unavailable
Location: 15 Prev | Next Part: 61736300 *Qty: 2 Bracket $99.39
Location: 16 Prev | Next Part: 61787900 *Qty: 9 Clip Superseded
Location: 17 Prev | Next Part: 61881000 *Qty: 1 Plate for exhaust silencer Unavailable
Location: 18 Prev | Next Part: 61791900 *Qty: 2 Pad $37.58
Location: 19 Prev | Next Part: 61736800 *Qty: 1 Grill for radiator Unavailable
Location: 20 Prev | Next Part: 61923600 *Qty: 1 Angle for grill fixing $42.46
Location: 21 Prev | Next Part: 61874800 *Qty: 1 Rear panel GTS $5,981.51
Location: 21 Prev | Next Part: 61874500 *Qty: 1 Rear panel GTB $4,436.74
Location: 22 Prev | Next Part: - *Qty: 1 L.H. bracket Unavailable
Location: 22 Prev | Next Part: - *Qty: 1 R.H. bracket Unavailable
Location: 23 Prev | Next Part: 15688178 *Qty: 8 Screw $2.01
Location: 24 Prev | Next Part: 15903878 *Qty: 8 Screw Unavailable
Location: 25 Prev | Next Part: 60528300 *Qty: 2 Gasket $12.54
Location: 26 Prev | Next Part: 60879600 *Qty: 8 Clip $3,237.32
Location: 27 Prev | Next Part: 60696300 *Qty: 8 Clip Unavailable
Location: 28 Prev | Next Part: 61735900 *Qty: 1 Rear lower panel Superseded
Location: 29 Prev | Next Part: 10519306 *Qty: 8 Washer $0.90
Location: 30 Prev | Next Part: 61918300 *Qty: 1 Net Unavailable
Location: 31 Prev | Next Part: 61810800 *Qty: 1 R.H. cover Superseded
Location: 32 Prev | Next Part: 61810900 *Qty: 1 L.H. cover Superseded
Location: 33 Prev | Next Part: 12637808 *Qty: 9 Washer Unavailable
Location: 34 Prev | Next Part: 61141200 *Qty: 1 Covering for L.H. post. GTB $216.21
Location: 35 Prev | Next Part: 12574511 *Qty: 4 Nut Superseded
Location: 36 Prev | Next Part: 61066506 *Qty: 9 Clip Unavailable
Location: 37 Prev | Next Part: 61737700 *Qty: 1 Grill Unavailable
Location: 38 Prev | Next Part: 61128700 *Qty: 1 Hard top GTS $6,317.69
Location: 39 Prev | Next Part: 60189008 *Qty: 2 Front pin GTS $43.60
Location: 40 Prev | Next Part: 60398104 *Qty: 2 Gasket GTS Unavailable
Location: 41 Prev | Next Part: 60608500 *Qty: 2 Gasket GTS Unavailable
Location: 42 Prev | Next Part: 61202800 *Qty: 1 R.H. covering GTS $148.72
Location: 42 Prev | Next Part: 61202900 *Qty: 1 L.H. covering GTS Unavailable
Location: 43 Prev | Next Part: 60325305 *Qty: 2 Hinge for grill GTS $159.02
Location: 44 Prev | Next Part: 60872700 *Qty: 1 Framework for windshield GTS Unavailable
Location: 45 Prev | Next Part: 60421500 *Qty: 2 Hard top opening handle GTS $584.13
Location: 46 Prev | Next Part: 61203000 *Qty: 1 Covering GTS $306.78
Location: 47 Prev | Next Part: 60500500 *Qty: 2 Rear bracket GTS Unavailable
Location: 48 Prev | Next Part: 60608300 *Qty: 1 R.H. gutter GTS $211.53
Location: 48 Prev | Next Part: 60608400 *Qty: 1 L.H. gutter GTS $208.84
Location: 49 Prev | Next Part: 61818600 *Qty: 1 R.H. grill GTS Unavailable
Location: 49 Prev | Next Part: 61818700 *Qty: 1 L.H. grill GTS Unavailable
Location: 50 Prev | Next Part: 61819300 *Qty: 2 Block for grill GTS Superseded
Location: 51 Prev | Next Part: 61819400 *Qty: 2 Ring nut for grill GTS $3.88
Location: 52 Prev | Next Part: 60395506 *Qty: 2 Handle protection GTS $9.40
Location: 53 Prev | Next Part: 60892600 *Qty: 4 Grommet GTS $13.44
Location: 54 Prev | Next Part: 20106001 *Qty: 2 Rear grommet GTS Unavailable
Location: 55 Prev | Next Part: 60551400 *Qty: 2 Central grommet GTS $49.95
Location: 56 Prev | Next Part: 60336807 *Qty: 2 Front bracket $63.07
Location: 57 Prev | Next Part: 61024700 *Qty: 1 Sleek spoyler $1,137.40
Location: 57 Prev | Next Part: 61290200 *Qty: 1 Rough spoyler $1,185.82
Location: 58 Prev | Next Part: 12574211 *Qty: 4 Nut Superseded
Location: 59 Prev | Next Part: 12643701 *Qty: 4 Washer Superseded
Location: 60 Prev | Next Part: 61736700 *Qty: 2 Bracket $94.71
Location: 61 Prev | Next Part: 12638601 *Qty: 4 Washer $0.90
Location: 62 Prev | Next Part: 61792000 *Qty: 4 Spacer $13.27
Location: 63 Prev | Next Part: 10519601 *Qty: 8 Washer Superseded
Location: 64 Prev | Next Part: 16104111 *Qty: 8 Nut Superseded
Location: 65 Prev | Next Part: 61791700 *Qty: 2 Bracket $19.41
Location: 66 Prev | Next Part: 12638601 *Qty: 8 Washer $0.90
Location: 67 Prev | Next Part: 12644301 *Qty: 2 Washer Unavailable
Location: 68 Prev | Next Part: 61747700 *Qty: 6 Spacer $4.92
Location: 69 Prev | Next Part: 61747800 *Qty: 2 Pad $16.44
Location: 70 Prev | Next Part: 12646801 *Qty: 4 Washer $1.48
Location: 71 Prev | Next Part: 10571871 *Qty: 2 Washer Unavailable
Location: 72 Prev | Next Part: 15970521 *Qty: 2 Screw Unavailable
Location: 73 Prev | Next Part: 60801400 *Qty: 2 Bracket $35.36
Location: 74 Prev | Next Part: 61919300 *Qty: 6 Spacer $11.08
Location: 75 Prev | Next Part: 61262200 *Qty: 2 Rubber pad $18.17
Location: 76 Prev | Next Part: 61736500 *Qty: 2 Bracket $28.97
Location: 77 Prev | Next Part: 61693400 *Qty: 4 Bushing Superseded
Location: 78 Prev | Next Part: 61747600 *Qty: 2 Bracket $26.52
Location: 79 Prev | Next Part: 61802800 *Qty: 2 Spacer $3.12
Location: 80 Prev | Next Part: 12646201 *Qty: 4 Washer Unavailable
Location: 81 Prev | Next Part: 16043821 *Qty: 4 Screw Superseded
Location: 82 Prev | Next Part: 10615670 *Qty: 4 Screw Unavailable
Location: 83 Prev | Next Part: 60777400 *Qty: 2 Screw $6.63
Location: 84 Prev | Next Part: 10572071 *Qty: 2 Washer Unavailable
Location: 85 Prev | Next Part: 61777900 *Qty: 1 Spoyler $1,636.79
Location: 86 Prev | Next Part: 61919200 *Qty: 2 Rubber pad $26.02
Location: 87 Prev | Next Part: 60758600 *Qty: 4 Nut $0.90
Location: 88 Prev | Next Part: 10902121 *Qty: 6 Screw Superseded
Location: 89 Prev | Next Part: 10615471 *Qty: 6 Washer Unavailable
Location: 90 Prev | Next Part: 12646601 *Qty: 6 Washer Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
