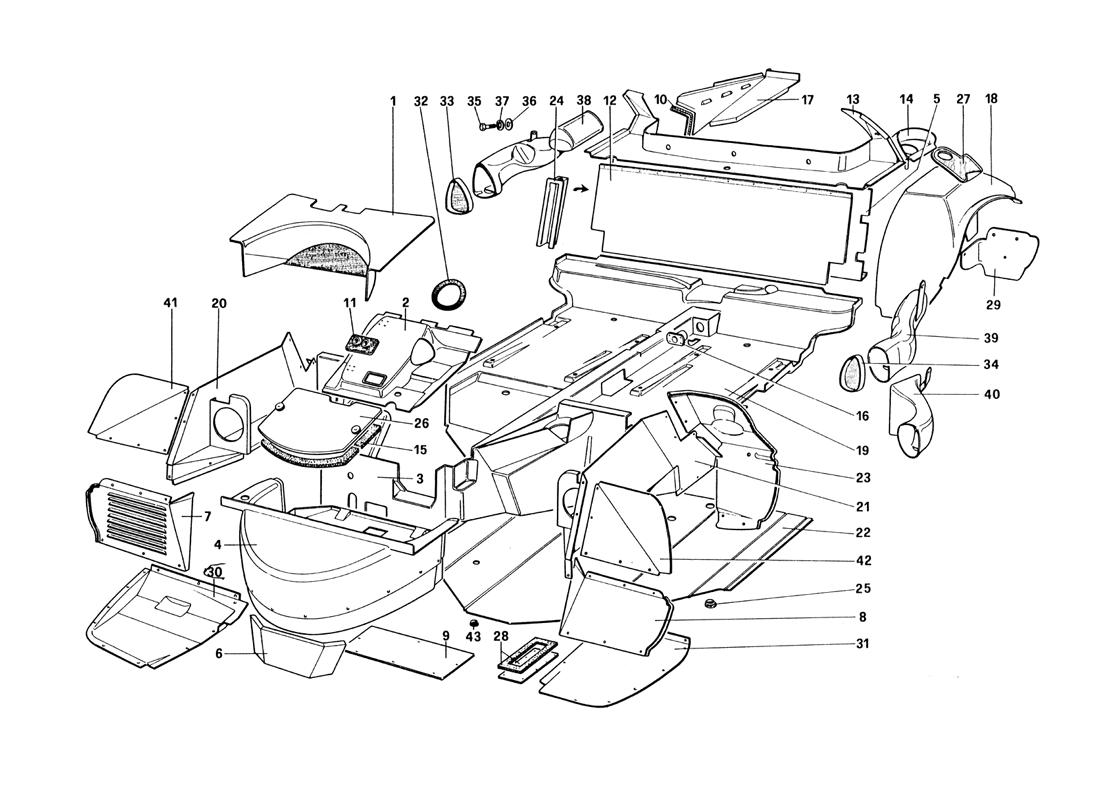

BODY SHELL - INNER ELEMENTS

Go to Split View

BODY SHELL - INNER ELEMENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60351905 *Qty: 1 Wheel compartment
U.S. Version SA
$510.45
Location: 1 Prev | Next Part: 60351806 *Qty: 1 Wheel compartment R.H.D. Unavailable
Location: 1 Prev | Next Part: 60350501 *Qty: 1 Wheel compartment
Not for U.S. Version - SA - GO
Unavailable
Location: 2 Prev | Next Part: 61827700 *Qty: 1 Front additional panel L.H.D $261.36
Location: 2 Prev | Next Part: 61851500 *Qty: 1 Front additional panel R.H.D. $226.04
Location: 3 Prev | Next Part: 61778600 *Qty: 1 Front panel GTS - L.H.D. $999.98
Location: 3 Prev | Next Part: 61851600 *Qty: 1 Front panel GTB - R.H.D. $999.98
Location: 3 Prev | Next Part: 61755900 *Qty: 1 Front panel GTB - L.H.D. Unavailable
Location: 3 Prev | Next Part: 61872800 *Qty: 1 Front panel GTS - R.H.D. $999.98
Location: 4 Prev | Next Part: 61748800 *Qty: 1 Housing for wheel $820.84
Location: 5 Prev | Next Part: 60706500 *Qty: 1 Panel GTB - U.S. Version - SA $150.67
Location: 5 Prev | Next Part: 61194300 *Qty: 1 Panel GTS R.H.D. $303.07
Location: 5 Prev | Next Part: 60719400 *Qty: 1 Panel GTS - U.S. Version - SA $150.67
Location: 5 Prev | Next Part: 61194200 *Qty: 1 Panel GTS
Not for U.S. Version - SA - GO
$199.00
Location: 6 Prev | Next Part: 60351707 *Qty: 1 Battery protection $264.93
Location: 7 Prev | Next Part: 61750200 *Qty: 1 R.H. front gravel guard
Not for U.S. Version - SA
$163.93
Location: 7 Prev | Next Part: 61897200 *Qty: 1 R.H, front gravel guard
U.S. Version - SA
$75.84
Location: 8 Prev | Next Part: 61897300 *Qty: 1 L.H. front gravel guard
U.S. Version SA
$75.84
Location: 8 Prev | Next Part: 61750300 *Qty: 1 L.H. front gravel guard
Not for U.S. Version - SA
$259.15
Location: 9 Prev | Next Part: 60059706 *Qty: 1 Panel L.H.D. Unavailable
Location: 9 Prev | Next Part: 60208600 *Qty: 1 Panel R.H.D. $124.49
Location: 10 Prev | Next Part: 60251808 *Qty: 2 Gasket $11.08
Location: 11 Prev | Next Part: 101100 *Qty: 1 Fair lead for A.C. pipes L.H.D. $18.24
Location: 11 Prev | Next Part: 60197704 *Qty: 1 Fair lead for A.C. pipes R.H.O. Unavailable
Location: 12 Prev | Next Part: 61081000 *Qty: 1 Panel GTS - R.H.D. $98.91
Location: 12 Prev | Next Part: 60850800 *Qty: 1 Panel GTS - L.H.D. $121.46
Location: 12 Prev | Next Part: 60850800 *Qty: 1 Panel GTB
U.S. Version - SA
$121.46
Location: 12 Prev | Next Part: 61193700 *Qty: 1 Panel GTB
Not for U.S. Version - SA
$119.78
Location: 13 Prev | Next Part: 61128400 *Qty: 1 Plane rear window GTS $282.24
Location: 13 Prev | Next Part: 61010800 *Qty: 1 Plane rear window GTB $281.01
Location: 14 Prev | Next Part: 60342904 *Qty: 1 Fuel filler chambel GTS $149.69
Location: 14 Prev | Next Part: 60441201 *Qty: 1 Fuel filler chambel GTB $129.60
Location: 15 Prev | Next Part: 60031101 *Qty: 1 Gasket Unavailable
Location: 16 Prev | Next Part: 60084704 *Qty: 1 Bushing L.H.D. $9.08
Location: 16 Prev | Next Part: 40169005 *Qty: 1 Bushing R.H.D. $14.03
Location: 17 Prev | Next Part: 60956900 *Qty: 1 Inner panel R.H. fins $124.41
Location: 17 Prev | Next Part: 60956800 *Qty: 1 Inner panel L.H. fins $99.16
Location: 18 Prev | Next Part: 60091402 *Qty: 1 L.H. rear wheelhouse R.H.D. Unavailable
Location: 18 Prev | Next Part: 61874900 *Qty: 1 R.H. rear wheelhouse L.H.D. Unavailable
Location: 18 Prev | Next Part: 61875000 *Qty: 1 L.H. rear wheelhouse L.H.D. Unavailable
Location: 18 Prev | Next Part: 60091303 *Qty: 1 R.H. rear wheelhouse R.H.D. Unavailable
Location: 19 Prev | Next Part: 61767200 *Qty: 1 Resin flat bed GTS - L.H.D. $1,289.55
Location: 19 Prev | Next Part: 61842400 *Qty: 1 Resin flat bed GTB - R.H.D. $1,296.92
Location: 19 Prev | Next Part: 61748100 *Qty: 1 Resin flat bed GTB - L.H.D. $1,455.20
Location: 19 Prev | Next Part: 61856800 *Qty: 1 Resin flat bea GTS - R.H.D. $1,455.20
Location: 20 Prev | Next Part: 61749800 *Qty: 1 R.H. front wheelhouse $300.60
Location: 21 Prev | Next Part: 61749900 *Qty: 1 L.H. front wheelhouse $300.60
Location: 22 Prev | Next Part: 60270006 *Qty: 1 Under flat bed R.H.D. $139.61
Location: 22 Prev | Next Part: 60880900 *Qty: 1 Under flat bed L.H.D. Unavailable
Location: 23 Prev | Next Part: 61849800 *Qty: 1 L.H. gravel guard GTB $319.03
Location: 23 Prev | Next Part: 61850000 *Qty: 1 L.H. gravel guard GTS $319.03
Location: 23 Prev | Next Part: 61849700 *Qty: 1 R.H. gravel guard GTB - L.H.D. $274.85
Location: 23 Prev | Next Part: 61859100 *Qty: 1 R.H. gravel guard GTB - R.H.D. $260.15
Location: 23 Prev | Next Part: 61849900 *Qty: 1 R.H. gravel guard GTS - L.H.D. $319.03
Location: 23 Prev | Next Part: 61870600 *Qty: 1 R.H. gravel guard GTS - R.H.D. $353.37
Location: 24 Prev | Next Part: 60093903 *Qty: 1 Protection for pipes GTB
Not for U.S. Version SA - RHD
$234.34
Location: 24 Prev | Next Part: 60241908 *Qty: 1 Protection for pipes GTB - R.H.D. $149.95
Location: 25 Prev | Next Part: 40305203 *Qty: 1 Plug $11.87
Location: 26 Prev | Next Part: 60279809 *Qty: 1 Cover for battery Unavailable
Location: 27 Prev | Next Part: 60134202 *Qty: 1 Gasket for filler Superseded
Location: 28 Prev | Next Part: 60225000 *Qty: 1 Cover R.H.D. $193.22
Location: 29 Prev | Next Part: 61770400 *Qty: 1 L.H. reai cover
Not for U.S. Version - SA
$48.62
Location: 29 Prev | Next Part: 61883700 *Qty: 1 R.H. rear cover U.S. Version - SA $49.59
Location: 29 Prev | Next Part: 61770300 *Qty: 1 R.H. rear cover
Not for U.S. Version - SA
$48.62
Location: 29 Prev | Next Part: 61883800 *Qty: 1 L.H. rear cover U.S. Version - SA $44.98
Location: 30 Prev | Next Part: 61771800 *Qty: 1 R.H. cover
Not for U.S. Version - SA
Superseded
Location: 31 Prev | Next Part: 61771900 *Qty: 1 L.H. cover
Not for U.S. Version - SA
Superseded
Location: 32 Prev | Next Part: 60186103 *Qty: 1 Gasket R.H.D. AC. only $29.88
Location: 32 Prev | Next Part: 60055001 *Qty: 1 Gasket L.H.D. AC. only $16.20
Location: 33 Prev | Next Part: 60200300 *Qty: 1 R.H. grill D. only Unavailable
Location: 34 Prev | Next Part: 60200409 *Qty: 1 L.H. grill D. only Unavailable
Location: 35 Prev | Next Part: 10902121 *Qty: 2 Screw
For U.S. Version - SA q.ty - 1
Superseded
Location: 36 Prev | Next Part: 12643721 *Qty: 2 Washer
For U.S. Version - SA q.ty = 1
$1.24
Location: 37 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 38 Prev | Next Part: 61299600 *Qty: 1 R.H. air duct Unavailable
Location: 39 Prev | Next Part: 60373602 *Qty: 1 L.H. air duct
Not for U.S. Version - SA
Unavailable
Location: 40 Prev | Next Part: 61823500 *Qty: 1 L.H. air duct U.S. Version - SA $386.51
Location: 41 Prev | Next Part: 61755400 *Qty: 1 R.H. gravel guard $149.76
Location: 42 Prev | Next Part: 61755500 *Qty: 1 L.H. gravel guard $144.30
Location: 43 Prev | Next Part: - *Qty: 1 Plug Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
