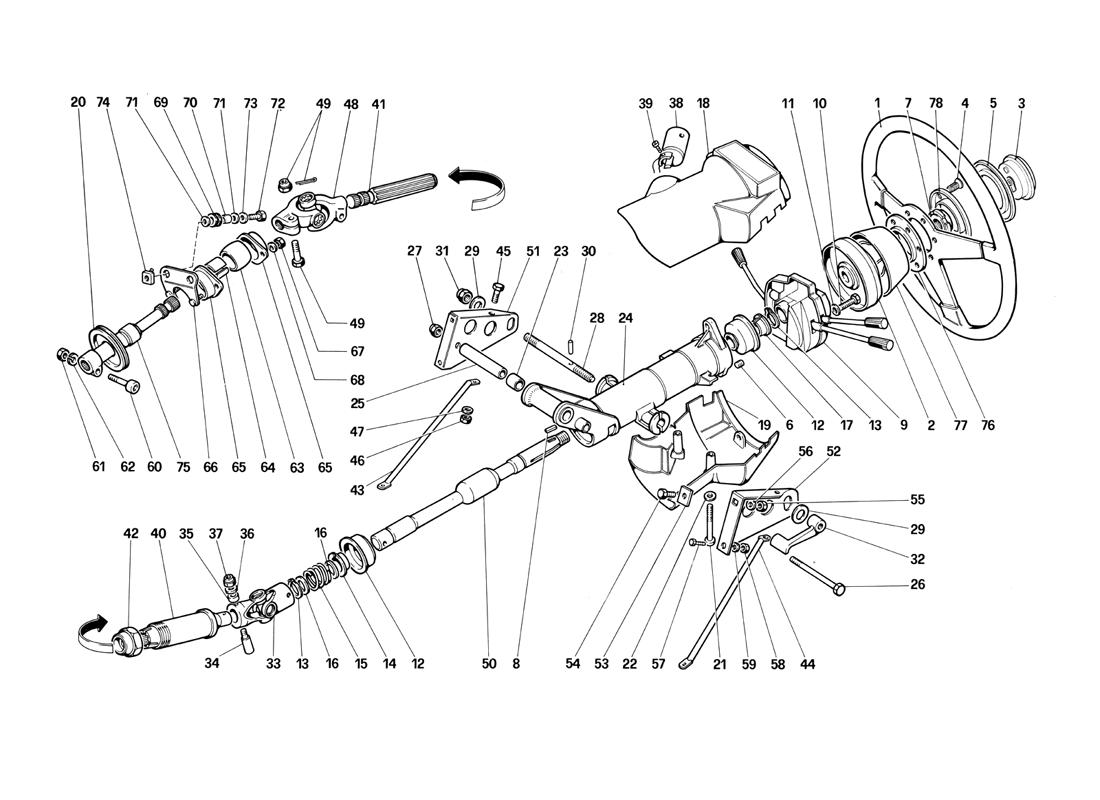

STEERING COLUMN (UNTIL CAR NO. 75995)

Location Part # Quantity* Description Price Add To Cart
1 119036 1 Steering wheel Unavailable
2 122244 1 Steering wheel hub Unavailable
3 130899 1 Horn push button with holder $96.91
4 111189 6 Screw $6.98
5 119040 1 Ring nut to cover screws Unavailable
6 13525170 2 Heli-coil $0.90
7 106082 1 Upper shaft securing ring nut Superseded
8 101106 1 Key $7.75
9 121561 1 "Main switching unit Unavailable
10 10390211 2 Screw Unavailable
11 12601171 2 Washer Superseded
12 121576 2 Bearing $1,757.76
13 11066876 2 Seeger ring Unavailable
14 121577 1 Bearing retaining ring $3.45
15 121578 1 Bearing retaining spring $3.21
16 121579 2 Washer $2.60
17 125361 1 Bearing retaining ring $52.09
18 121580 1 Upper steering column cover $151.93
19 121581 1 Lower steering column cover Unavailable
20 112466 1 Extension wire holder $37.76
21 13275217 2 Screw Unavailable
22 12601171 2 Washer Superseded
23 121588 2 Bushing $4.20
24 122193 1 Steering column support $675.40
25 121589 1 Pipe for steering wheel adjusting pivot $23.87
26 16045021 1 Screw Unavailable
27 16104411 1 Nut $2.33
28 120988 1 Spindle for level $16.85
29 114865 2 Washer $2.27
30 14163870 1 Pin Unavailable
31 16105111 1 Selflocking nut Superseded
32 131487 1 Shaft locking lever
For US 		$83.33
32 121590 1 Shaft locking lever
Not for US 		$568.70
33 112572 1 Upper joint $907.76
34 112573 1 Taper pin $60.70
35 112571 2 Spacer $11.33
36 10519401 2 Washer Superseded
37 12574221 2 Nut Superseded
38 129115 1 Anti-thelf device
For US and SA 		Superseded
38 129116 1 Anti-thelf device
Not for US and SA 		Unavailable
39 121611 1 Screw $1.54
40 116484 1 Guide pipe $555.06
41 108557 1 Lower steering shaft $234.38
42 106870 1 Adjusting nut $17.82
43 123382 1 Right tie rod $52.66
44 123383 1 Left tie rod $431.50
45 10902121 4 Screw Superseded
46 15896211 4 Nut Superseded
47 106850 4 Washer Superseded
48 103343 1 Lower joint
In alternative no. 108362 		Unavailable
49 105082 1 Assy for fitting of joint no. $19.53
50 125359 1 Upper steering shaft $546.56
51 120990 1 Right bracket $25.38
52 120991 1 Left bracket $25.38
53 124826 1 Safety plate $24.97
54 10902221 2 Screw Unavailable
55 15896211 2 Nut Superseded
56 106850 2 Washer Superseded
57 16043221 2 Screw Unavailable
58 16100811 2 Nut Superseded
59 106852 2 Washer Superseded
60 125518 1 Screw $2.40
61 125519 1 Nut $1.30
62 12601279 1 Washer Superseded
63 103297 1 Ball $70.38
64 103370 1 Bushing Unavailable
65 103292 2 Flange $24.34
66 123516 1 Extension support $11.96
67 12574211 2 Nut Superseded
68 10519401 2 Washer Superseded
69 103549 2 Pad $1.81
70 103550 2 Bushing $8.49
71 12640601 4 Washer Superseded
72 10902721 2 Screw Unavailable
73 106850 2 Washer Superseded
74 60758600 2 Caged nut Unavailable
75 123517 1 Steering box extension $306.83
76 123099 1 Horn retaining plate $12.18
77 123098 1 Hub cover $61.18
78 136507 1 Ring nut to cover screw $61.81

* Quantity shown indicates the number of pieces used in the diagram.
