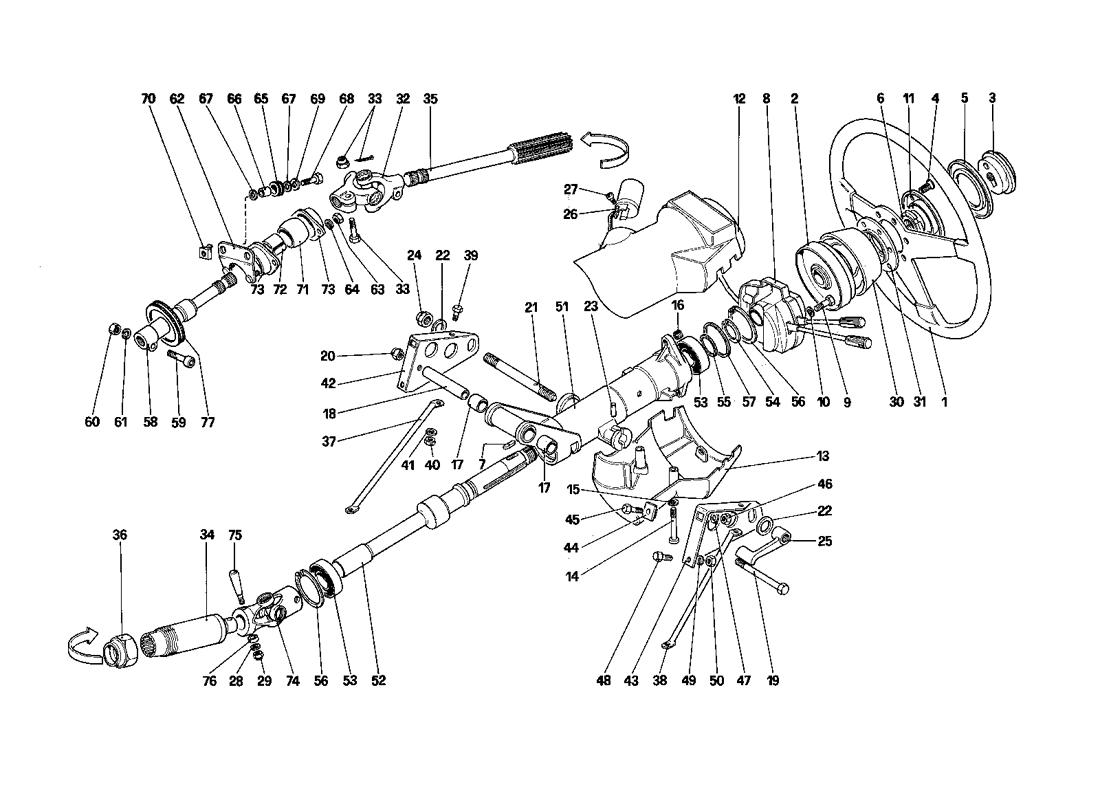

STEERING COLUMN (STARTING FROM CAR NO. 75997 TO CAR NO. 80422)

Go to Split View

STEERING COLUMN (STARTING FROM CAR NO. 75997 TO CAR NO. 80422)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 119036 *Qty: 1 Steering wheel Unavailable
Location: 2 Prev | Next Part: 122244 *Qty: 1 Steering wheel hub Unavailable
Location: 3 Prev | Next Part: 130899 *Qty: 1 Horn push button with holder $37.60
Location: 4 Prev | Next Part: 111189 *Qty: 6 Screw $5.66
Location: 5 Prev | Next Part: 119040 *Qty: 1 Ring nut to cover screw Unavailable
Location: 6 Prev | Next Part: 106082 *Qty: 1 Ring nut Unavailable
Location: 7 Prev | Next Part: 101106 *Qty: 1 Key $0.90
Location: 8 Prev | Next Part: 121561 *Qty: 1 Main switching unit $936.58
Location: 9 Prev | Next Part: 10390211 *Qty: 2 Screw $0.90
Location: 10 Prev | Next Part: 12601271 *Qty: 2 Washer Superseded
Location: 11 Prev | Next Part: 136507 *Qty: 2 Ring nut for push $45.67
Location: 12 Prev | Next Part: 121580 *Qty: 1 Upper steering colomn cover $85.21
Location: 13 Prev | Next Part: 121581 *Qty: 1 Lower steering colomn cover Unavailable
Location: 14 Prev | Next Part: 13275217 *Qty: 2 Screw Unavailable
Location: 15 Prev | Next Part: 12601171 *Qty: 2 Washer Superseded
Location: 16 Prev | Next Part: 13525170 *Qty: 2 Heli coil $0.90
Location: 17 Prev | Next Part: 121588 *Qty: 2 Bush $2.69
Location: 18 Prev | Next Part: 121589 *Qty: 1 Pipe for steering wheel adjusting pivot $17.63
Location: 19 Prev | Next Part: 16045021 *Qty: 1 Screw $0.90
Location: 20 Prev | Next Part: 16104421 *Qty: 1 Selflocking nut Superseded
Location: 21 Prev | Next Part: 120988 *Qty: 1 Spindle for lever $12.46
Location: 22 Prev | Next Part: 114865 *Qty: 2 Washer $1.80
Location: 23 Prev | Next Part: 14163870 *Qty: 1 Pin $0.90
Location: 24 Prev | Next Part: 16105121 *Qty: 1 Selflocking nut Superseded
Location: 25 Prev | Next Part: 121590 *Qty: 1 Shaft locking lever $387.43
Location: 26 Prev | Next Part: 129115 *Qty: 1 Anti - theft device
For US and SA
Superseded
Location: 26 Prev | Next Part: 129116 *Qty: 1 Anti - theft device
Not for US and SA
Unavailable
Location: 27 Prev | Next Part: 121611 *Qty: 1 Screw $0.90
Location: 28 Prev | Next Part: 10519401 *Qty: 2 Washer Superseded
Location: 29 Prev | Next Part: 12574221 *Qty: 2 Dado autobloccante Superseded
Location: 30 Prev | Next Part: 123098 *Qty: 1 Hub cover $45.23
Location: 31 Prev | Next Part: 123099 *Qty: 1 Horn retaning plate $8.99
Location: 32 Prev | Next Part: 103343 *Qty: 1 Lower joint
In alternative use no 108362
Unavailable
Location: 33 Prev | Next Part: 105032 *Qty: 1 Assembly for lower joint $67.81
Location: 34 Prev | Next Part: 116484 *Qty: 1 Guide pipe $410.27
Location: 35 Prev | Next Part: 108557 *Qty: 1 Lower steering shaft $173.26
Location: 36 Prev | Next Part: 106870 *Qty: 1 Adjusting nut $12.13
Location: 37 Prev | Next Part: 123382 *Qty: 1 Right tie rod $38.91
Location: 38 Prev | Next Part: 123383 *Qty: 1 Left tie rod $318.94
Location: 39 Prev | Next Part: 10902121 *Qty: 4 Screw Superseded
Location: 40 Prev | Next Part: 15896211 *Qty: 4 Nut Superseded
Location: 41 Prev | Next Part: 106850 *Qty: 4 Washer Superseded
Location: 42 Prev | Next Part: 120990 *Qty: 1 Right bracket $18.76
Location: 43 Prev | Next Part: 120991 *Qty: 1 Left bracket $18.76
Location: 44 Prev | Next Part: 124826 *Qty: 2 Safety plate $18.45
Location: 45 Prev | Next Part: 10902121 *Qty: 2 Screw Superseded
Location: 46 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 47 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 48 Prev | Next Part: 16043221 *Qty: 2 Screw $0.90
Location: 49 Prev | Next Part: 16100811 *Qty: 2 Nut Superseded
Location: 50 Prev | Next Part: 106852 *Qty: 2 Washer Superseded
Location: 51 Prev | Next Part: 136024 *Qty: 1 Steering column support $870.89
Location: 52 Prev | Next Part: 136951 *Qty: 1 Upper steering shaft
After exhaustion use no. 136028
Unavailable
Location: 53 Prev | Next Part: 134061 *Qty: 2 Bearing $12.39
Location: 54 Prev | Next Part: 11066876 *Qty: 1 Seeqer ring $0.90
Location: 55 Prev | Next Part: 134073 *Qty: 1 Shim, thickness 1,3 mm. $1.99
Location: 55 Prev | Next Part: 134071 *Qty: 1 Shim, thickness 1,1 mm. $1.80
Location: 55 Prev | Next Part: 134072 *Qty: 1 Shim, thickness 1,2 mm. $1.78
Location: 55 Prev | Next Part: 134074 *Qty: 1 Shim, thickness 1,4 mm. $8.78
Location: 55 Prev | Next Part: 134070 *Qty: 1 Shim, thickness 1 mm.
Possible mounting
$3.87
Location: 56 Prev | Next Part: 11066076 *Qty: 2 Seeger ring Superseded
Location: 57 Prev | Next Part: 134066 *Qty: 1 Shim, thickness 1,1 mm. $1.16
Location: 57 Prev | Next Part: 134068 *Qty: 1 Shim, thickness 1,3 mm. $1.61
Location: 57 Prev | Next Part: 134065 *Qty: 1 Shim, thickness 1 mm.
Possible mounting
$2.07
Location: 57 Prev | Next Part: 134067 *Qty: 1 Shim, thickness 1,2 mm. $1.78
Location: 57 Prev | Next Part: 134069 *Qty: 1 Shim, thickness 1,4 mm. $2.41
Location: 58 Prev | Next Part: 123517 *Qty: 1 Steering box extension $226.78
Location: 59 Prev | Next Part: 125518 *Qty: 1 Screw $1.89
Location: 60 Prev | Next Part: 125519 *Qty: 1 Nut $0.95
Location: 61 Prev | Next Part: 12601279 *Qty: 2 Washer Superseded
Location: 62 Prev | Next Part: 123516 *Qty: 1 Extension support $8.83
Location: 63 Prev | Next Part: 12574211 *Qty: 2 Nut Superseded
Location: 64 Prev | Next Part: 10519401 *Qty: 2 Washer Superseded
Location: 65 Prev | Next Part: 103549 *Qty: 2 Pad $1.37
Location: 66 Prev | Next Part: 103550 *Qty: 2 Bushing $2.16
Location: 67 Prev | Next Part: 12640601 *Qty: 4 Washer Superseded
Location: 68 Prev | Next Part: 10902721 *Qty: 2 Screw $0.90
Location: 69 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 70 Prev | Next Part: 60659100 *Qty: 2 Caged nut Superseded
Location: 71 Prev | Next Part: 103297 *Qty: 1 Ball $43.17
Location: 72 Prev | Next Part: 103370 *Qty: 1 Bush Unavailable
Location: 73 Prev | Next Part: 103292 *Qty: 2 Flange $11.51
Location: 74 Prev | Next Part: 112572 *Qty: 1 Upper joint $480.28
Location: 75 Prev | Next Part: 112573 *Qty: 1 Taper pin $37.50
Location: 76 Prev | Next Part: 112571 *Qty: 1 Spacer $6.75
Location: 77 Prev | Next Part: 112466 *Qty: 1 Fair-lead
$20.96

* Quantity shown indicates the number of pieces used in the diagram.
