Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61561500 *Qty: 1 Front LH seat, complete
Until car No 78830
$6,033.04
Location: 1 Prev | Next Part: 61573000 *Qty: 1 Front RH seat, complete
Starting car No 78831
$8,686.06
Location: 1 Prev | Next Part: 61561400 *Qty: 1 Front RH seat, complete
Until car No 78830
$6,033.04
Location: 1 Prev | Next Part: 61573100 *Qty: 1 Front LH seat, complete
Starting car No 78831
$8,686.06
Location: 2 Prev | Next Part: 61538000 *Qty: 2 Headrest $1,154.00
Location: 2 Prev | Next Part: 61542800 *Qty: 2 Headrest cover $386.51
Location: 3 Prev | Next Part: 61516100 *Qty: 1 Left back rest $4,989.62
Location: 3 Prev | Next Part: 61542700 *Qty: 2 Back rest cover $1,407.97
Location: 3 Prev | Next Part: 61516000 *Qty: 1 Right back rest $3,127.56
Location: 4 Prev | Next Part: 61516300 *Qty: 1 Left bottom
Until car no 78830
$3,349.66
Location: 4 Prev | Next Part: 61573300 *Qty: 1 Left bottom
Starting car no 78831
$3,635.84
Location: 4 Prev | Next Part: 61573500 *Qty: 1 Left bottom cover
Starting car no 78831
$1,429.13
Location: 4 Prev | Next Part: 61542600 *Qty: 1 Left bottom cover
Until car no 78830
$1,596.62
Location: 4 Prev | Next Part: 61516200 *Qty: 1 Right bottom
Until car no 78830
$7,660.74
Location: 4 Prev | Next Part: 61573200 *Qty: 1 Right bottom
Starting car no 78831
$2,528.79
Location: 4 Prev | Next Part: 61573400 *Qty: 1 Right bottom cover
Starting car no 78831
$1,016.89
Location: 4 Prev | Next Part: 61542500 *Qty: 1 Right bottom cover
Until car no 78830
$1,596.62
Location: 5 Prev | Next Part: 103088 *Qty: 2 Safety belt
Not for US - For SA - CDN - J
Unavailable
Location: 5 Prev | Next Part: 123087 *Qty: 2 Safety belt
Not for US - SA - CDN -J
Superseded
Location: 6 Prev | Next Part: 61516400 *Qty: 2 Lock release $34.06
Location: 7 Prev | Next Part: 61516500 *Qty: 2 Ad juster $31.51
Location: 8 Prev | Next Part: 61516600 *Qty: 2 Ad juster $27.25
Location: 9 Prev | Next Part: 61569700 *Qty: 1 Snap for carpet Unavailable
Location: 10 Prev | Next Part: 61561700 *Qty: 1 Left seat guide Unavailable
Location: 11 Prev | Next Part: 61516900 *Qty: 1 Right lock $30.54
Location: 11 Prev | Next Part: 61517000 *Qty: 1 Left lock $30.54
Location: 12 Prev | Next Part: 61517100 *Qty: 1 Accelerator pedal cover (LHD) $38.46
Location: 13 Prev | Next Part: 61517200 *Qty: 1 Dash board cover for LHD $275.17
Location: 13 Prev | Next Part: 61569300 *Qty: 1 Set of carpets for US
Starting car No 70689
Unavailable
Location: 13 Prev | Next Part: 61558200 *Qty: 1 Set of carpets for US
Until car No 70687
Unavailable
Location: 13 Prev | Next Part: 61517300 *Qty: 1 Dash board cover for RHD $205.23
Location: 13 Prev | Next Part: 61543000 *Qty: 1 Set of carpets for RHD
Until car No 70687
$616.21
Location: 13 Prev | Next Part: 61569400 *Qty: 1 Set of carpets for RHD
Starting car No 70689
Unavailable
Location: 13 Prev | Next Part: 61542900 *Qty: 1 Set of carpets for LHD
Not for US
Unavailable
Location: 14 Prev | Next Part: 61517400 *Qty: 1 Front rightjcarpet for LHD Unavailable
Location: 14 Prev | Next Part: 61517700 *Qty: 1 Front left carpet for RHD . Unavailable
Location: 15 Prev | Next Part: 61517800 *Qty: 1 Shieldpanel carpet Unavailable
Location: 16 Prev | Next Part: 61517900 *Qty: 2 Luggage belt fixing support $215.34
Location: 17 Prev | Next Part: 61518000 *Qty: 2 Luggage,belt fixing Unavailable
Location: 18 Prev | Next Part: 61518100 *Qty: 2 Luggage belt stop Unavailable
Location: 19 Prev | Next Part: 61518300 *Qty: 2 Left poket $279.03
Location: 19 Prev | Next Part: 61518200 *Qty: 2 Right poket $279.03
Location: 20 Prev | Next Part: 61518400 *Qty: 1 Rear right carpet for LHD $56.20
Location: 20 Prev | Next Part: 61518500 *Qty: 1 Rear left carpet for LHD $56.20
Location: 20 Prev | Next Part: 61518700 *Qty: 1 Rear left carpet for RHD Unavailable
Location: 20 Prev | Next Part: 61518600 *Qty: 1 Rear right carpet for RHD Unavailable
Location: 21 Prev | Next Part: 61550400 *Qty: 1 Left framework carpet for US $108.22
Location: 21 Prev | Next Part: 61519000 *Qty: 1 Right framework carpet for RHD $253.99
Location: 21 Prev | Next Part: 61518800 *Qty: 1 Right framework carpet for LHD
Not for US
$108.22
Location: 21 Prev | Next Part: 61550300 *Qty: 1 Right framework carpet for US $81.18
Location: 21 Prev | Next Part: 61519100 *Qty: 1 Left framework carpet for RHD Unavailable
Location: 21 Prev | Next Part: 61518900 *Qty: 1 Left framework carpet for LHD
Not for US
$253.99
Location: 22 Prev | Next Part: 61519200 *Qty: 4 Bush $102.08
Location: 23 Prev | Next Part: 61576100 *Qty: 1 Front R.H. side carpet LHD
Not for US
Unavailable
Location: 23 Prev | Next Part: 61576300 *Qty: 1 Front R.H. side carpet RHD Unavailable
Location: 23 Prev | Next Part: 61576200 *Qty: 1 Front L.H. side carpet LHD
Not for US
Unavailable
Location: 23 Prev | Next Part: 61576600 *Qty: 1 Front L.H. side carpet for US Unavailable
Location: 23 Prev | Next Part: 61576500 *Qty: 1 Front R.H. side carpet for US $90.55
Location: 23 Prev | Next Part: 61576400 *Qty: 1 Front L.H. side carpet RHD Unavailable
Location: 24 Prev | Next Part: 61519500 *Qty: 2 Pocket support $84.31
Location: 25 Prev | Next Part: 61534400 *Qty: 1 L.H. adjuster Unavailable
Location: 25 Prev | Next Part: 61519600 *Qty: 1 R.H. adjuster $107.31
Location: 26 Prev | Next Part: 61561800 *Qty: 12 Seat releasing lever $31.65
Location: 27 Prev | Next Part: 61519800 *Qty: 8 Stop spring Unavailable
Location: 28 Prev | Next Part: 61550500 *Qty: 1 Tunnel shield panel carpet for US $92.50
Location: 28 Prev | Next Part: 61520000 *Qty: 1 Tunnel shield panel carpet, for RHD Unavailable
Location: 28 Prev | Next Part: 61519900 *Qty: 1 Tunnel shield panel carpet, for LHD
Not for US
Unavailable
Location: 29 Prev | Next Part: 61520100 *Qty: 1 Lower covering $216.31
Location: 30 Prev | Next Part: 61561600 *Qty: 1 Right seat guide $268.73
Location: 31 Prev | Next Part: 61534500 *Qty: 1 Trim for lower covering $789.55
Location: 32 Prev | Next Part: 61538700 *Qty: 1 Front vertical carpet RHD Unavailable
Location: 32 Prev | Next Part: 61569600 *Qty: 1 Front vertical carpet LHD Unavailable
Location: 33 Prev | Next Part: 61538500 *Qty: 1 Front carpet LHD
Driver side
Unavailable
Location: 33 Prev | Next Part: 61538800 *Qty: 1 Front carpet RHD
Driver side
Unavailable
Location: 33 Prev | Next Part: 61569500 *Qty: 1 Footrest, driver side for US
Starting car No 70689
$124.41
Location: 34 Prev | Next Part: 61536100 *Qty: 1 Left seat guide (LHD) Unavailable

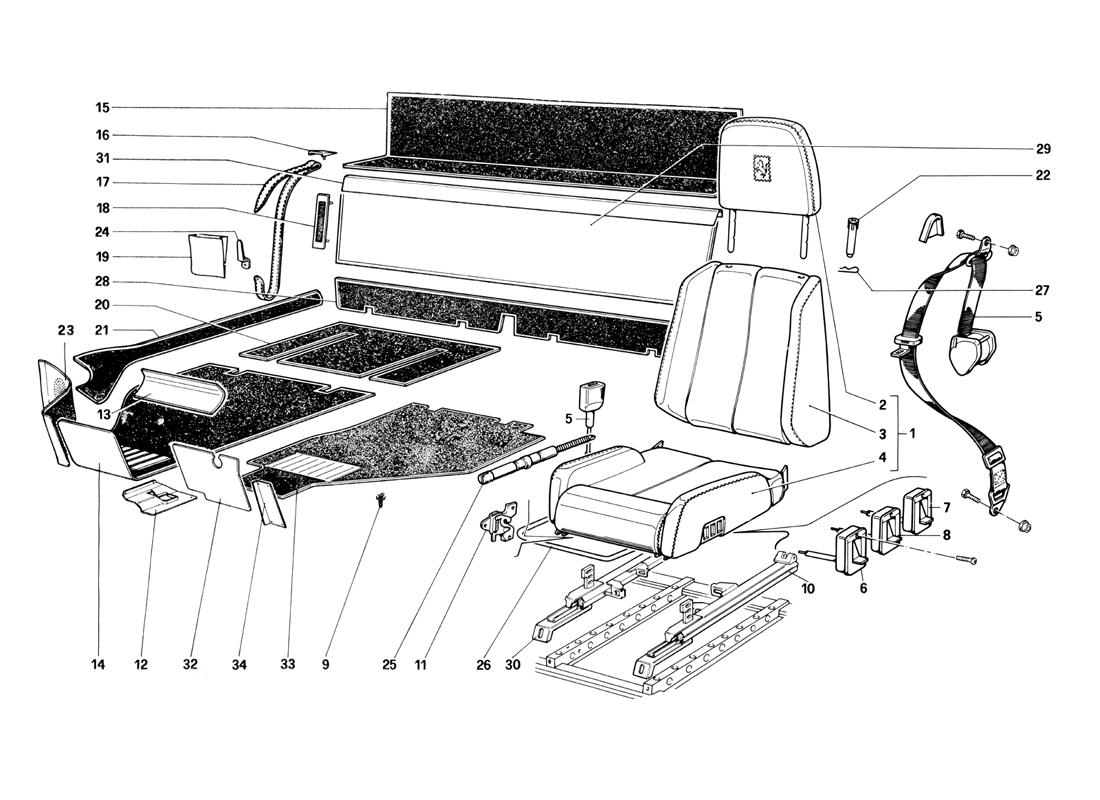

* Quantity shown indicates the number of pieces used in the diagram.
