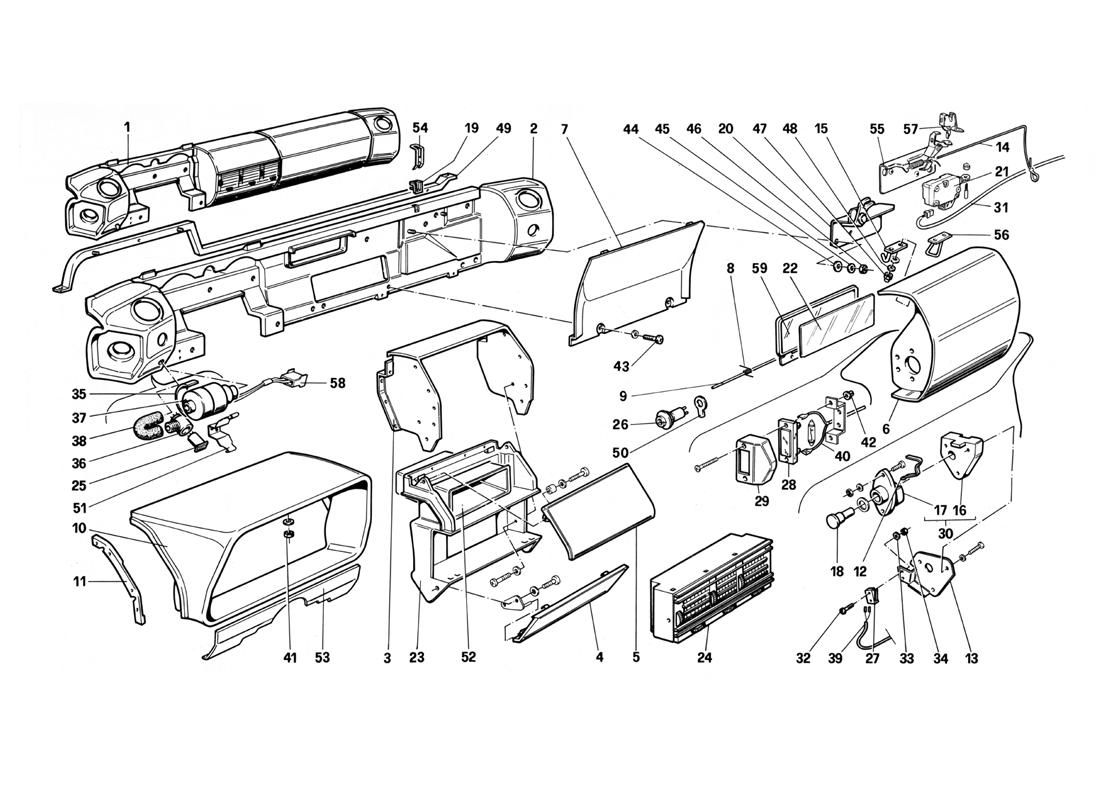

DASHBOARD (NOT FOR US VERSION)

Go to Split View

DASHBOARD (NOT FOR US VERSION)

Location Part # Quantity* Description Price Add To Cart
1 61562100 1 LHD dash board assemblv
For LHD - With instruments seat 		$11,511.95
1 61562400 1 LHD dash board assembly
Without instruments seat 		$10,190.92
1 61562500 1 RHD dash board assembly
Without instruments seat 		Unavailable
1 61562200 1 RHD dash board assembly
For RHD - With instruments seat 		Unavailable
1 61562300 1 RHD dash board assembly
For AUS - With instruments seat 		Unavailable
1 61562600 1 RHD dash board assembly
For AUS - Without instruments seat 		Unavailable
2 61562700 1 Dash board
For LHD 		$2,559.91
2 61562800 1 Dash board
For RHD 		$2,454.25
3 61520800 1 Dash board central section
For LHD 		$541.81
3 61520900 1 Dash board central section
For RHD 		$568.91
4 61545200 1 Dash board central panel $956.76
5 61521100 1 Dash board central cover $734.03
6 61521200 1 Dash board box
For LHD 		$2,963.74
7 61521400 1 Dash board box panel $295.12
8 61577500 1 Clip $1.83
9 61577600 1 Pin $2.46
10 61559000 1 Housing instruments
For RHD 		$1,374.74
10 61558900 1 Housing instruments
For LHD 		Unavailable
11 61521800 1 Right angle piece $10.88
11 61521900 1 Left angle piece $10.88
12 61522000 2 Clip $2.15
13 61534600 1 Bracket
For RHD 		$5.01
13 61554500 1 Bracket
For LHD 		$20.52
14 61554400 1 Safety cable $29.88
15 61554600 1 Lock striker $128.09
16 61522500 1 Left fixed hinge Unavailable
16 61522400 1 Right fixed hinge $12.83
17 61522600 1 Right mobile hinge Unavailable
17 61522700 1 Left mobile hinge $3.63
18 61522800 2 Pin Unavailable
19 61554700 1 Frame $21.98
20 61554800 1 Lock bracket $2,080.55
21 61523100 1 Lock magnet Unavailable
22 61523200 1 Courtesy mirror $38.87
23 61523300 1 Frame work
For LHD 		$1,176.08
23 61523400 1 Frame work
For RHD 		$1,176.08
24 61523500 1 Central air outler $304.18
25 61079100 1 Sensor for internal temperature Unavailable
26 61523600 1 Socket $29.64
27 61523700 1 Switch $190.35
28 61647200 2 Dash board box lamp $100.22
29 61523800 2 Dash board box lamp frame $57.35
30 61523900 1 Right dashboard box hinge $19.63
30 61524000 1 Left dashboard box hinge $19.85
31 124410 1 Socket cables $14.43
32 61524100 2 Screw $3.15
33 61524200 2 Washer Unavailable
34 61524300 2 Nut Unavailable
35 120065 1 Sensor ring $1.75
36 61079200 1 Box sensor $7.31
37 61079300 1 Suction fan for sensor Superseded
38 124039 1 Tube from suction fan to sensor $23.02
39 124409 1 Switch cable $34.31
40 124411 1 Lamp cables $20.50
41 14084111 4 Nut Unavailable
42 12611342 4 Female screw Unavailable
43 15688301 2 Screw Unavailable
44 12643701 2 Washer Superseded
45 10519401 2 Washer Superseded
46 15896211 2 Nut Superseded
47 14051611 2 Nut Unavailable
48 10519281 2 Washer Unavailable
49 61524700 1 Dashboard support structure
Only for RHD Australia 		$428.19
49 61524600 1 Dashboard support structure
For RHD (except for Australia) 		$428.19
49 61524500 1 Dashboard support structure
For LHD 		$269.54
50 60701400 1 Negative terminal $5.69
51 61089500 1 Bracket $5.99
52 61541600 1 Radio seat Unavailable
53 61562000 1 Lower cover
For RHD 		$547.88
53 61561900 1 Lower cover
For LHD 		$387.06
54 61545900 1 Frame
For bracket no. 55 		$19.33
55 61545700 1 Lock bracket
For RHD 		Unavailable
55 61545800 1 Lock bracket
For LHD 		Unavailable
56 61545500 1 Lock striker
For bracket no. 55 		$142.36
57 61545600 1 Glove box lock Unavailable
58 119430 1 Sensor cable $16.28
59 61577400 1 Mirror, complete $191.14

* Quantity shown indicates the number of pieces used in the diagram.
