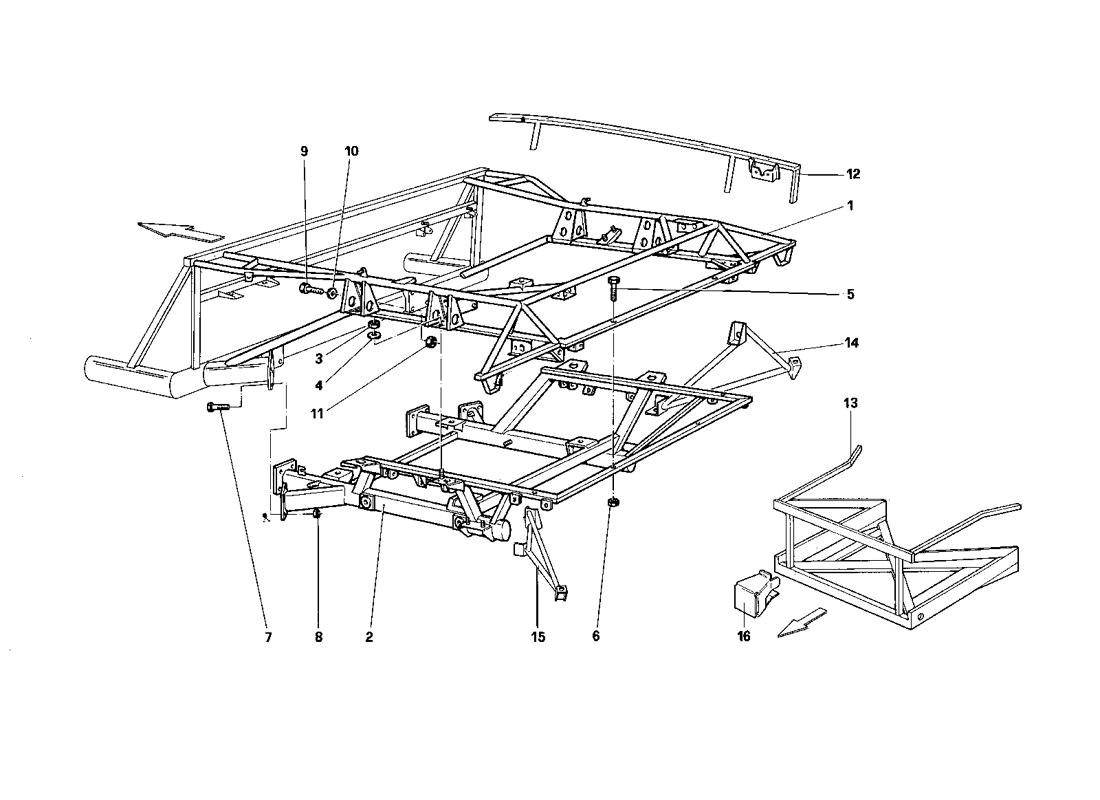

REAR FRAME

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 130841 *Qty: 1 Rear frame
For B1
$2,306.10
Location: 1 Prev | Next Part: 127912 *Qty: 1 Rear frame
For US
$3,236.47
Location: 1 Prev | Next Part: 131704 *Qty: 1 Rear frame
For CDN
$1,714.41
Location: 1 Prev | Next Part: 124517 *Qty: 1 Rear frame
Not for B1 - US -CDN
$1,559.75
Location: 2 Prev | Next Part: 132510 *Qty: 1 Removable frame
For C7
$7,703.95
Location: 2 Prev | Next Part: 131703 *Qty: 1 Removable frame
For CDN
$3,212.57
Location: 2 Prev | Next Part: 127911 *Qty: 1 Removable frame
For US
$4,222.94
Location: 2 Prev | Next Part: 124578 *Qty: 1 Removable frame
For RHD
$4,382.75
Location: 2 Prev | Next Part: 124576 *Qty: 1 Removable frame
Not for US-RHD-CDN - C7
$3,585.07
Location: 3 Prev | Next Part: 12574511 *Qty: 8 Nut Superseded
Location: 4 Prev | Next Part: 10730521 *Qty: 8 Washer $2.56
Location: 5 Prev | Next Part: 15541211 *Qty: 4 Screw Unavailable
Location: 6 Prev | Next Part: 16105011 *Qty: 4 Selflocking nut Superseded
Location: 7 Prev | Next Part: 15540621 *Qty: 8 Screw Superseded
Location: 8 Prev | Next Part: 16105011 *Qty: 8 Selflocking nut Superseded
Location: 9 Prev | Next Part: 15540521 *Qty: 8 Washer Unavailable
Location: 10 Prev | Next Part: 12646921 *Qty: 8 Washer $0.90
Location: 11 Prev | Next Part: 16105011 *Qty: 8 Nut Superseded
Location: 12 Prev | Next Part: 61543400 *Qty: 1 Rear mudguard support
LH
$1,396.02
Location: 12 Prev | Next Part: 61543300 *Qty: 1 Rear mudguard support
RH
$1,396.02
Location: 13 Prev | Next Part: 131239 *Qty: 1 Front frame
Not for CON
$1,650.91
Location: 13 Prev | Next Part: 131665 *Qty: 1 Front frame
For CDN
$1,177.71
Location: 14 Prev | Next Part: 130962 *Qty: 1 RH pad support
For CDN
$648.60
Location: 15 Prev | Next Part: 130963 *Qty: 1 LH pad support
For CDN
$648.60
Location: 16 Prev | Next Part: 61565700 *Qty: 1 Bracket for LH pad
CDN
$49.69
Location: 16 Prev | Next Part: 61565600 *Qty: 1 Bracket for RH pad
CDN
$141.92

* Quantity shown indicates the number of pieces used in the diagram.
