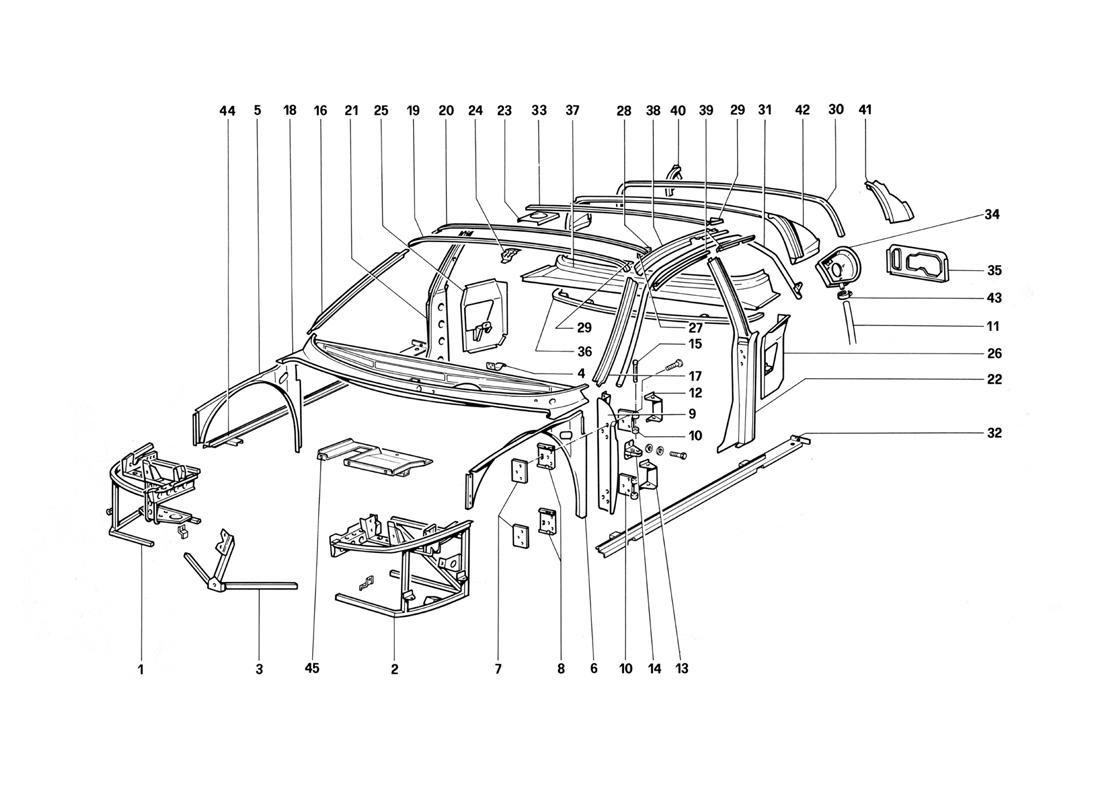

BODY - INTERNAL COMPONENTS

Go to Split View

BODY - INTERNAL COMPONENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61482800 *Qty: 1 Front right frame $2,279.14
Location: 2 Prev | Next Part: 61482900 *Qty: 1 Front left frame $3,001.37
Location: 3 Prev | Next Part: 61540400 *Qty: 1 Front central frame
For CH
$187.41
Location: 3 Prev | Next Part: 61483000 *Qty: 1 Front central frame
Not for CH
$608.69
Location: 4 Prev | Next Part: 61483100 *Qty: 1 Clip $29.76
Location: 5 Prev | Next Part: 61483200 *Qty: 1 Right front inner body side $1,422.90
Location: 6 Prev | Next Part: 61483300 *Qty: 1 Left front inner body side $1,422.90
Location: 7 Prev | Next Part: 61483400 *Qty: 4 Nut screw plate $11.82
Location: 8 Prev | Next Part: 61483500 *Qty: 4 Seat nut screw plate $5.54
Location: 9 Prev | Next Part: 61483700 *Qty: 1 Seat for left door hinge $156.23
Location: 9 Prev | Next Part: 61483600 *Qty: 1 Seat for right door hinge $160.63
Location: 10 Prev | Next Part: 61483800 *Qty: 4 Hinge for door $48.21
Location: 11 Prev | Next Part: 123391 *Qty: 1 Hose $6.29
Location: 12 Prev | Next Part: 61484000 *Qty: 2 Upper stiffening $7.23
Location: 13 Prev | Next Part: 61484100 *Qty: 2 Lower stiffening $8.20
Location: 14 Prev | Next Part: 61484200 *Qty: 2 Bracket $8.37
Location: 15 Prev | Next Part: 61484300 *Qty: 4 Pin for door hinge Superseded
Location: 16 Prev | Next Part: 61484400 *Qty: 1 Right pillar $44.41
Location: 17 Prev | Next Part: 61484500 *Qty: 1 Left pillar $44.59
Location: 18 Prev | Next Part: 61484600 *Qty: 1 Under -Windshield $1,072.59
Location: 19 Prev | Next Part: 61484700 *Qty: 1 Front rib $54.04
Location: 20 Prev | Next Part: 61484800 *Qty: 1 Central rib $54.04
Location: 21 Prev | Next Part: 61484900 *Qty: 1 Rear right door pillar $221.30
Location: 22 Prev | Next Part: 61485000 *Qty: 1 Rear left door pillar $221.30
Location: 23 Prev | Next Part: 61485100 *Qty: 1 Stiffening $21.74
Location: 24 Prev | Next Part: 61485200 *Qty: 1 Bracket $13.72
Location: 25 Prev | Next Part: 61485300 *Qty: 1 RH belt retractor housing $19.53
Location: 26 Prev | Next Part: 61485400 *Qty: 1 LH belt retractor housing $70.09
Location: 27 Prev | Next Part: 61485500 *Qty: 2 Front stiffening for central rib $23.81
Location: 28 Prev | Next Part: 61485600 *Qty: 2 Rear stiffening for central rib $18.89
Location: 29 Prev | Next Part: 61485700 *Qty: 4 Stiffening for rear rib Superseded
Location: 30 Prev | Next Part: 61488000 *Qty: 1 Rear window plate $90.42
Location: 31 Prev | Next Part: 61487800 *Qty: 1 Right upper frame for passenger $177.97
Location: 31 Prev | Next Part: 61487900 *Qty: 1 Left upper frame for passenger comp. $177.97
Location: 32 Prev | Next Part: 61558400 *Qty: 1 Inner connection plate, complete
L.H
$460.67
Location: 33 Prev | Next Part: 61488100 *Qty: 1 Rear rib $28.85
Location: 34 Prev | Next Part: 61486400 *Qty: 1 Fuel filler seat $45.54
Location: 35 Prev | Next Part: 61486600 *Qty: 1 Left light seat $407.91
Location: 35 Prev | Next Part: 61486500 *Qty: 1 Right light seat $407.91
Location: 36 Prev | Next Part: 61486700 *Qty: 1 Frame $52.30
Location: 37 Prev | Next Part: 61486800 *Qty: 1 Rear window plate $97.65
Location: 38 Prev | Next Part: 61486900 *Qty: 1 Roof right side rail $66.31
Location: 38 Prev | Next Part: 61487000 *Qty: 1 Roof left side rail $66.31
Location: 39 Prev | Next Part: 61487100 *Qty: 1 Upper rail for right door opening $50.88
Location: 39 Prev | Next Part: 61487200 *Qty: 1 Upper rail for left door opening $50.88
Location: 40 Prev | Next Part: 61487300 *Qty: 1 Right rear pillar $39.55
Location: 41 Prev | Next Part: 61487400 *Qty: 1 Left rear pillar $39.86
Location: 42 Prev | Next Part: 61487500 *Qty: 1 Rear window framework $154.50
Location: 43 Prev | Next Part: 12179490 *Qty: 1 Clamp Superseded
Location: 44 Prev | Next Part: 61558300 *Qty: 1 Inner connection plate (R.H.) complete $460.67
Location: 45 Prev | Next Part: 61530800 *Qty: 1 Plate for accelerator pedal
RHD
$108.21

* Quantity shown indicates the number of pieces used in the diagram.
