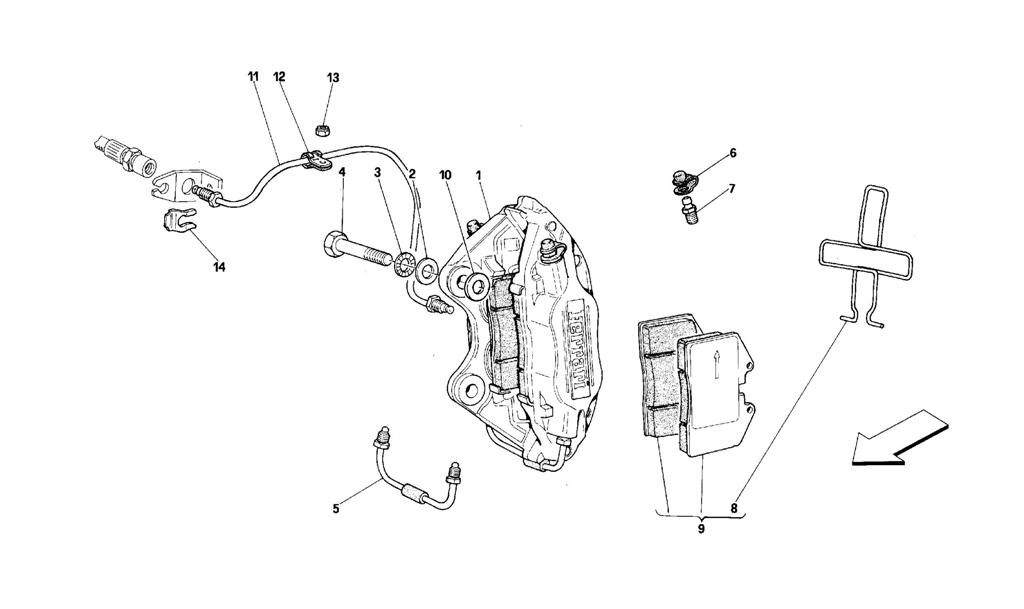

REAR BRAKES CALIPERS

REAR BRAKES CALIPERS

Location Part # Quantity* Description Price Add To Cart
1 151903 1 Right rear caliper unit with pads (BREMBO) $710.38
1 151904 1 Left rear caliper unit with pads (BREMBO) $710.38
1 146652 1 Right rear caliper unit with pads (TEVES) $985.42
1 146653 1 Left rear caliper unit with pads (TEVES) $987.55
2 106616 4 Washer Unavailable
3 10615874 4 Washer Unavailable
4 174214 4 Screw $5.52
5 147134 2 Connection hose (Caliper TEVES) $242.87
5 152957 2 Connection hose (Caliper BREMBO) $31.47
6 152955 2 Cap (Caliper BREMBO) $6.88
6 147136 2 Cap (Caliper TEVES) $109.27
7 152954 2 Screw (Caliper BREMBO) $7.41
7 147135 2 Screw (Caliper TEVES) $20.83
8 152956 2 Spring (Caliper BREMBO) $26.39
8 147137 2 Spring (Caliper TEVES) $16.24
9 70000767 1 Set of rear pads with spring (TEVES) Unavailable
9 70000824 1 Set of rear pads with spring (BREMBO) Unavailable
10 156264 0 Washer -Possible mounting $1.37
10 156265 0 Washer -Possible mounting Unavailable
10 156266 0 Washer -Possible mounting $1.50
10 156260 0 Washer -Possible mounting $1.50
10 156261 0 Washer -Possible mounting $1.57
10 156262 0 Washer -Possible mounting $1.50
10 156263 0 Washer -Possible mounting $1.52
11 147983 1 Pipe from hose to L.H. rear caliper $6.64
11 147982 1 Pipe from hose to R.H. rear caliper Unavailable
12 10440890 2 Bracket Unavailable
13 102741 2 Nut $0.90
14 116374 4 Spring $2.82

* Quantity shown indicates the number of pieces used in the diagram.
