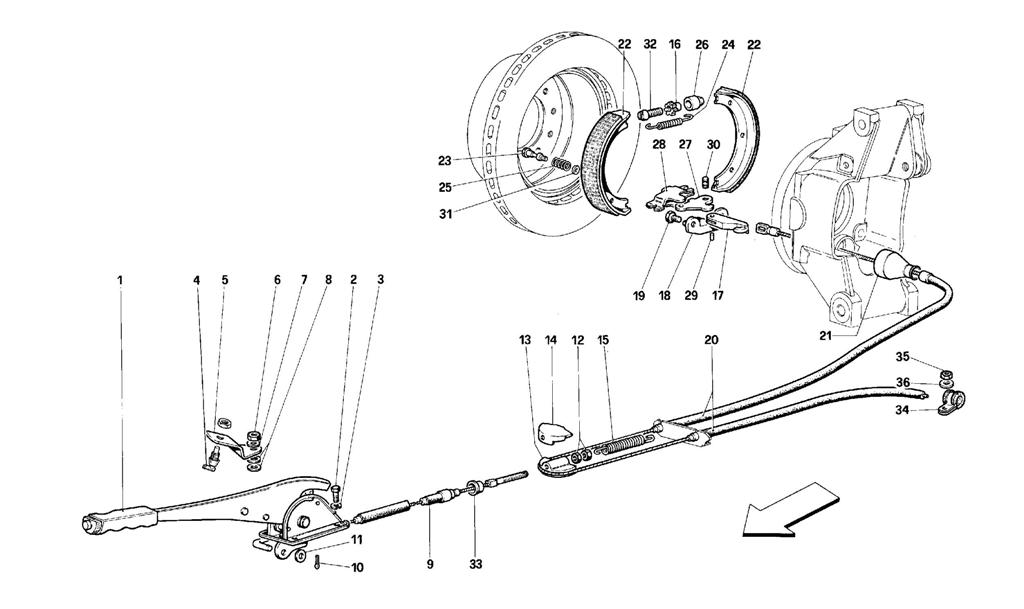

HAND - BRAKE CONTROL

Location Part # Quantity* Description Price Add To Cart
1 636190.. 1 Lever trim -For leather colors see table in draw. Colors code Unavailable
1 154093 1 Hand-brake lever without trim $448.57
2 10902111 4 Screw Superseded
3 127494 4 Washer $0.90
4 114318 1 Switch Unavailable
5 114320 1 Bracket $2.89
6 15896470 1 Nut Unavailable
7 12605270 1 Washer Unavailable
8 10519377 2 Washer -Possible mounting Unavailable
9 120960 1 Front cable $49.37
10 10796440 1 Cotter pin Unavailable
11 10519624 1 Washer Unavailable
12 16102314 2 Nut Unavailable
13 118552 1 Anchorage for rear cable Unavailable
14 118553 1 Cable retaining plate Unavailable
15 104895 1 Return spring $36.22
16 101286 2 Nut for adjusting screw $82.80
17 105270 2 Inner lever control fork $56.92
18 142861 2 Block on hub holder $304.48
19 142856 4 Screw $6.37
20 137475 1 Rear cable $216.44
21 143938 2 Stop cable hose and protection inner lever Unavailable
22 170701 4 Brake shoe -As an alternative of 159894 $74.68
23 156915 4 Screw L. 36 mm Unavailable
23 156916 4 Screw L. 29 mm $141.17
24 101276 4 Return spring for shoe $55.20
25 101277 4 Spring $4.32
26 101279 2 Seat for adjusting screw $136.29
27 101280 2 Inner control lever $98.33
28 101281 2 Outer control lever $129.39
29 101282 2 Pin securing fork to inner lever $19.77
30 101283 2 Pin for joint $29.31
31 12625224 4 Washer Unavailable
32 101285 2 Screw $85.24
33 118554 1 Bushing $15.81
34 10441290 2 Clamp Unavailable
35 102741 2 Nut $0.90
36 12639701 2 Washer Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
