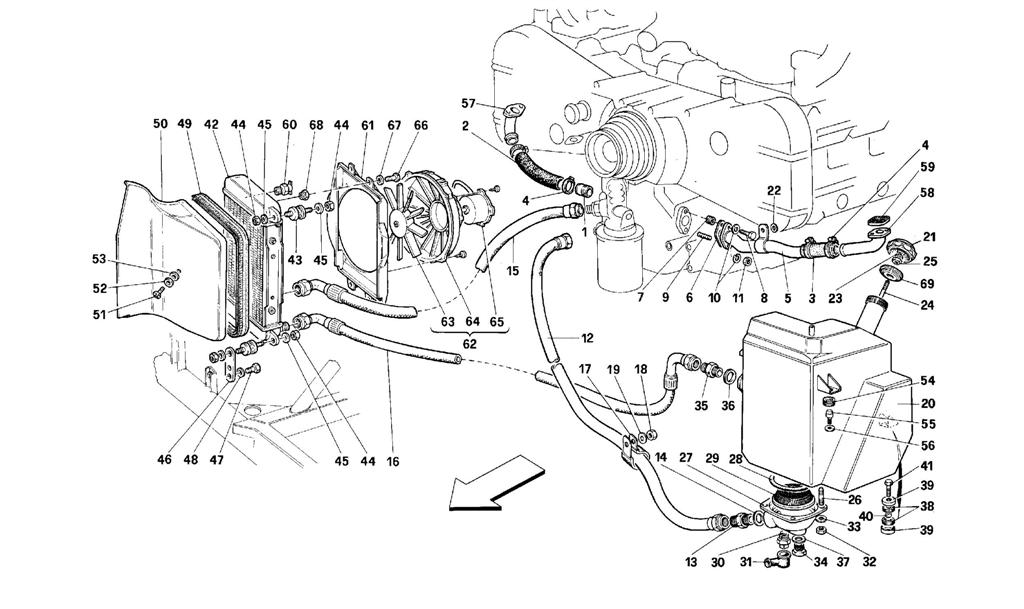

LUBRICATION

Go to Split View

LUBRICATION

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 104561 *Qty: 1 Union $10.09
Location: 2 Prev | Next Part: 122828 *Qty: 1 Sleeve $30.52
Location: 3 Prev | Next Part: 122829 *Qty: 1 Sleeve $34.56
Location: 4 Prev | Next Part: 168220 *Qty: 4 Clamp $0.90
Location: 5 Prev | Next Part: 149786 *Qty: 1 L.H. cyl. head oil exhaust pipe $98.60
Location: 6 Prev | Next Part: 150193 *Qty: 1 Gasket $4.18
Location: 7 Prev | Next Part: 13525570 *Qty: 1 Heli-coil $2.86
Location: 8 Prev | Next Part: 10902424 *Qty: 1 Screw $0.90
Location: 9 Prev | Next Part: 11500224 *Qty: 1 Stud $0.90
Location: 10 Prev | Next Part: 127494 *Qty: 2 Washer $0.90
Location: 11 Prev | Next Part: 134041 *Qty: 1 Nut $1.05
Location: 12 Prev | Next Part: 146906 *Qty: 1 Hose from reservoir to pump $3,229.74
Location: 13 Prev | Next Part: 138149 *Qty: 1 Union $51.66
Location: 14 Prev | Next Part: 144485 *Qty: 1 Gasket $24.67
Location: 15 Prev | Next Part: 146905 *Qty: 1 Hose from pump to radiator Call
Location: 16 Prev | Next Part: 146904 *Qty: 1 Hose from radiator to reservoir $588.22
Location: 17 Prev | Next Part: 106195 *Qty: 1 Clamp $39.84
Location: 18 Prev | Next Part: 102948 *Qty: 1 Nut $0.90
Location: 19 Prev | Next Part: 14496424 *Qty: 1 Washer Superseded
Location: 20 Prev | Next Part: 125517 *Qty: 1 Oil reservoir $854.36
Location: 21 Prev | Next Part: 145623 *Qty: 1 Plug $243.40
Location: 22 Prev | Next Part: 14496524 *Qty: 1 Washer $0.90
Location: 23 Prev | Next Part: 12601274 *Qty: 1 Washer $0.90
Location: 24 Prev | Next Part: 139646 *Qty: 1 Oil dip stick $26.64
Location: 25 Prev | Next Part: 15896214 *Qty: 1 Nut $0.90
Location: 26 Prev | Next Part: 11500424 *Qty: 4 Stud $0.90
Location: 27 Prev | Next Part: 125473 *Qty: 1 Oil suction fan Call
Location: 28 Prev | Next Part: 125521 *Qty: 1 OR ring $12.04
Location: 29 Prev | Next Part: 100332 *Qty: 1 Oil suction filter $12.60
Location: 30 Prev | Next Part: 148676 *Qty: 1 Oil thermistor Call
Location: 31 Prev | Next Part: 107003 *Qty: 1 Protection cap $6.40
Location: 32 Prev | Next Part: 102948 *Qty: 4 Nut $0.90
Location: 33 Prev | Next Part: 12601274 *Qty: 4 Washer $0.90
Location: 34 Prev | Next Part: 10300771 *Qty: 1 Plug $17.00
Location: 35 Prev | Next Part: 138150 *Qty: 1 Union $50.78
Location: 36 Prev | Next Part: 144487 *Qty: 1 Gasket $29.63
Location: 37 Prev | Next Part: 10257060 *Qty: 1 Gasket $0.90
Location: 38 Prev | Next Part: 107978 *Qty: 4 Rubber bushing $1.28
Location: 39 Prev | Next Part: 107979 *Qty: 4 Cup $0.90
Location: 40 Prev | Next Part: 107980 *Qty: 2 Bush $6.68
Location: 41 Prev | Next Part: 123029 *Qty: 2 Screw $0.90
Location: 42 Prev | Next Part: 148519 *Qty: 1 Oil radiator Superseded
Location: 43 Prev | Next Part: 102947 *Qty: 3 Buffer $15.94
Location: 44 Prev | Next Part: 102948 *Qty: 6 Nut $0.90
Location: 45 Prev | Next Part: 12643724 *Qty: 6 Washer Superseded
Location: 46 Prev | Next Part: 149548 *Qty: 2 Bracket $2.23
Location: 47 Prev | Next Part: 16296924 *Qty: 2 Screw $0.90
Location: 48 Prev | Next Part: 12643724 *Qty: 2 Washer Superseded
Location: 49 Prev | Next Part: 149533 *Qty: 1 Gasket $62.38
Location: 50 Prev | Next Part: 149339 *Qty: 1 Conveyor $41.90
Location: 51 Prev | Next Part: 10902521 *Qty: 1 Screw $0.90
Location: 52 Prev | Next Part: 12643724 *Qty: 1 Washer Superseded
Location: 53 Prev | Next Part: 12601274 *Qty: 1 Washer $0.90
Location: 54 Prev | Next Part: 10397480 *Qty: 1 Cable grommet $1.80
Location: 55 Prev | Next Part: 125708 *Qty: 1 Pin Call
Location: 56 Prev | Next Part: 108242 *Qty: 1 Washer $1.51
Location: 57 Prev | Next Part: 122826 *Qty: 1 R.H. cylinder head oil exhaust port Call
Location: 58 Prev | Next Part: 149808 *Qty: 1 L.H. cylinder head oil exhaust port $42.52
Location: 59 Prev | Next Part: 150192 *Qty: 2 Gasket $4.37
Location: 60 Prev | Next Part: 123277 *Qty: 1 Temperature switch -Valid for CH $149.62
Location: 61 Prev | Next Part: 140809 *Qty: 1 Cope -Valid for CH- $172.07
Location: 62 Prev | Next Part: 153431 *Qty: 1 Complete electrofan -Valid for CH $163.66
Location: 63 Prev | Next Part: 154223 *Qty: 1 Fan -Valid for CH- $226.80
Location: 64 Prev | Next Part: 154224 *Qty: 1 Conveyor -Valid for CH $167.62
Location: 65 Prev | Next Part: 154225 *Qty: 1 Motor -Valid for CH- $198.23
Location: 66 Prev | Next Part: 10902424 *Qty: 4 Screw -Valid for CH- $0.90
Location: 67 Prev | Next Part: 14496424 *Qty: 4 Washer -Valid for CH- Superseded
Location: 68 Prev | Next Part: 102948 *Qty: 4 Nut -Valid for CH- $0.90
Location: 69 Prev | Next Part: 180585 *Qty: 1 Gasket $78.59

* Quantity shown indicates the number of pieces used in the diagram.
