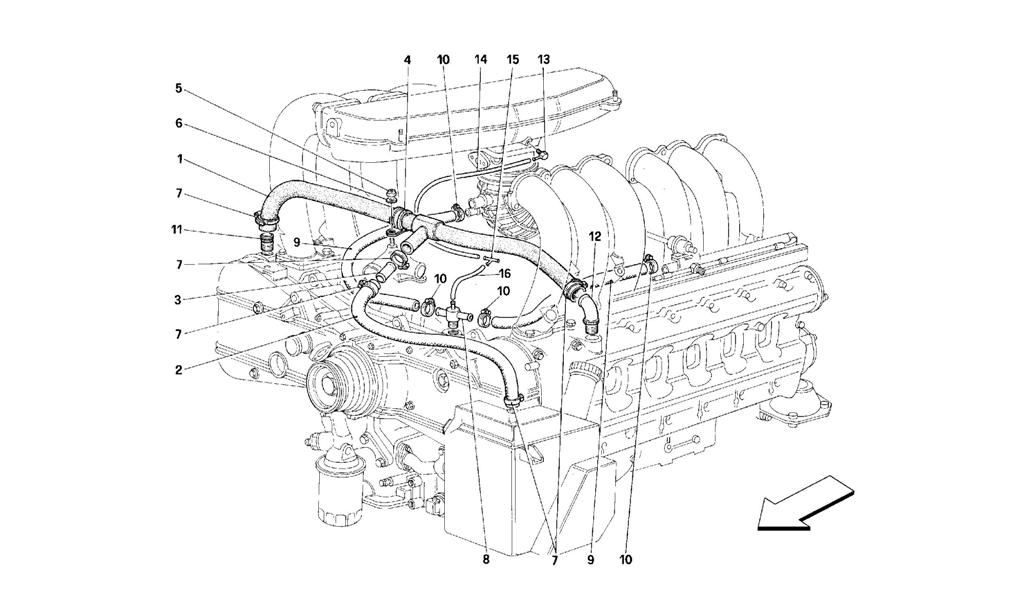

BLOW-BY
| Location | Part # | Quantity* | Description | Price | Add To Cart |
|---|---|---|---|---|---|
| 1 | 147962 | 1 | Cyl. heads connecting pipe | $187.45 | |
| 2 | 124716 | 1 | Rubber pipe | Unavailable | |
| 3 | 136612 | 1 | Hose | $16.95 | |
| 4 | 10442190 | 1 | Bracket | Unavailable | |
| 5 | 102741 | 1 | Nut | $0.90 | |
| 6 | 12601274 | 1 | Washer | $0.90 | |
| 7 | 13000490 | 5 | Clamp | Superseded | |
| 8 | 155020 | 1 | 3-way union | $101.26 | |
| 9 | 140360 | 2 | Pipe from 3-way to sleeve | Unavailable | |
| 10 | 12179690 | 4 | Clamp | Unavailable | |
| 11 | 102705 | 1 | Connection | $152.86 | |
| 12 | 147293 | 1 | Connection | $73.12 | |
| 13 | 128016 | 2 | Connection | $14.29 | |
| 14 | 115676 | 2 | Pipe from union on the air capacity to 3-way | $16.73 | |
| 15 | 121793 | 1 | 3-way union | Unavailable | |
| 16 | 115147 | 1 | Pipe from 3-way union to crankcase union | $5.68 |
* Quantity shown indicates the number of pieces used in the diagram.
