CLUTCH RELEASE CONTROL -NOT FOR RHD

Go to Split View

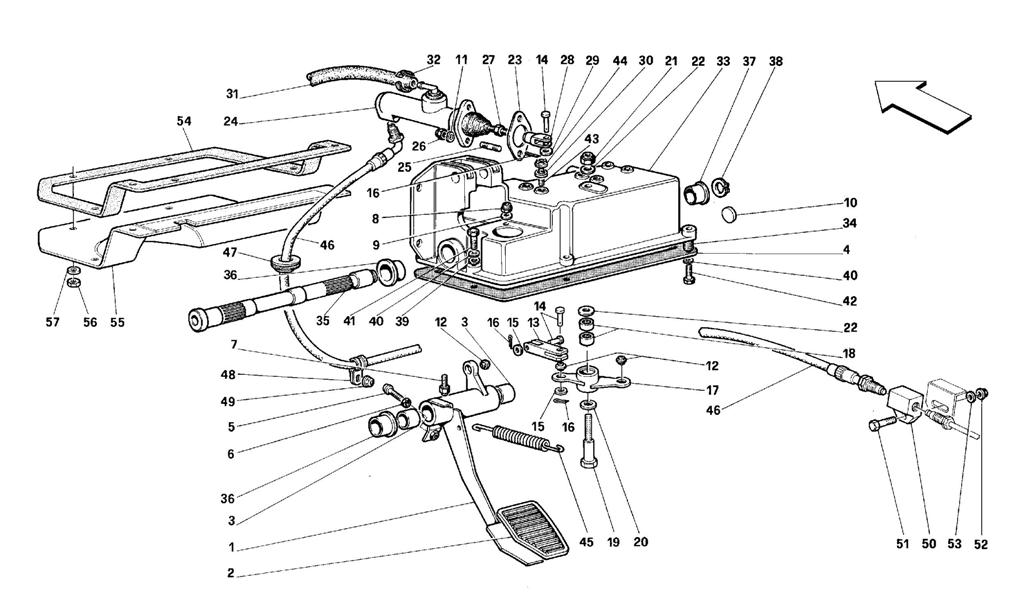

CLUTCH RELEASE CONTROL -NOT FOR RHD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 148837 *Qty: 1 Clutch pedal $1,071.09
Location: 2 Prev | Next Part: 106949 *Qty: 1 Pedal protection $9.71
Location: 3 Prev | Next Part: 103163 *Qty: 2 Bush $3.80
Location: 4 Prev | Next Part: 119331 *Qty: 1 Gasket $10.25
Location: 5 Prev | Next Part: 144011 *Qty: 1 Adjusting push rod $4.83
Location: 6 Prev | Next Part: 16102314 *Qty: 1 Nut Call
Location: 7 Prev | Next Part: 114825 *Qty: 1 Stop push rod $49.00
Location: 8 Prev | Next Part: 133989 *Qty: 1 Nut $0.90
Location: 9 Prev | Next Part: 12601374 *Qty: 1 Washer $0.90
Location: 10 Prev | Next Part: 10158801 *Qty: 1 Plug $1.57
Location: 11 Prev | Next Part: 12601374 *Qty: 2 Washer $0.90
Location: 12 Prev | Next Part: 109407 *Qty: 3 Ball joint $24.12
Location: 13 Prev | Next Part: 112172 *Qty: 1 Double fixing fork $126.31
Location: 14 Prev | Next Part: 10050814 *Qty: 3 Pin $2.93
Location: 15 Prev | Next Part: 10519624 *Qty: 2 Washer $0.90
Location: 16 Prev | Next Part: 10734201 *Qty: 3 Split pin Call
Location: 17 Prev | Next Part: 148821 *Qty: 1 Relay lever $137.97
Location: 18 Prev | Next Part: 115430 *Qty: 2 Roller bearing $16.06
Location: 19 Prev | Next Part: 114830 *Qty: 1 Pin for relay lever $14.17
Location: 20 Prev | Next Part: 112126 *Qty: 1 Washer $0.90
Location: 21 Prev | Next Part: 148020 *Qty: 1 Nut $4.84
Location: 22 Prev | Next Part: 113500 *Qty: 2 Washer $13.08
Location: 23 Prev | Next Part: 124469 *Qty: 1 Spacer $3.71
Location: 24 Prev | Next Part: 175211 *Qty: 1 Clutch master cylinder $300.72
Location: 25 Prev | Next Part: 13543524 *Qty: 2 Stud $0.90
Location: 26 Prev | Next Part: 16104121 *Qty: 2 Nut Superseded
Location: 27 Prev | Next Part: 16102314 *Qty: 1 Nut Call
Location: 28 Prev | Next Part: 10007871 *Qty: 1 Fork $17.31
Location: 29 Prev | Next Part: 12642701 *Qty: 1 Washer $0.90
Location: 30 Prev | Next Part: 12643724 *Qty: 4 Washer Superseded
Location: 31 Prev | Next Part: 155961 *Qty: 1 Feed pipe for clutch master cylinder $53.23
Location: 32 Prev | Next Part: 157934 *Qty: 2 Clamp Superseded
Location: 33 Prev | Next Part: 155180 *Qty: 1 Pedal support -Valid after stock exhaustion of 123247 $372.47
Location: 33 Prev | Next Part: 123247 *Qty: 1 Pedal support -Valid till stock exhaustion $418.93
Location: 34 Prev | Next Part: 124777 *Qty: 2 Threaded bush $17.95
Location: 35 Prev | Next Part: 112152 *Qty: 1 Pin on the pedal support $200.02
Location: 36 Prev | Next Part: 124687 *Qty: 2 Bush $6.59
Location: 37 Prev | Next Part: 124686 *Qty: 1 Bush $5.76
Location: 38 Prev | Next Part: 11066676 *Qty: 1 Spring ring $0.90
Location: 39 Prev | Next Part: 10519624 *Qty: 3 Washer $0.90
Location: 40 Prev | Next Part: 127496 *Qty: 5 Washer $0.90
Location: 41 Prev | Next Part: 16043834 *Qty: 3 Screw $0.90
Location: 42 Prev | Next Part: 16043424 *Qty: 2 Screw $0.90
Location: 43 Prev | Next Part: 11500124 *Qty: 4 Stud securing windshield wiper motor bracket $0.90
Location: 44 Prev | Next Part: 15896214 *Qty: 4 Nut Call
Location: 45 Prev | Next Part: 104895 *Qty: 1 Pedal return spring $8.01
Location: 46 Prev | Next Part: 149628 *Qty: 1 Clutch control tube $161.46
Location: 47 Prev | Next Part: 105369 *Qty: 1 Cable grommet $1.54
Location: 48 Prev | Next Part: 10441290 *Qty: 1 Bracket $0.90
Location: 49 Prev | Next Part: 15896214 *Qty: 1 Nut Call
Location: 50 Prev | Next Part: 148869 *Qty: 1 Union $50.26
Location: 51 Prev | Next Part: 10902724 *Qty: 1 Screw $0.90
Location: 52 Prev | Next Part: 15896214 *Qty: 1 Nut Call
Location: 53 Prev | Next Part: 12646601 *Qty: 1 Washer $0.90
Location: 54 Prev | Next Part: 118422 *Qty: 1 Gasket $20.17
Location: 55 Prev | Next Part: 118421 *Qty: 1 Cover $154.35
Location: 56 Prev | Next Part: 102948 *Qty: 5 Nut $0.90
Location: 57 Prev | Next Part: 12643724 *Qty: 5 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
