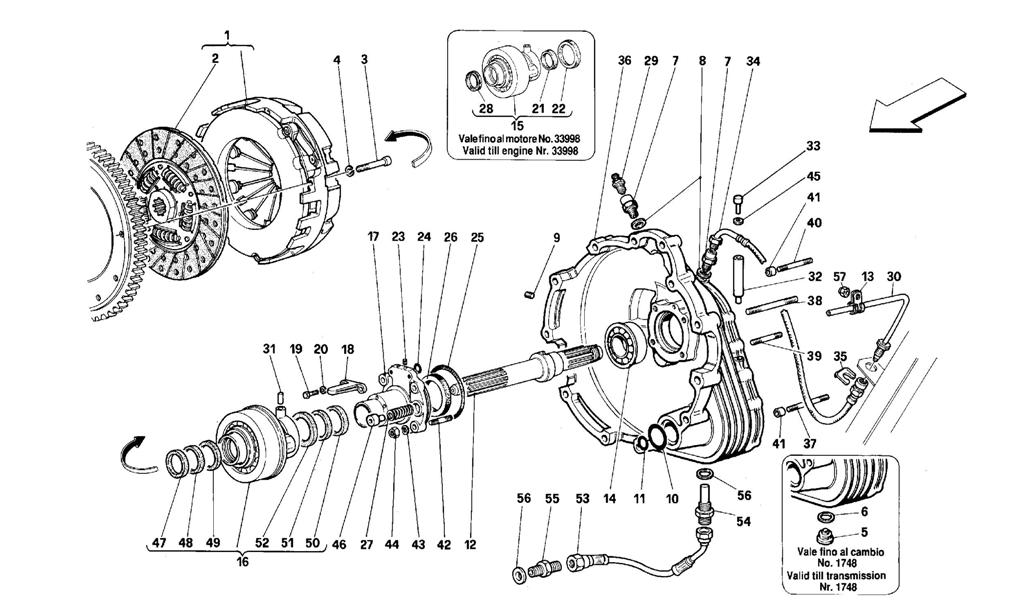

CLUTCH CONTROLS

Location Part # Quantity* Description Price Add To Cart
- 137721 1 Clutch housing complete -Valid till the transmission Nr. 1748 $1,479.06
- 153232 1 Clutch housing complete -Valid from transmission Nr. 1749 $2,592.92
1 194775 1 Clutch complete -Valid after stock exhaustion of 138959 $3,400.64
1 138960 1 Pressure plate -Not as spare parts - With clutch complete 138959 e 153724 Unavailable
2 194776 1 Clutch disc -Valid after stock exhaustion of 138961 $1,429.10
3 14305934 9 Screw $1.97
4 10569279 9 Washer Unavailable
5 104280 1 Oil drain plug -Valid till transmission Nr. 1748 $9.72
6 10263460 1 Gasket -Valid till transmission Nr. 1748 Superseded
7 148604 2 Union Unavailable
8 10257060 2 Gasket $0.90
9 14326150 1 Plug Unavailable
10 104756 1 Sealing ring $13.99
11 104747 1 Sealing ring $2.29
12 148252 1 Clutch shaft -Valid till engine nr. 31804 - For USA till engine nr. 32475 -Not for engines nr.: $844.80
12 151945 1 Clutch shaft -Valid from engine nr. 31805 - For USA from engine nr. 32476 and for engines nr.: $758.53
13 10440990 7 Bracket $1.97
14 103042 1 Bearing -Valid till engine nr. 31804 - For USA till engine nr. 32475 -Not for CH $442.22
14 155694 1 Bearing -Valid after stock exhaustion of 149774 $160.76
15 155022 1 Thrust bearing complete -Valid till engine Nr. 33998 Unavailable
16 154552 1 Thrust bearing complete -Valid from engine Nr. 33999 and fino al Nr. 36814 -Valid till stock exh Unavailable
16 CRB456/550 1 Thrust Bearing with Seals $756.00
16 177201 1 Thrust bearing complete -Valid from engine Nr. 36815 $1,276.85
17 154511 1 Bush supporting flange -Valid from engine Nr. 33999 $1,162.00
17 146547 1 Bush supporting flange -Valid till engine Nr. 33998 $1,925.98
18 151693 1 Plate -Valid from engine Nr. 36815 $60.00
18 146548 1 Plate -Valid till engine Nr. 36814 $46.53
19 10977521 2 Screw $0.90
20 127493 2 Washer $0.90
21 150289 1 Sealing ring -Valid till engine Nr. 33998 Unavailable
22 150288 1 Sealing ring -Valid till engine Nr. 33998 $58.67
23 65928500 2 Plug $31.95
24 121813 2 Sealing ring $0.90
25 121814 1 Sealing ring $15.51
26 138680 1 Sealing ring $50.02
27 154804 2 Spring -Valid till engine Nr. 34327 $29.62
27 155207 2 Spring -Valid from engine Nr. 34328 $5.00
28 146940 1 Sealing ring -Valid till engine Nr. 33998 $41.86
29 121699 1 Bleeder screw $59.36
30 147973 1 Pipe from 2 way union to flexible $99.29
31 13904970 1 Pin -Valid from engine Nr. 36815 Unavailable
31 14163970 1 Pin -Valid till engine Nr. 36814 $0.90
32 109789 1 Extension for breather $59.13
33 13414691 1 Breather $18.25
34 124840 1 Flexible hose for clutch hydraulic control Unavailable
35 110810 1 Pipe securing plate Unavailable
36 146617 1 Clutch housing -Not as spare parts -With assembly 137721 -Valid till the transmission Nr. 1748 Unavailable
36 153701 1 Clutch housing -Not as spare parts -With assembly 153232 -Valid from transmission Nr. 1749 Unavailable
37 13544321 1 Stud Superseded
38 13544524 3 Stud $56.47
39 13544024 4 Stud $0.95
40 13544224 2 Stud $10.39
41 102704 2 Dowel $4.24
42 13516624 4 Stud Unavailable
43 127496 4 Washer $0.90
44 133989 4 Nut $0.90
45 13415400 1 Oil deflector disc Unavailable
46 155206 2 Spacer -Valid till engine Nr. 34327 $4.24
47 154550 1 Sealing ring -Valid from engine Nr. 33999 $28.91
48 154504 1 Sealing ring -Valid from engine Nr. 33999 $7.90
49 154505 1 Sealing ring -Valid from engine Nr. 33999 $14.84
50 154551 1 Sealing ring -Valid from engine Nr. 33999 $31.04
51 154507 1 Sealing ring -Valid from engine Nr. 33999 $4.45
52 154508 1 Sealing ring -Valid from engine Nr. 33999 $46.57
53 153759 1 Oil connection pipe -Valid from transmission Nr. 1749 Unavailable
54 153708 1 Union -Valid from transmission Nr. 1749 $105.91
55 153905 1 Union -Valid from transmission Nr. 1749 $80.14
56 153722 2 Gasket -Valid from transmission Nr. 1749 $11.14
57 102741 3 Nut $0.90

* Quantity shown indicates the number of pieces used in the diagram.
