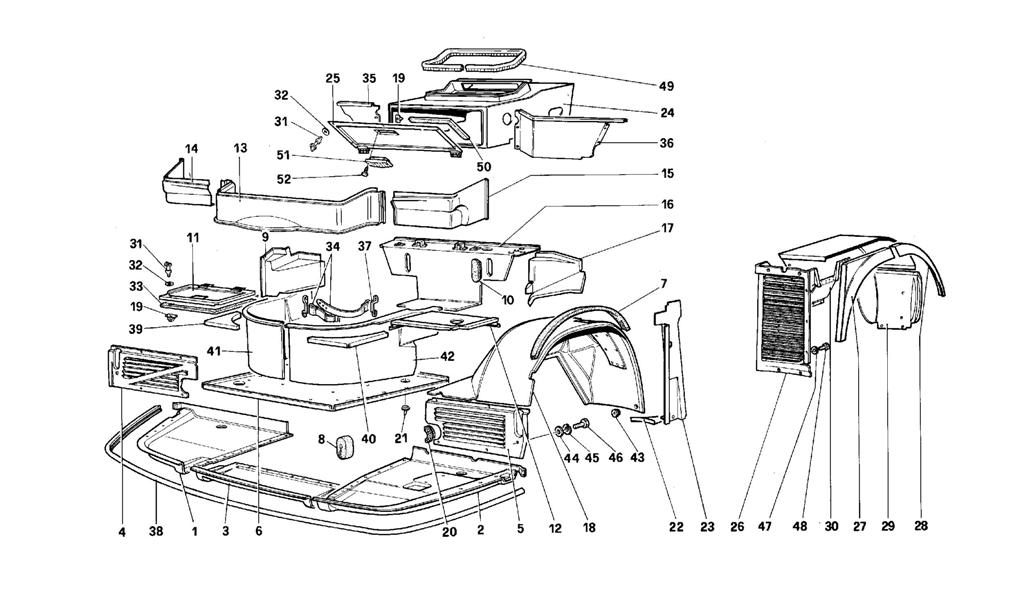

BODY - INTERNAL COMPONENTS

Go to Split View

BODY - INTERNAL COMPONENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63084600 *Qty: 1 R.H. side guard for underbody $575.33
Location: 2 Prev | Next Part: 63084500 *Qty: 1 L.H. side guard for underbody Unavailable
Location: 3 Prev | Next Part: 63084200 *Qty: 1 R.H. front central guard for underbody Unavailable
Location: 4 Prev | Next Part: 63926700 *Qty: 1 Inspection door for R.H. condenser -Valid after depletion of 63071000 $93.33
Location: 5 Prev | Next Part: 63926800 *Qty: 1 Inspection door for L.H. condenser -Valid after depletion of 63071100 Unavailable
Location: 6 Prev | Next Part: 63085100 *Qty: 1 Trunk bottom plate Unavailable
Location: 7 Prev | Next Part: 62926100 *Qty: 2 Wheelhouse gasket Unavailable
Location: 8 Prev | Next Part: 63393900 *Qty: 1 Sealant Unavailable
Location: 9 Prev | Next Part: 61479400 *Qty: 1 R.H. angle piece for wheel housing $430.68
Location: 9 Prev | Next Part: 61479500 *Qty: 1 L.H. angle piece for wheel housing $430.68
Location: 10 Prev | Next Part: 62845000 *Qty: 2 Plug $4.90
Location: 11 Prev | Next Part: 61479800 *Qty: 1 Battery compartment lid $967.18
Location: 12 Prev | Next Part: 63095900 *Qty: 1 Cover $226.54
Location: 13 Prev | Next Part: 63084800 *Qty: 1 Central movable shieldpanel $1,728.92
Location: 14 Prev | Next Part: 61480100 *Qty: 1 R.H. movable shieldpanel $936.79
Location: 15 Prev | Next Part: 61480200 *Qty: 1 L.H. movable shieldpanel $1,018.91
Location: 16 Prev | Next Part: 63095800 *Qty: 1 Rear luggage compartment panel -Not for RHD $127.38
Location: 16 Prev | Next Part: 63109800 *Qty: 1 Rear luggage compartment panel -Valid for RHD $410.44
Location: 17 Prev | Next Part: 61480400 *Qty: 1 L.H. front panel $115.02
Location: 17 Prev | Next Part: 63461700 *Qty: 1 R.H. front panel -Not for RHD $227.13
Location: 17 Prev | Next Part: 63462000 *Qty: 1 R.H. front panel -Valid for RHD $230.61
Location: 18 Prev | Next Part: 63090000 *Qty: 1 R.H. front wheelhouse assembly $693.88
Location: 18 Prev | Next Part: 63090100 *Qty: 1 L.H. front wheelhouse assembly $853.79
Location: 19 Prev | Next Part: 61529200 *Qty: 4 Clip $4.61
Location: 20 Prev | Next Part: 63404500 *Qty: 2 Gasket -Valid for 63071000 - 63071100 $7.20
Location: 20 Prev | Next Part: 62987700 *Qty: 2 Gasket -Valid for 63926800 - 63926700 $4.71
Location: 21 Prev | Next Part: 60731300 *Qty: 4 Plug $3.81
Location: 22 Prev | Next Part: 61481200 *Qty: 1 R.H. cover $12.72
Location: 22 Prev | Next Part: 61481300 *Qty: 1 L.H. cover $12.96
Location: 23 Prev | Next Part: 61481400 *Qty: 1 R.H. door inner pillar $49.69
Location: 23 Prev | Next Part: 61481500 *Qty: 1 L.H. door inner pillar $49.69
Location: 25 Prev | Next Part: 61481700 *Qty: 1 Electric board cover -Valid for RHD $46.59
Location: 25 Prev | Next Part: 63952700 *Qty: 1 Electric board cover -Not for RHD $58.74
Location: 26 Prev | Next Part: 63090400 *Qty: 1 Front section of R.H. rear wheelhouse Unavailable
Location: 26 Prev | Next Part: 63090500 *Qty: 1 Front section of L.H. rear wheelhouse Unavailable
Location: 27 Prev | Next Part: 63090600 *Qty: 1 Front side section of R.H. rear wheelhouse $73.11
Location: 27 Prev | Next Part: 63090700 *Qty: 1 Front side section of L.H. rear wheelhouse $73.11
Location: 28 Prev | Next Part: 61482200 *Qty: 1 Rear side section of R.H. rear wheelhouse $66.45
Location: 28 Prev | Next Part: 61482300 *Qty: 1 Rear side section of L.H. rear wheelhouse $66.45
Location: 29 Prev | Next Part: 63093700 *Qty: 1 Rear section of L.H. rear wheelhouse $125.53
Location: 29 Prev | Next Part: 63093600 *Qty: 1 Rear section of R.H. rear wheelhouse $130.67
Location: 30 Prev | Next Part: 63090200 *Qty: 1 Upper section of R.H. rear wheelhouse $171.53
Location: 30 Prev | Next Part: 63090300 *Qty: 1 Upper section of L.H. rear wheelhouse $171.53
Location: 31 Prev | Next Part: 61530300 *Qty: 4 Pin Unavailable
Location: 32 Prev | Next Part: 61529400 *Qty: 4 Gasket Unavailable
Location: 33 Prev | Next Part: 61538600 *Qty: 1 Gasket $6.00
Location: 34 Prev | Next Part: 63561400 *Qty: 1 Belt $67.55
Location: 35 Prev | Next Part: 61546100 *Qty: 1 R.H. protection -Not for RHD- $68.12
Location: 35 Prev | Next Part: 63469190 *Qty: 1 R.H. protection -Valid for RHD- $76.77
Location: 36 Prev | Next Part: 61546400 *Qty: 1 L.H. protection -Valid for RHD- $66.64
Location: 36 Prev | Next Part: 63414400 *Qty: 1 L.H. protection -Not for RHD- $198.76
Location: 37 Prev | Next Part: 61569200 *Qty: 2 Bracket for retaining belt Unavailable
Location: 38 Prev | Next Part: 63087100 *Qty: 1 Gasket Unavailable
Location: 39 Prev | Next Part: 63084300 *Qty: 1 R.H. upper seal $32.25
Location: 40 Prev | Next Part: 63084400 *Qty: 1 L.H. upper seal $46.59
Location: 41 Prev | Next Part: 63084900 *Qty: 1 R.H. vertical shield $542.05
Location: 42 Prev | Next Part: 63085000 *Qty: 1 L.H. vertical shield Unavailable
Location: 43 Prev | Next Part: 14506787 *Qty: 2 Plug -Valid after depletion of 62773100 Unavailable
Location: 43 Prev | Next Part: 62773100 *Qty: 2 Plug -Valid till depletion Unavailable
Location: 44 Prev | Next Part: 12643778 *Qty: 10 Washer $0.90
Location: 45 Prev | Next Part: 106850 *Qty: 10 Washer Superseded
Location: 46 Prev | Next Part: 10902387 *Qty: 10 Screw $0.94
Location: 47 Prev | Next Part: 12643770 *Qty: 18 Washer $0.90
Location: 48 Prev | Next Part: 10902024 *Qty: 18 Screw $0.90
Location: 49 Prev | Next Part: 63449700 *Qty: 1 Gasket $9.04
Location: 50 Prev | Next Part: 62765800 *Qty: 1 Silent-block $1.48
Location: 51 Prev | Next Part: 61647200 *Qty: 1 Lamp $82.41
Location: 52 Prev | Next Part: 15908678 *Qty: 2 Screw $0.90

* Quantity shown indicates the number of pieces used in the diagram.
