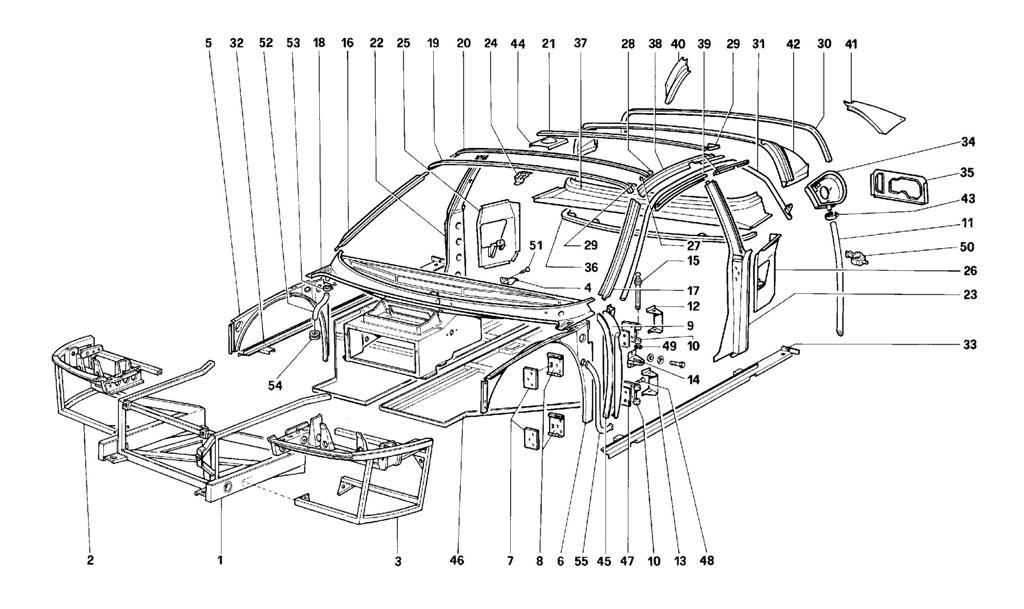

BODY - INTERNAL COMPONENTS

Go to Split View

BODY - INTERNAL COMPONENTS

Location Part # Quantity* Description Price Add To Cart
1 144654 1 Front central frame Unavailable
2 144642 1 R.H. front frame $2,244.61
3 144643 1 L.H. front frame Unavailable
4 61483100 1 Clip $40.30
5 63037300 1 R.H. front inner body side $617.91
6 63037400 1 L.H. front inner body side $648.81
7 61483400 4 Nut screw plate $16.02
8 61483500 4 Seat nut screw plate $7.51
9 63455000 1 R.H. front mudguard strip -Not for USA, CDN, SA, J $343.07
9 63455100 1 L.H. front mudguard strip -Not for USA, CDN, SA, J $343.07
9 63046300 1 R.H. front mudguard strip -Valid for USA, CDN, SA, J $255.66
9 63046400 1 L.H. front mudguard strip -Valid for USA, CDN, SA, J $255.66
10 63032200 4 Hinge for door $82.72
11 123391 1 Hose $6.29
12 61484000 2 Upper stiffening $10.29
13 61484100 2 Lower stiffening $11.10
14 61484200 2 Bracket $11.92
15 63026200 4 Pin for door hinge $62.40
16 61484400 1 R.H. pillar $63.09
17 61484500 1 L.H. pillar $60.33
18 62926400 1 Windshield curved element -With air conditioning case -Not for RHD Unavailable
18 63684700 1 Windshield curved element -With air conditioning case -Valid for RHD $5,160.02
19 61484700 1 Front rib $73.12
20 61484800 1 Central rib $73.12
21 61488100 1 Rear rib $37.19
22 61484900 1 R.H. rear door pillar $299.43
23 61485000 1 L.H. rear door pillar $299.43
24 61485200 1 Bracket $26.69
25 62926200 1 R.H. belt retractor housing $38.63
26 62926300 1 L.H. belt retractor housing $29.64
27 61485500 2 Front stiffening for central rib $32.24
28 61485600 2 Rear stiffening for central rib $25.60
29 61485600 4 Stiffening for rear rib $25.60
30 61488000 1 Rear window plate $128.46
31 61487800 1 R.H. upper frame for passenger comp. $240.80
31 61487900 1 L.H. upper frame for passenger comp. $252.84
32 63461400 1 Inner connection plate R.H. complete -Valid for CH $547.53
32 61558300 1 Inner connection plate R.H. complete -Not for CH $593.55
33 63461500 1 Inner connection plate L.H. complete -Valid for CH $275.96
33 61558400 1 Inner connection plate L.H. complete -Not for CH $623.23
34 61486400 1 Fuel filler seat $61.61
35 61486500 1 R.H. light seat $551.86
35 61486600 1 L.H. light seat $551.86
36 61486700 1 Frame $74.34
37 61486800 1 Rear window plate $138.73
38 61486900 1 R.H. roof side rail $89.75
38 61487000 1 L.H. roof side rail $89.75
39 61487100 1 Upper rail for R.H. door opening $68.86
39 61487200 1 Upper rail for L.H. door opening $68.86
40 61487300 1 R.H. rear pillar $50.99
41 61487400 1 L.H. rear pillar $56.66
42 61487500 1 Rear window framework $219.48
43 12179690 1 Clamp Unavailable
44 61485100 1 Stiffening $30.94
45 61580400 1 R.H. aluminium $205.40
45 61580500 1 L.H. aluminium $215.67
46 145530 1 Flat bed complete -Not for RHD- $6,047.82
46 150303 1 Flat bed complete -Valid for RHD- $6,504.32
47 61580200 2 Zincfoil for R.H. door hinge $5.99
47 61580300 2 Zincfoil for L.H. door hinge $3.63
48 50206408 12 Screw Unavailable
49 11087974 4 Circlip $0.90
50 157385 2 Spring Unavailable
51 15687801 3 Screw Unavailable
52 63052000 2 Water drain pipe $2.60
53 13000190 2 Clamp $0.90
54 52770500 2 Pipe grommet -Not as spare par now -Replaced by 62770500 Unavailable
54 62770500 2 Cable grommet $2.35
55 63423000 1 Cables pipe -Valid for RHD $192.61
55 64545200 1 Cables pipe -Not for RHD $94.64

* Quantity shown indicates the number of pieces used in the diagram.
